JE Pistons Engine Piston Kit - 247952

Name: JE Pistons Engine Piston Kit - 247952
SKU: 247952
Price: 309.99 USD
Availability: OutOfStock

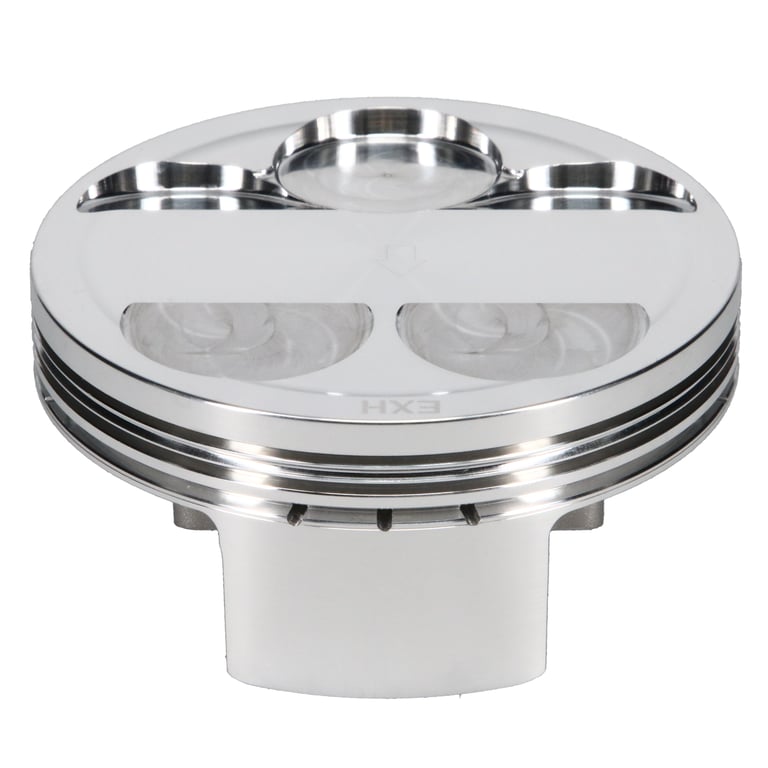

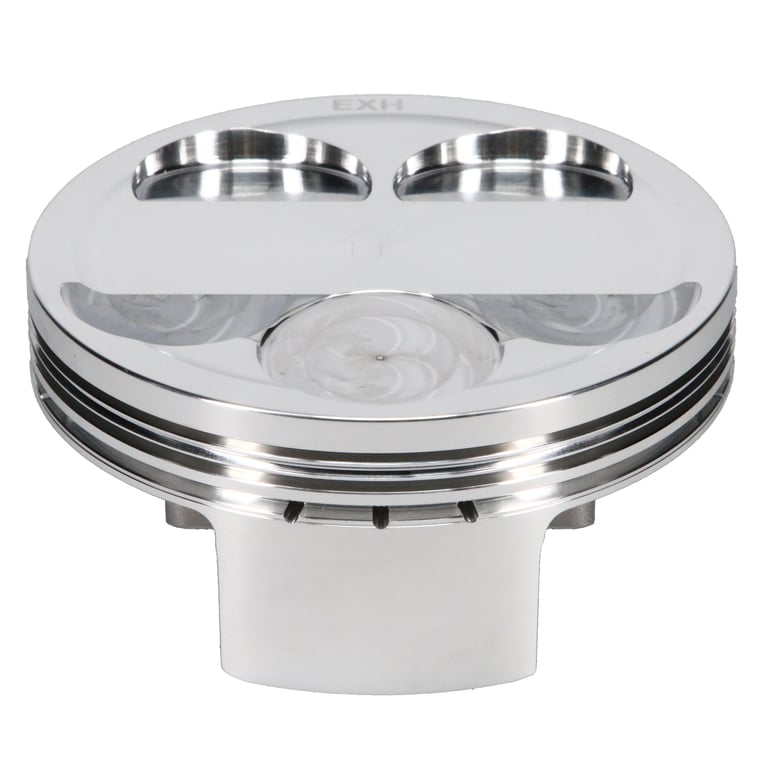

Piston Set, 2618, Inv Dome/Dish, 3.858 Bore, 0.991 CD, 0.787 Pin, Set of 1.

Manufacturer: JE Pistons

Manufacturer part number: 247952

$309.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for ATV engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From motocross to dirt track and everything in between, JE Pistons? performance is proven with every handful of throttle and wave of the checkered flag. Equip your quad with the best in forged pistons.

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	YFZ 450
Bore Diameter	98.00
Compression Ratio Actual	13.00:1
Piston Head Type	Dish
Piston Volume	23.56
Material	2618
Forging Type	FSR
Piston Average Weight	316
Ring Set Included	Yes
Top Compression Ring Thickness	0.0480
Second Compression Ring Thickness	0.0600
Oil Ring Thickness	0.0795
Wrist Pin Material	9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter	0.787
Wrist Pin Length	2.050
Wrist Pin Wall Thickness	0.160
Product Type	Engine Piston Kit
Category Hierarchy	Powersports>Pistons>Piston Kits>ATV
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	98.00 MM
EBAY Category ID	177976
Country of Origin	US
Condition	New
