JE Pistons Engine Piston Kit - 258027

Name: JE Pistons Engine Piston Kit - 258027
SKU: 258027
Price: 976.56 USD
Availability: OutOfStock

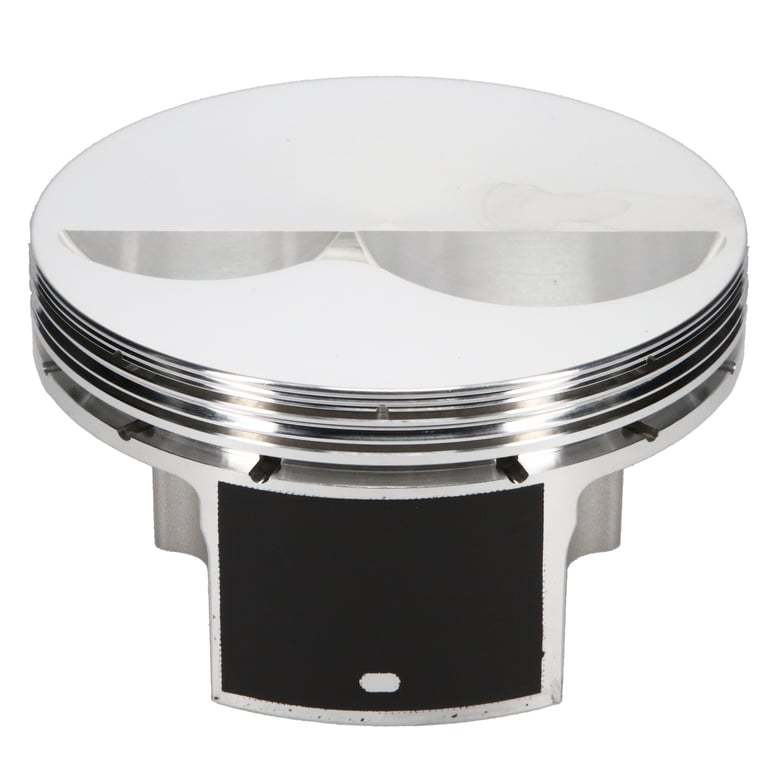

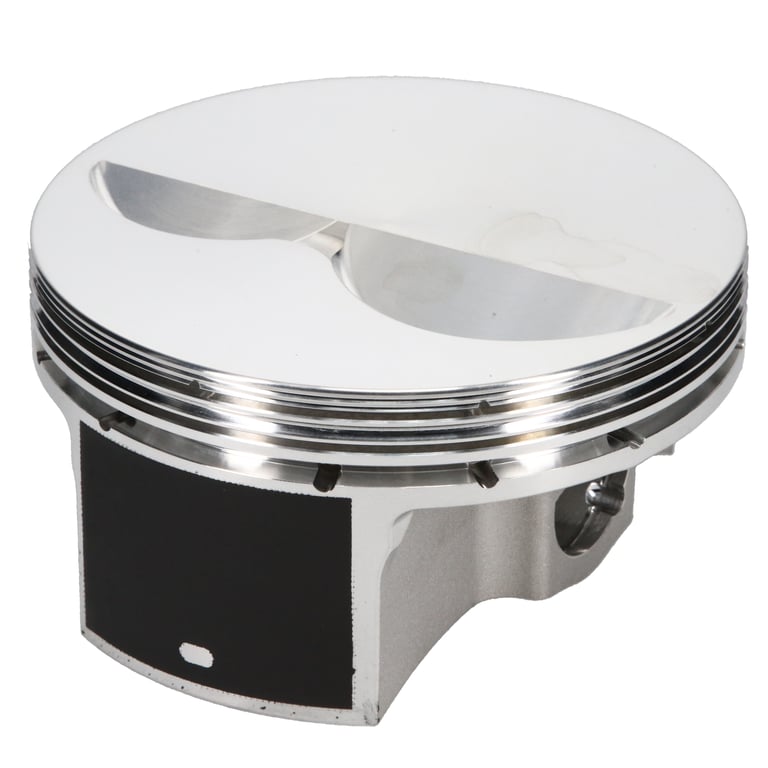

Piston Set, 2618, Flat Top, 4.045 Bore, 1.550 CD, 0.927 Pin, Set of 8.

Manufacturer: JE Pistons

Manufacturer part number: 258027

$976.56

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Chevrolet Small Block 350

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name	Attribute value
Ring Set Included	No
Top Compression Ring Thickness	0.0436
Second Compression Ring Thickness	0.0440
Oil Ring Thickness	0.119
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.350
Wrist Pin Wall Thickness	0.150
Product Type	Engine Piston Kit
Category Hierarchy	Auto>All Piston Kits
Piston Series	JE Pistons
Cylinder Head	CHEVROLET 23 DEG 20/30
Bore Diameter	4.045
Piston Head Type	Flat
Compression Height	1.550
Piston Volume	-4.10
Material	2618
Piston Quantity	8
Forging Type	FSR
Piston Average Weight	391
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.045 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
