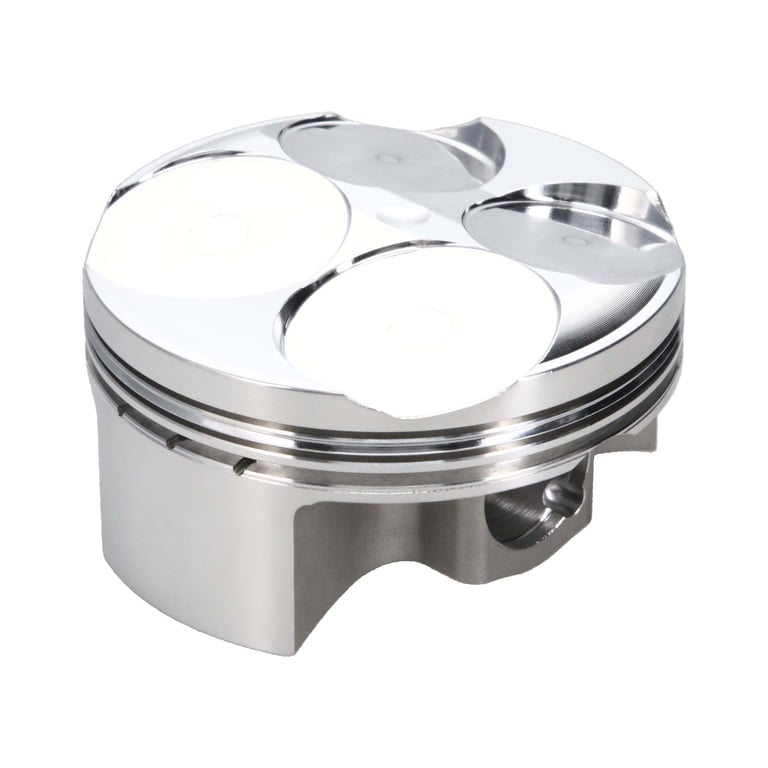

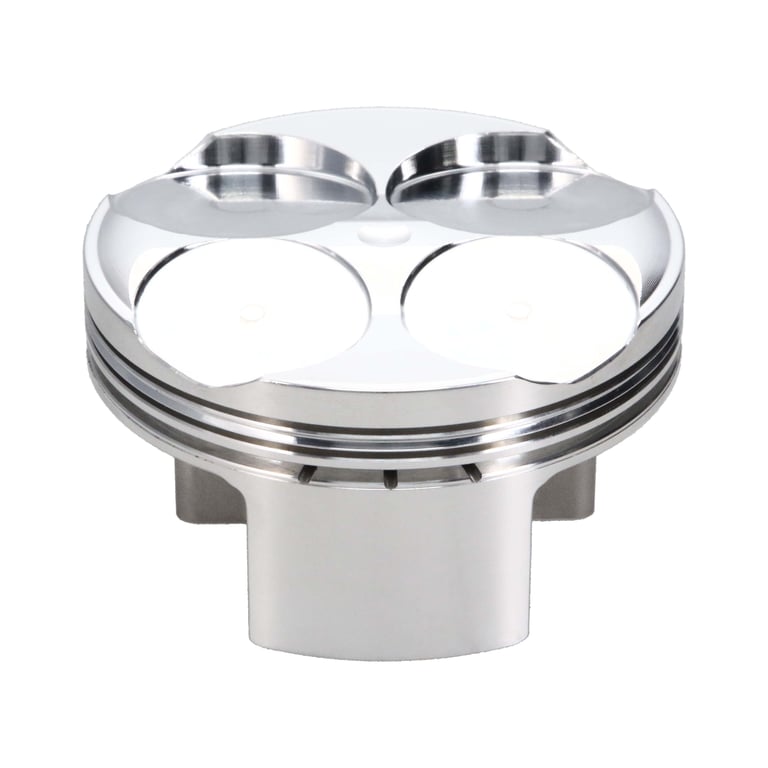

JE Pistons Engine Piston Kit - 261533

Name: JE Pistons Engine Piston Kit - 261533
SKU: 261533
Price: 1139.99 USD
Availability: OutOfStock

Piston Set, 2618, Dome, 3.268 Bore, 0.986 CD, 0.827 Pin, Set of 4.

Manufacturer: JE Pistons

Manufacturer part number: 261533

$1,139.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for sport bike and other motorcycle engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. From the road course to the drag strip everything in between, JE Pistons? performance is proven with every handful of throttle and wave of the checkered flag. Equip your bike with the best in forged pistons.

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	00/01 ZX 12
Bore Diameter	83.00
Compression Ratio Actual	13.00:1
Piston Head Type	Dome
Piston Volume	-1.50
Material	2618
Forging Type	FSR
Piston Average Weight	228
Ring Set Included	Yes
Top Compression Ring Thickness	0.0400
Second Compression Ring Thickness	0.0400
Wrist Pin Outer Diameter	0.827
Wrist Pin Length	2.050
Wrist Pin Wall Thickness	0.120
Product Type	Engine Piston Kit
Wrist Pin Material	9310 Nickel Carbon Steel Alloy
Oil Ring Thickness	0.0795
Category Hierarchy	Powersports>Pistons>Piston Kits>Street
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	83.00 MM
EBAY Category ID	177976
Country of Origin	US
Condition	New
