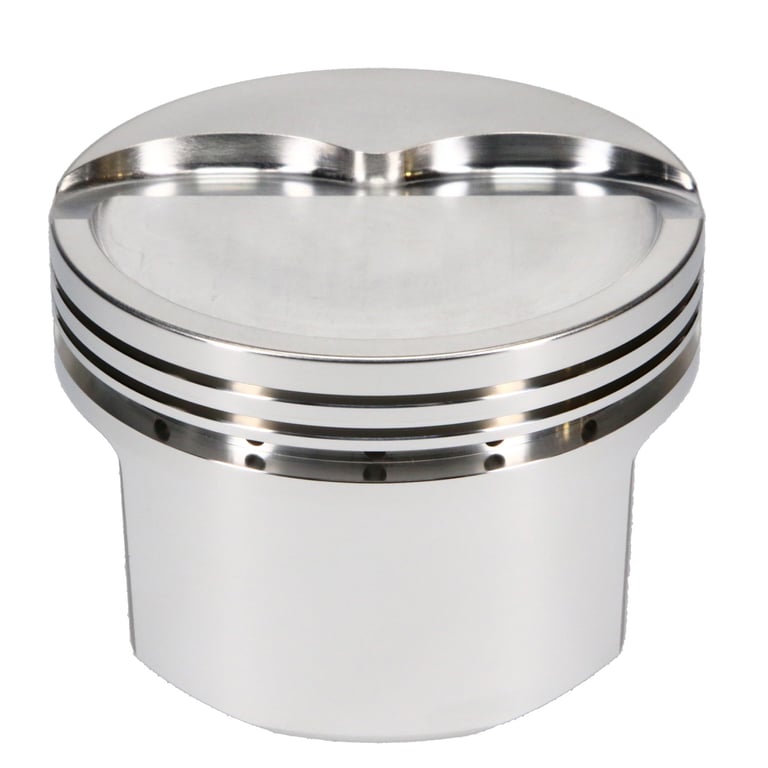

JE Pistons Engine Piston Kit - 271152

Piston Set, 4032, Inv Dome/Dish, 4.155 Bore, 1.670 CD, 0.975 Pin, Set of 8.
Manufacturer: JE Pistons
Manufacturer part number: 271152
$699.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.

Application: Ford 428 FE

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name Attribute value
Piston Series SRP
Category Hierarchy Auto>All Piston Kits
Product Type Engine Piston Kit
Wrist Pin Wall Thickness 0.160
Wrist Pin Length 2.750
Wrist Pin Outer Diameter 0.975
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Oil Ring Thickness 0.188
Second Compression Ring Thickness 0.0640
Top Compression Ring Thickness 0.0640
Ring Set Included No
Piston Average Weight 518
Forging Type FSR
Material 4032
Piston Volume -22.00
Compression Height 1.670
Piston Head Type Dish
Bore Diameter 4.155
Cylinder Head EDEL 6007/08
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Prop 65 - Short Label prop65warninglabel.jpg
Bore Diameter - Web 4.155 IN
EBAY Category ID 33623
Country of Origin US
Condition New
