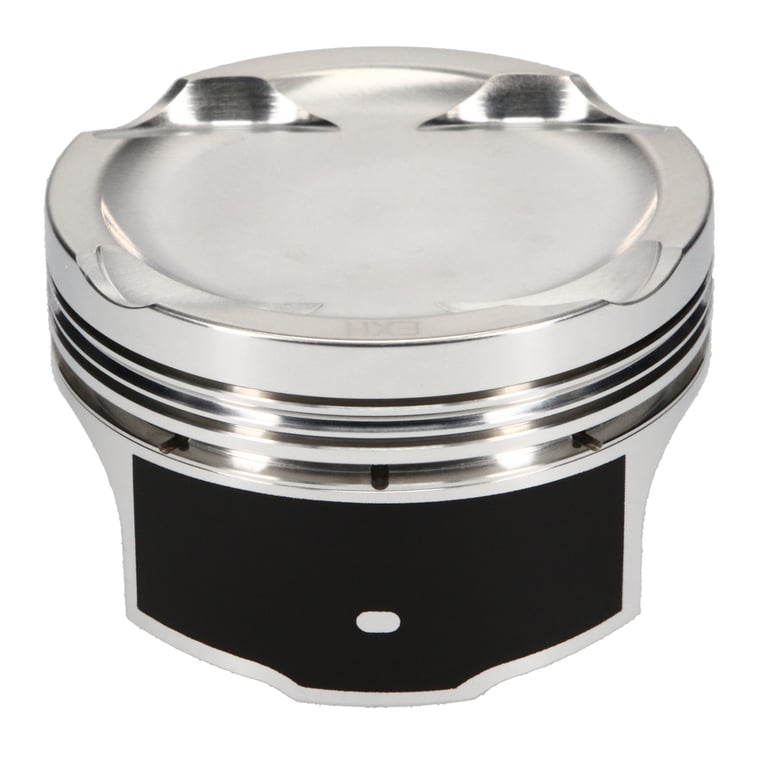

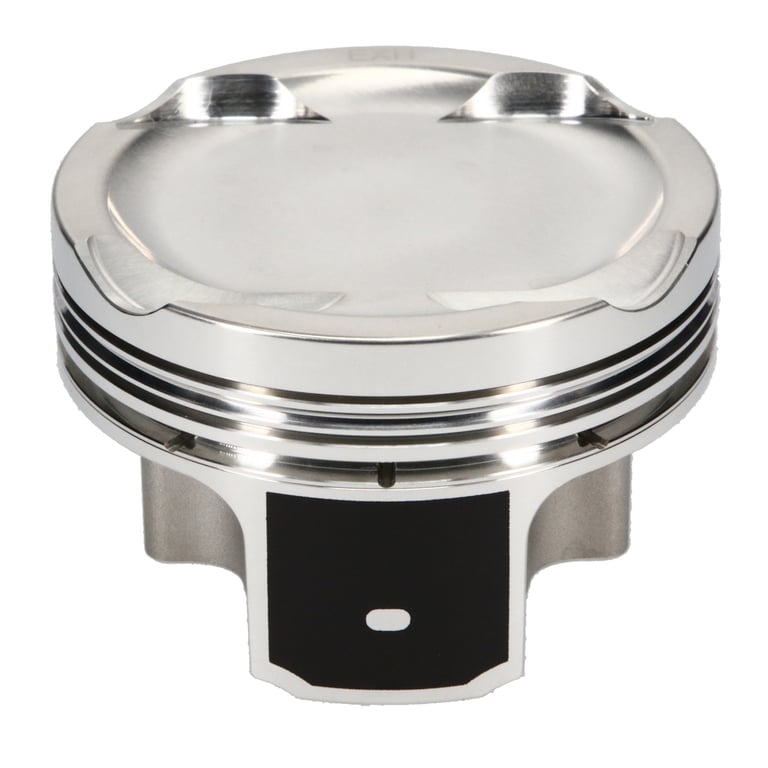

JE Pistons Engine Piston Kit - 296905

Piston Set, 2618, Inv Dome/Dish, 3.406 Bore, 1.313 CD, 0.905 Pin, Set of 4.
Manufacturer: JE Pistons
Manufacturer part number: 296905
$899.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Mitsubishi 4B11T EVO X 07-15

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name Attribute value
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter 0.905
Wrist Pin Length 2.250
Wrist Pin Wall Thickness 0.150
Product Type Engine Piston Kit
Category Hierarchy Auto>All Piston Kits
Piston Series JE Pistons
Cylinder Head 4B11T
Bore Diameter 86.50
Piston Head Type Dish
Compression Height 1.313
Piston Volume 6.20
Material 2618
Piston Quantity 4
Forging Type FSR
Piston Average Weight 326
Ring Set Included Yes
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Prop 65 - Short Label prop65warninglabel.jpg
Bore Diameter - Web 86.50 MM
EBAY Category ID 33623
Country of Origin US
Condition New
