JE Pistons Engine Piston Kit - 302953

Name: JE Pistons Engine Piston Kit - 302953
SKU: 302953
Price: 849.99 USD
Availability: OutOfStock

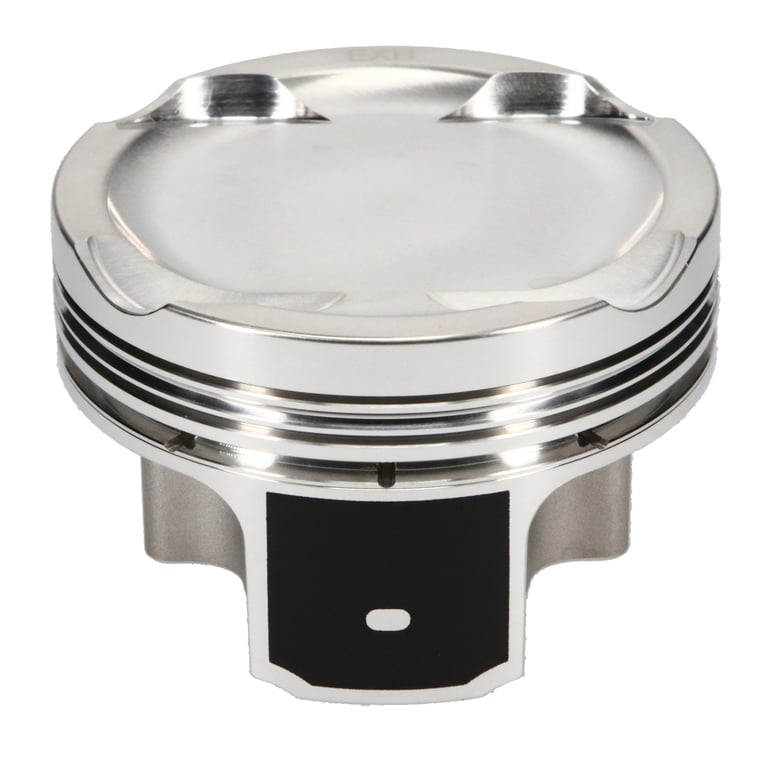

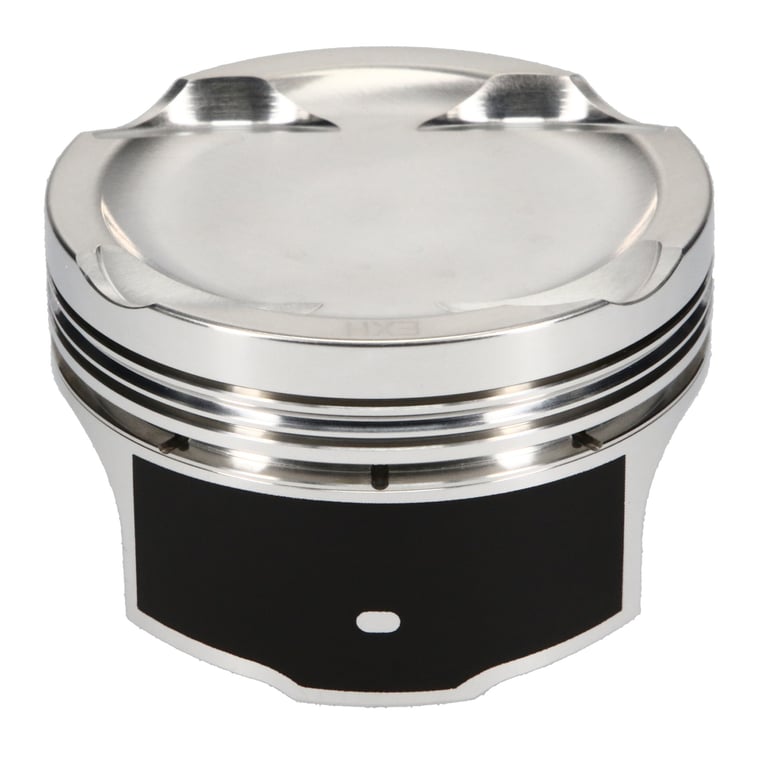

Piston Set, 2618, Flat Top, 3.386 Bore, 1.367 CD, 0.866 Pin, Set of 4.

Manufacturer: JE Pistons

Manufacturer part number: 302953

$849.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Mitsubishi 4G63T Eclipse 93-99

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name	Attribute value
Material	2618
Piston Quantity	4
Forging Type	FSR
Piston Volume	-2.10
Piston Average Weight	324
Ring Set Included	Yes
Top Compression Ring Thickness	0.0400
Second Compression Ring Thickness	0.0480
Oil Ring Thickness	0.111
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.866
Wrist Pin Length	2.250
Wrist Pin Wall Thickness	0.150
Engine Detail	4G63 1993-99 Eclipse / Talon / 22 mm Pin
Product Type	Engine Piston Kit
Category Hierarchy	Auto>All Piston Kits
Piston Head Type	Flat
Compression Height	1.367
Piston Series	JE Pistons
Cylinder Head	4G63
Bore Diameter	86.00
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	86.00 MM
EBAY Category ID	33623
Country of Origin	US
Condition	New
