JE Pistons Engine Piston Kit - 314346

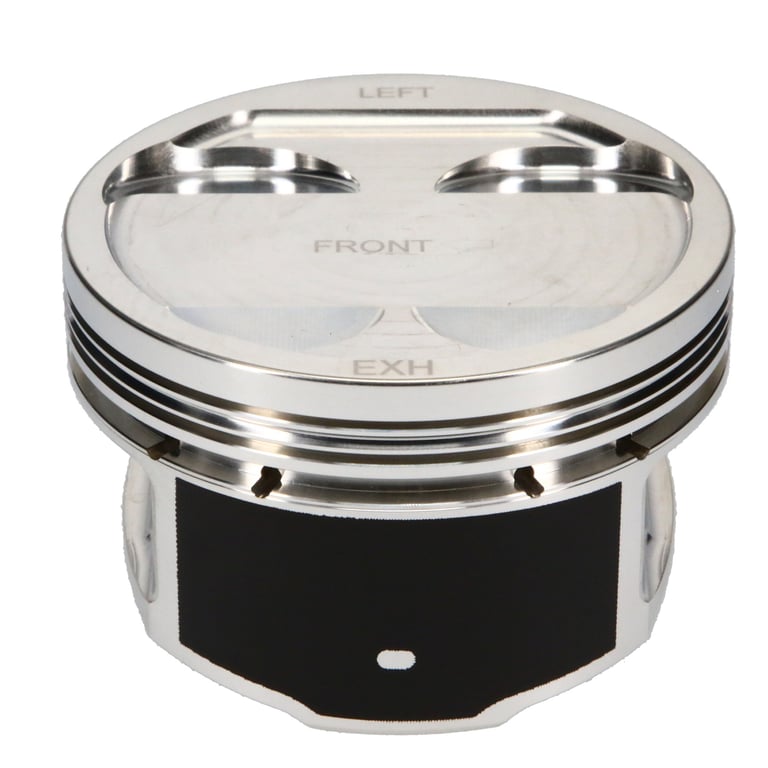

Piston Set, 2618, Dome, 3.937 Bore, 1.162 CD, 0.905 Pin, Set of 4.
Manufacturer: JE Pistons
Manufacturer part number: 314346
$899.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Subaru EJ25 99-04 SOHC

Note: JE designs are specifically engineered for extreme upplications up to, and including, professional competition

Products specifications

Attribute name Attribute value
Piston Series JE Pistons
Cylinder Head EJ25 SOHC
Bore Diameter 100.00
Piston Head Type Dome
Compression Height 1.162
Piston Volume 2.50
Material 2618
Piston Quantity 4
Forging Type Round
Piston Average Weight 412
Ring Set Included Yes
Top Compression Ring Thickness 0.0480
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.0995
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter 0.905
Wrist Pin Length 2.250
Wrist Pin Wall Thickness 0.180
Product Type Engine Piston Kit
Category Hierarchy Auto>All Piston Kits
Prop 65 - Short Label prop65warninglabel.jpg
Bore Diameter - Web 100.00 MM
EBAY Category ID 33623
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Country of Origin US
Condition New
