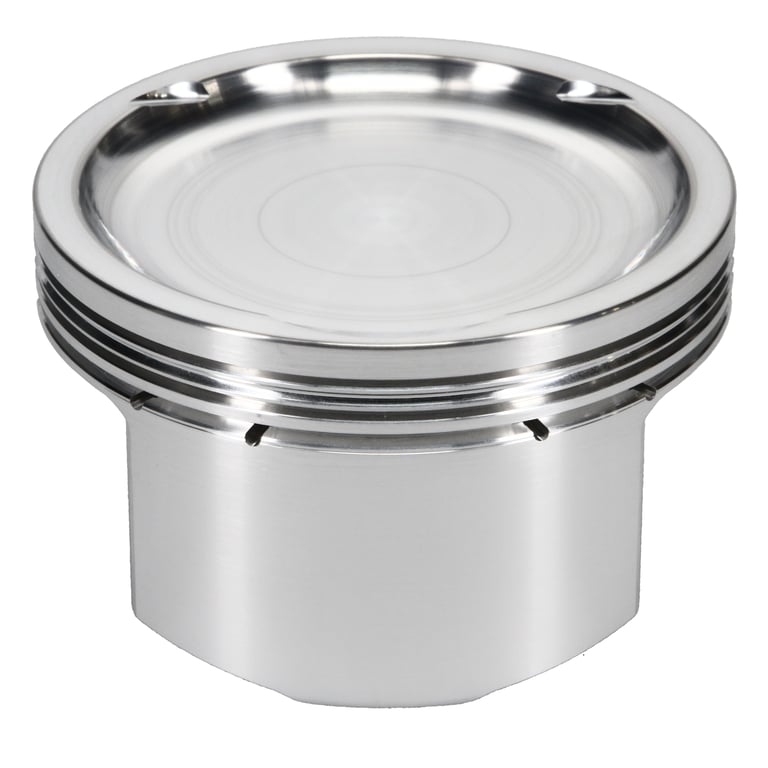

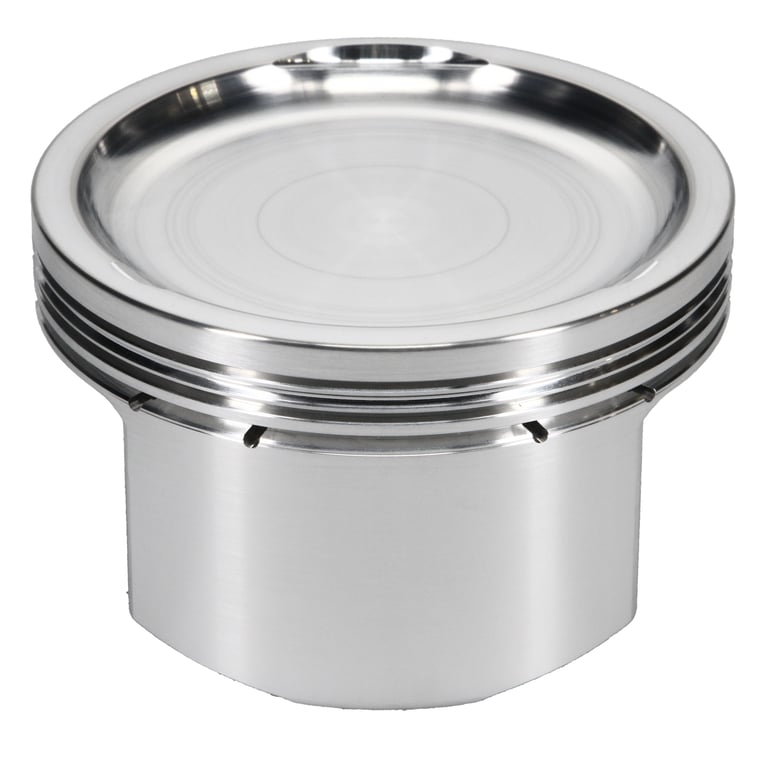

JE Pistons Engine Piston Kit - 317226

Name: JE Pistons Engine Piston Kit - 317226
SKU: 317226
Price: 519.99 USD
Availability: OutOfStock

Piston Set, 2618, Dome, 3.976 Bore, 1.219 CD, 0.945 Pin, Set of 2.

Manufacturer: JE Pistons

Manufacturer part number: 317226

$519.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for sport bike and other motorcycle engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. From the road course to the drag strip everything in between, JE Pistons? performance is proven with every handful of throttle and wave of the checkered flag. Equip your bike with the best in forged pistons.

Products specifications

Attribute name	Attribute value
Forging Type	Round
Piston Average Weight	392
Ring Set Included	Yes
Top Compression Ring Thickness	0.0480
Second Compression Ring Thickness	0.0600
Oil Ring Thickness	0.0795
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.945
Wrist Pin Length	2.500
Wrist Pin Wall Thickness	0.140
Product Type	Engine Piston Kit
Piston Series	JE Pistons
Cylinder Head	VTX 1800 3V
Bore Diameter	101.00
Compression Ratio Actual	11.00:1
Piston Head Type	Dome
Piston Volume	-3.50
Material	2618
Category Hierarchy	Powersports>Pistons>Piston Kits>Street
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	101.00 MM
EBAY Category ID	177976
Country of Origin	US
Condition	New
