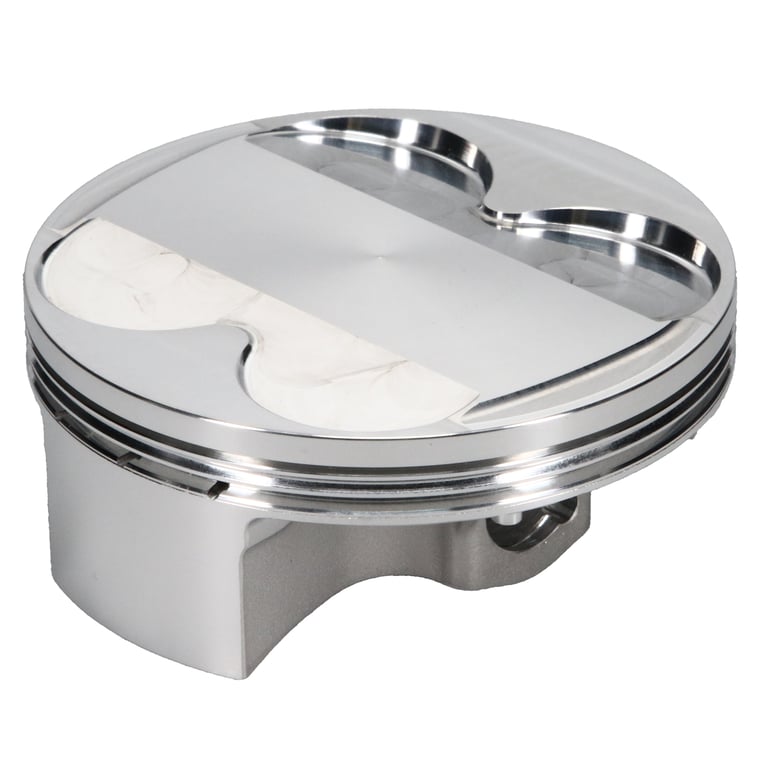

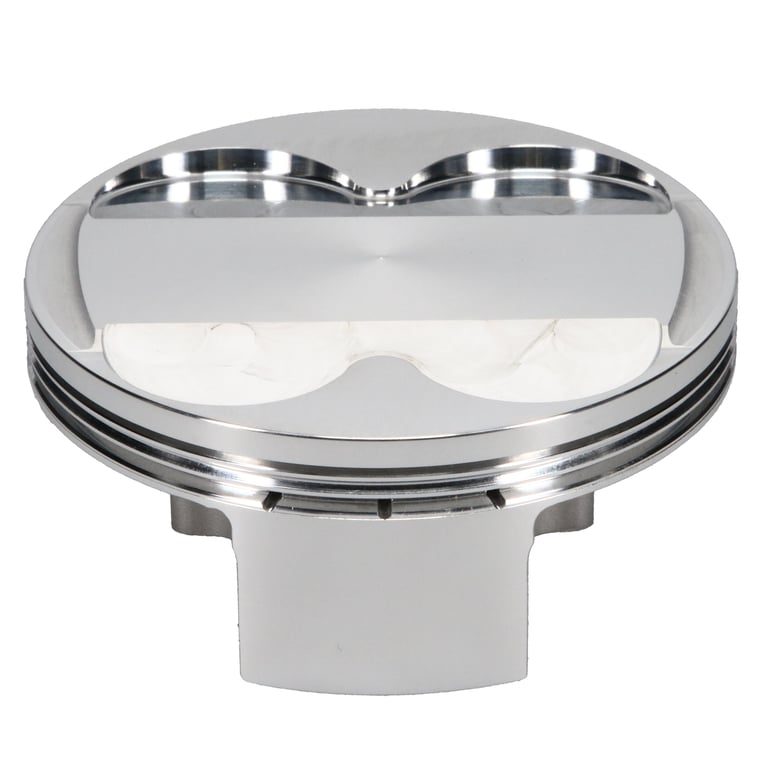

JE Pistons Engine Piston Kit - 317239

Name: JE Pistons Engine Piston Kit - 317239
SKU: 317239
Price: 329.99 USD
Availability: OutOfStock

Piston Set, 2618, Dome, 3.780 Bore, 0.903 CD, 0.748 Pin, Set of 1.

Manufacturer: JE Pistons

Manufacturer part number: 317239

$329.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of Pro Series pistons for dirt bike and motorcycle engines. Engineered, forged and machined 100% in the USA, JE Pro Series pistons are designed for each specific engine and racing application with input from professional-level teams and racers. From motocross to off-road and everything in between, JE Pistons? Pro Series are the ultimate forged piston choice for motocross and off-road competition.

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name	Attribute value
Wrist Pin Material	9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter	0.748
Wrist Pin Length	2.050
Wrist Pin Wall Thickness	0.160
Product Type	Engine Piston Kit
Category Hierarchy	Powersports>Pistons>Piston Kits>Off-Road
Piston Series	Pro Series
Cylinder Head	RMZ 450
Bore Diameter	96.00
Compression Ratio Actual	13.50:1
Piston Head Type	Dome
Piston Volume	0.70
Material	2618
Forging Type	FSR
Piston Average Weight	258
Ring Set Included	Yes
Top Compression Ring Thickness	0.0383
Oil Ring Thickness	0.0795
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	96.00 MM
EBAY Category ID	177976
Country of Origin	US
Condition	New
