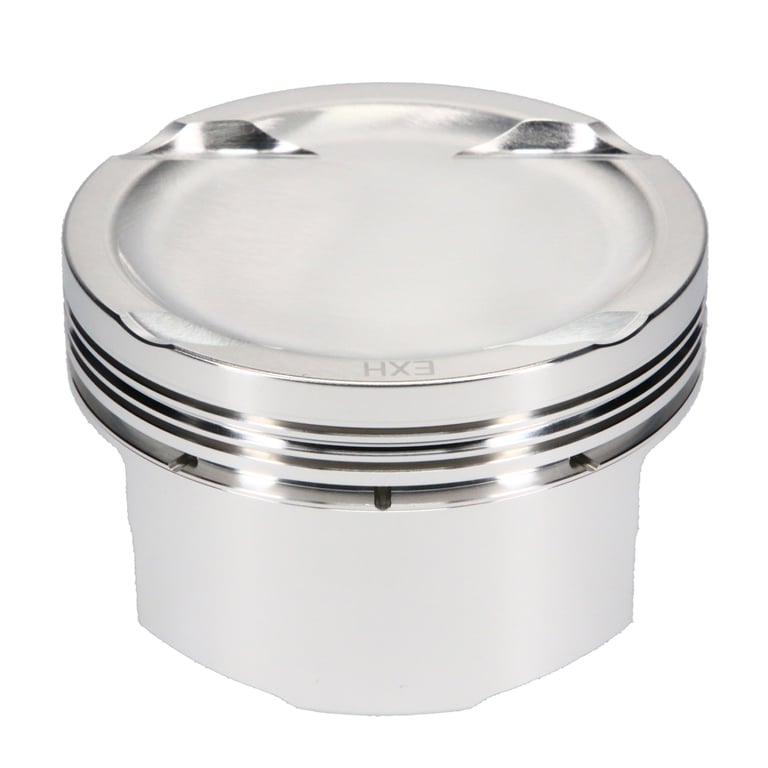

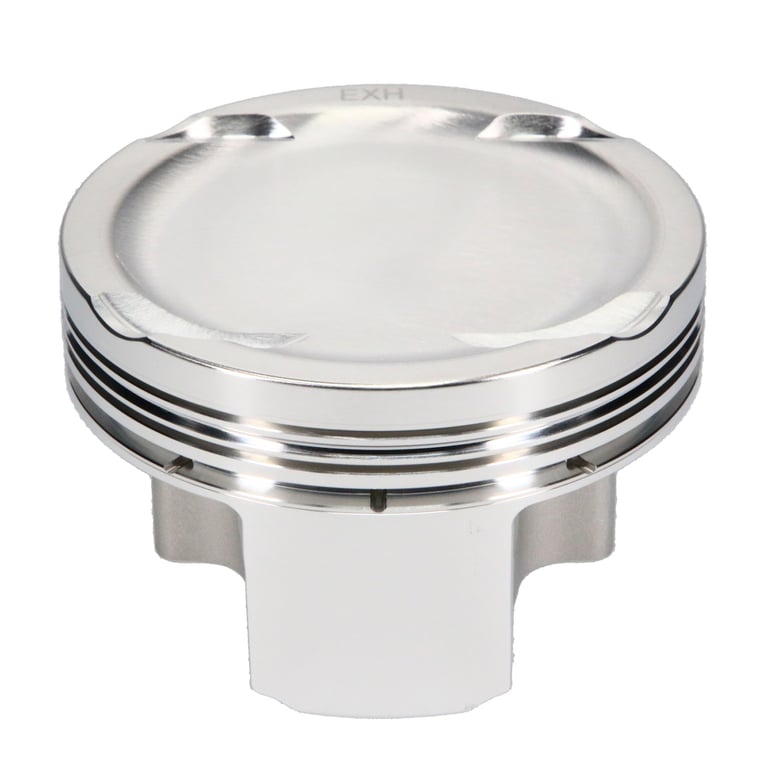

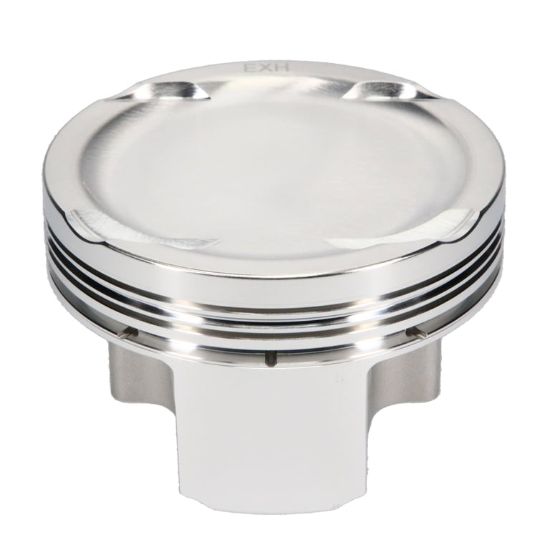

JE Pistons Engine Piston Kit - 317752

Name: JE Pistons Engine Piston Kit - 317752
SKU: 317752
Price: 899.99 USD
Availability: OutOfStock

Piston Set, 2618, Inv Dome/Dish, 3.543 Bore, 1.181 CD, 0.905 Pin, Set of 4.

Manufacturer: JE Pistons

Manufacturer part number: 317752

$899.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Honda F20C

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name	Attribute value
Bore Diameter	90.00
Piston Head Type	Dish
Piston Quantity	4
Forging Type	FSR
Piston Average Weight	324
Ring Set Included	Yes
Material	2618
Piston Volume	-14.60
Compression Height	1.181
Top Compression Ring Thickness	0.0400
Second Compression Ring Thickness	0.0480
Oil Ring Thickness	0.111
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.905
Wrist Pin Length	2.250
Wrist Pin Wall Thickness	0.150
Product Type	Engine Piston Kit
Category Hierarchy	Auto>All Piston Kits
Piston Series	JE Pistons
Cylinder Head	F20C1
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	90.00 MM
EBAY Category ID	33623
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Country of Origin	US
Condition	New
