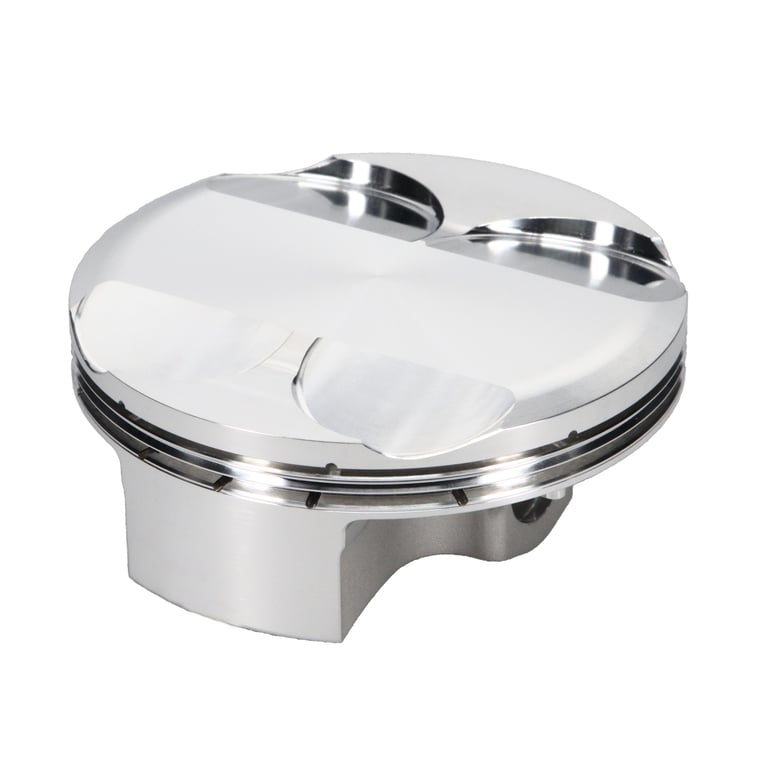

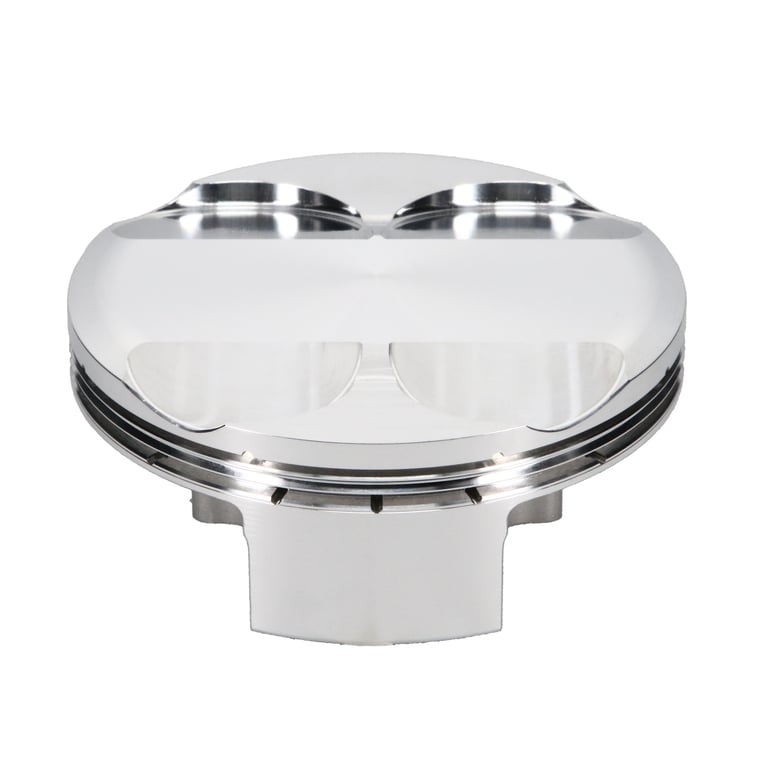

JE Pistons Engine Piston Kit - 323898

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
Piston Set, 2618, Dome, 3.740 Bore, 0.896 CD, 0.748 Pin, Set of 1.
Manufacturer: JE Pistons
Manufacturer part number: 323898
$329.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for dirt bike and other off-road motorcycle engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. From the motocross track to the trail and everything in between, JE Pistons? performance is proven with every handful of throttle and wave of the checkered flag. Equip your bike with the best in forged pistons.

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name Attribute value
Piston Series JE Pistons
Cylinder Head 4 VALVE 450
Bore Diameter 95.00
Compression Ratio Actual 13.50:1
Piston Head Type Dome
Piston Volume -4.90
Material 2618
Forging Type FSR
Piston Average Weight 259
Ring Set Included Yes
Top Compression Ring Thickness 0.0475
Oil Ring Thickness 0.0795
Wrist Pin Material 9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter 0.748
Wrist Pin Length 2.050
Wrist Pin Wall Thickness 0.160
Product Type Engine Piston Kit
Category Hierarchy Powersports>Clearance
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Prop 65 - Short Label prop65warninglabel.jpg
Bore Diameter - Web 95.00 MM
EBAY Category ID 177976
Country of Origin US
Condition New
🚗 Compatible with
20 vehicles are compatible with this product · 2012–2017
