JE Pistons Engine Piston Kit - 324015

Name: JE Pistons Engine Piston Kit - 324015
SKU: 324015
Price: 949.99 USD
Availability: OutOfStock

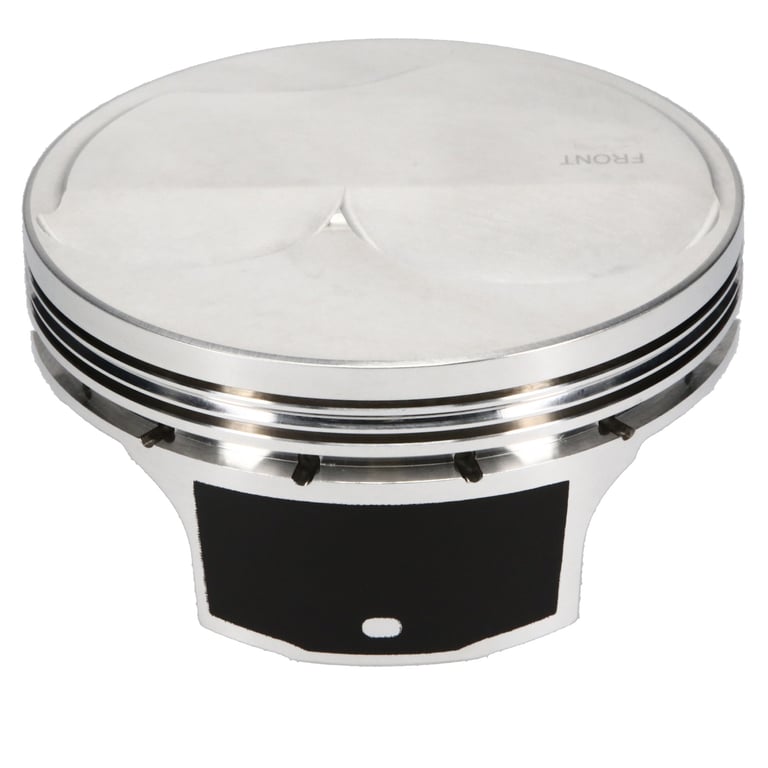

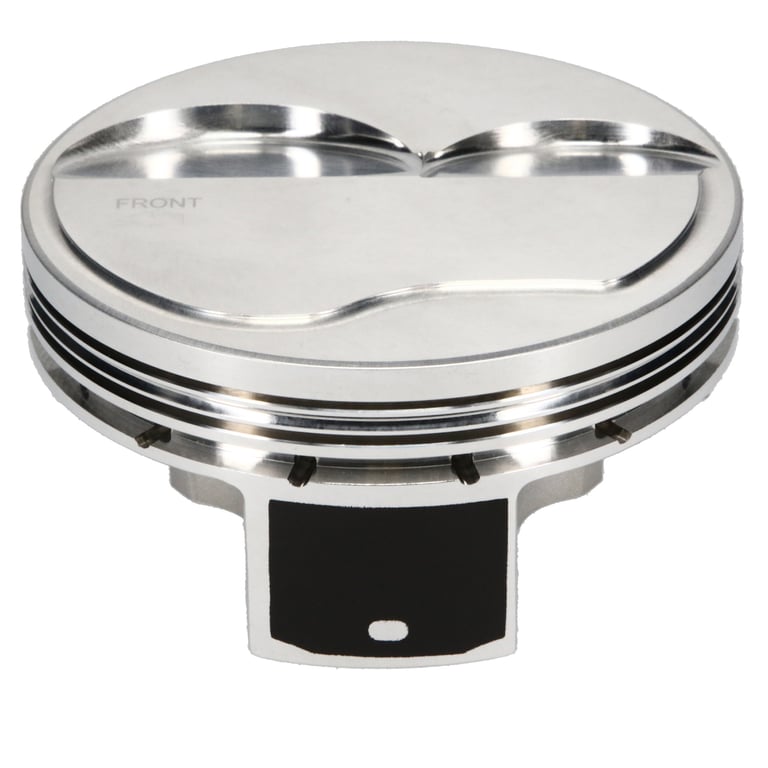

Piston Set, 2618, Dome, 4.075 Bore, 1.165 CD, 0.927 Pin, Set of 8.

Manufacturer: JE Pistons

Manufacturer part number: 324015

$949.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Chevrolet LS Stroker

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name	Attribute value
Oil Ring Thickness	0.1175
Wrist Pin Included	Yes
Wrist Pin Part Number	927-2250-15-51C
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.250
Wrist Pin Wall Thickness	0.150
Wrist Pin Retainer Included	Yes
Wrist Pin Retainer Part Number	927-073-MW
Engine Displacement	407
Engine Stroke	3.900
Connecting Rod Length	6.125
Deck Height	9.240
Ring Set Thickness	1.20 MM x 1.50 MM x 3.00 MM
Oversized	Yes
Ring Set - Recommended	JG3108-4075-5
OEM Bore Diameter	4.065
Piston Sub-Series	LS Dome - 15? Head
Pro Seal Head Gasket	GM1006-051
Engine Family	LS
Oversized Amount	0.010
Compression Ratio	13.20:1 / 64.00 CC Head
Product Type	Engine Piston Kit
Category Hierarchy	Auto>All Piston Kits
Piston Series	JE Pistons
Cylinder Head	GM LS1 15 DEG
Bore Diameter	4.075
Piston Head Type	Dome
Compression Height	1.165
Piston Volume	7.20
Material	2618
Piston Quantity	8
Forging Type	FSR
Piston Average Weight	431
Ring Set Included	No
Top Compression Ring Thickness	0.0480
Second Compression Ring Thickness	0.0600
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.075 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
