JE Pistons Engine Piston Kit - 324728

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle

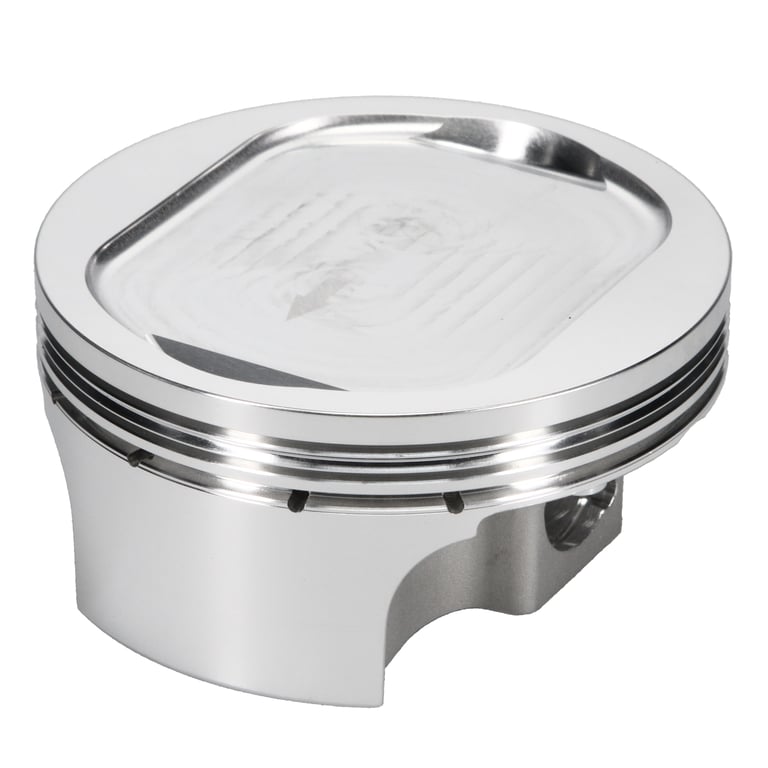

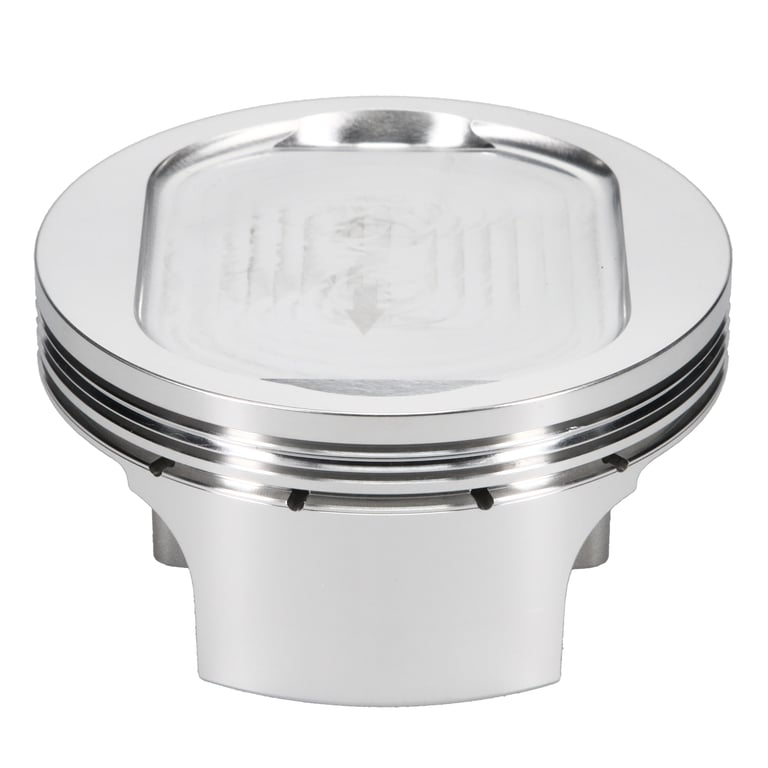

Piston Set, 2618, Flat Top, 3.885 Bore, 1.082 CD, 0.927 Pin, Set of 2.
Manufacturer: JE Pistons
Manufacturer part number: 324728
$449.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

As the leader in forged racing pistons, JE Pistons has been at the forefront of V-Twin and Harley-Davidson piston performance for decades, with over 75 years of experience. JE?s carefully developed line of V-Twin pistons is engineered, forged and machined 100% in the USA and are designed for each specific engine and use application to provide the ultimate combination of durability and performance. From fun and powerful cruisers to all-out V-Twin drag racing, JE Pistons? performance is proven with every handful of throttle. Equip your bike with the best in forged pistons.

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name Attribute value
Top Compression Ring Thickness 0.0478
Second Compression Ring Thickness 0.0478
Oil Ring Thickness 0.0795
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter 0.927
Wrist Pin Length 2.250
Wrist Pin Wall Thickness 0.150
Product Type Engine Piston Kit
Category Hierarchy Powersports>Pistons>Piston Kits>V-Twin
Piston Series JE Pistons
Cylinder Head 1999-2006 TWIN CAM
Bore Diameter 98.68
Compression Ratio Actual 10.00:1
Piston Head Type Flat
Piston Volume -2.00
Material 2618
Forging Type FSR
Piston Average Weight 353
Ring Set Included Yes
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Prop 65 - Short Label prop65warninglabel.jpg
Bore Diameter - Web 98.68 MM
EBAY Category ID 177976
Country of Origin US
Condition New
🚗 Compatible with
118 vehicles are compatible with this product · 2009–2017
