JE Pistons Engine Piston Kit - 330172

Name: JE Pistons Engine Piston Kit - 330172
SKU: 330172
Price: 1199.99 USD
Availability: OutOfStock

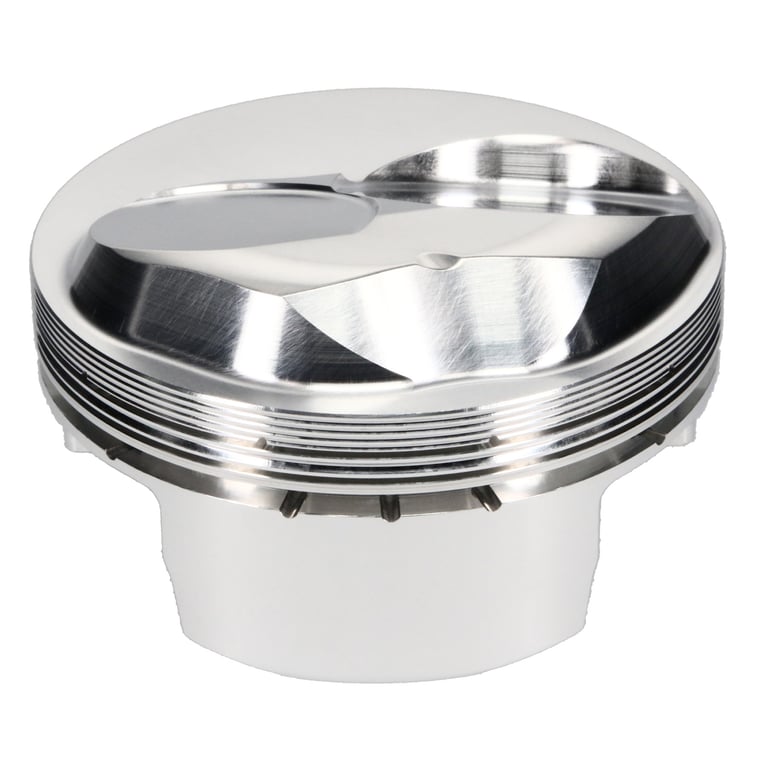

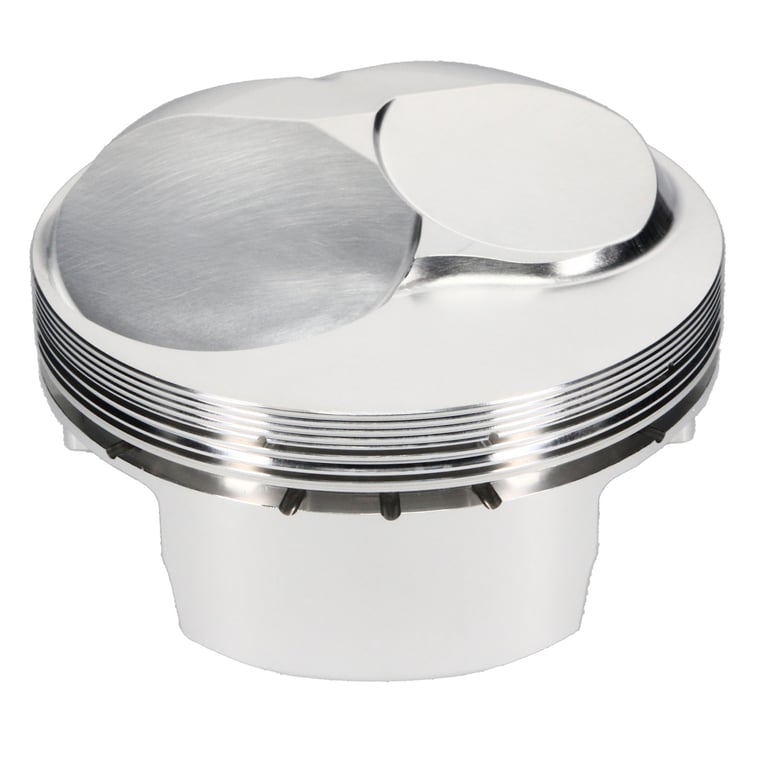

Piston Set, 2618, Dome, 4.610 Bore, 1.215 CD, 0.990 Pin, Set of 8.

Manufacturer: JE Pistons

Manufacturer part number: 330172

$1,199.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Chevrolet Big Block 502

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	OPEN CHAMBER
Bore Diameter	4.610
Piston Head Type	Dome
Compression Height	1.215
Piston Volume	49.00
Material	2618
Piston Quantity	8
Forging Type	FSR
Ring Set Included	No
Top Compression Ring Thickness	0.0440
Second Compression Ring Thickness	0.0440
Oil Ring Thickness	0.149
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.990
Wrist Pin Length	2.500
Wrist Pin Wall Thickness	0.180
Product Type	Engine Piston Kit
Category Hierarchy	Auto>JE Pistons>Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.610 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
