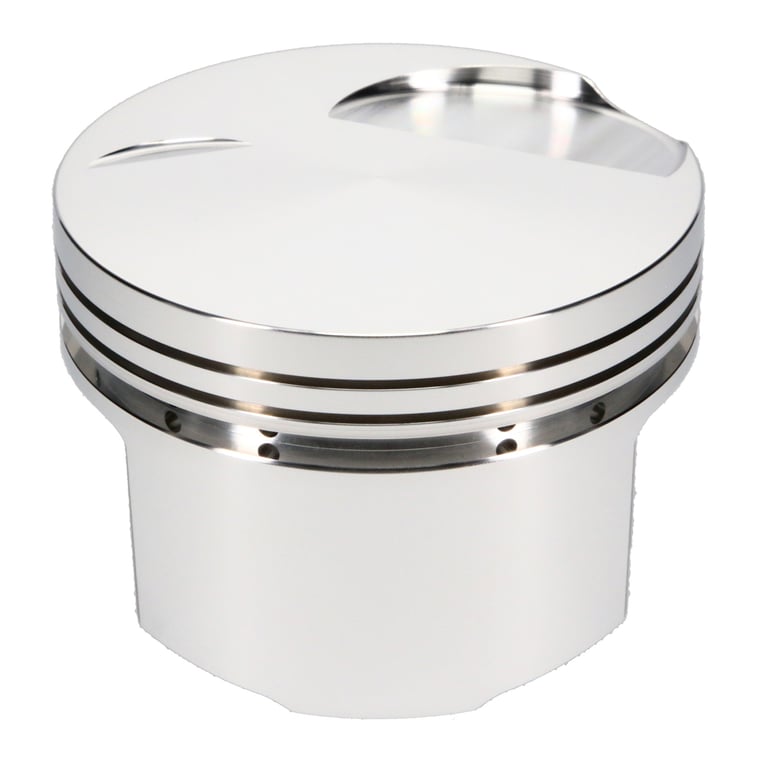

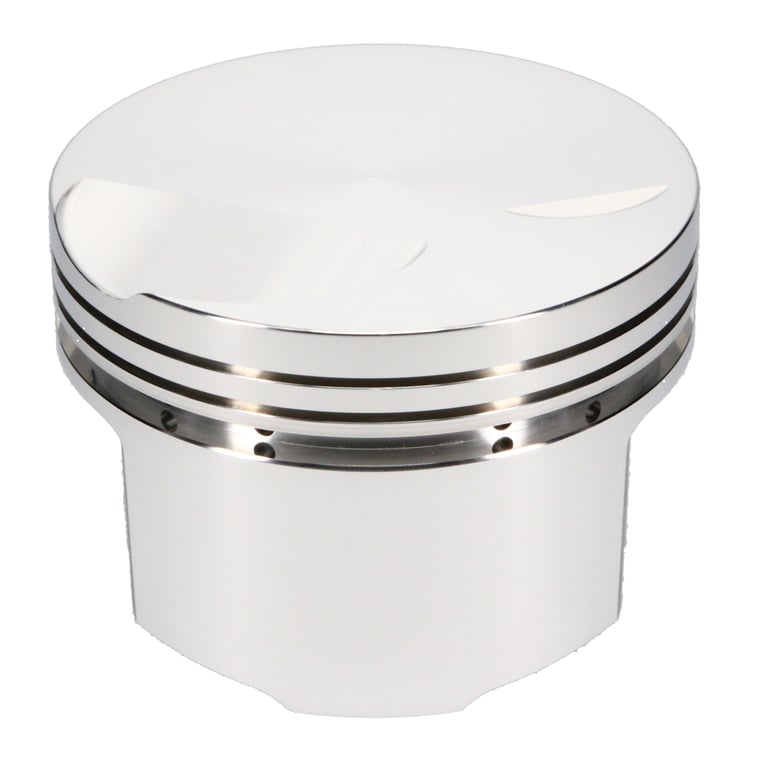

JE Pistons Engine Piston Kit - 338202

Piston Set, 4032, Flat Top, 4.000 Bore, 1.250 CD, 0.927 Pin, Set of 8.
Manufacturer: JE Pistons
Manufacturer part number: 338202
$699.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.

Application: Ford Small Block 351C

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name Attribute value
Piston Series SRP
Cylinder Head CLEVELAND
Bore Diameter 4.000
Piston Head Type Flat
Compression Height 1.250
Piston Volume 3.00
Material 4032
Forging Type FSR
Piston Average Weight 454
Oil Ring Thickness 0.218
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter 0.927
Wrist Pin Length 2.750
Wrist Pin Wall Thickness 0.150
Product Type Engine Piston Kit
Ring Set Included No
Top Compression Ring Thickness 0.0640
Second Compression Ring Thickness 0.0640
Category Hierarchy Auto>All Piston Kits
Bore Diameter - Web 4.000 IN
EBAY Category ID 33623
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Prop 65 - Short Label prop65warninglabel.jpg
Country of Origin US
Condition New
