JE Pistons Engine Piston Kit - 360991

Name: JE Pistons Engine Piston Kit - 360991
SKU: 360991
Price: 874.99 USD
Availability: OutOfStock

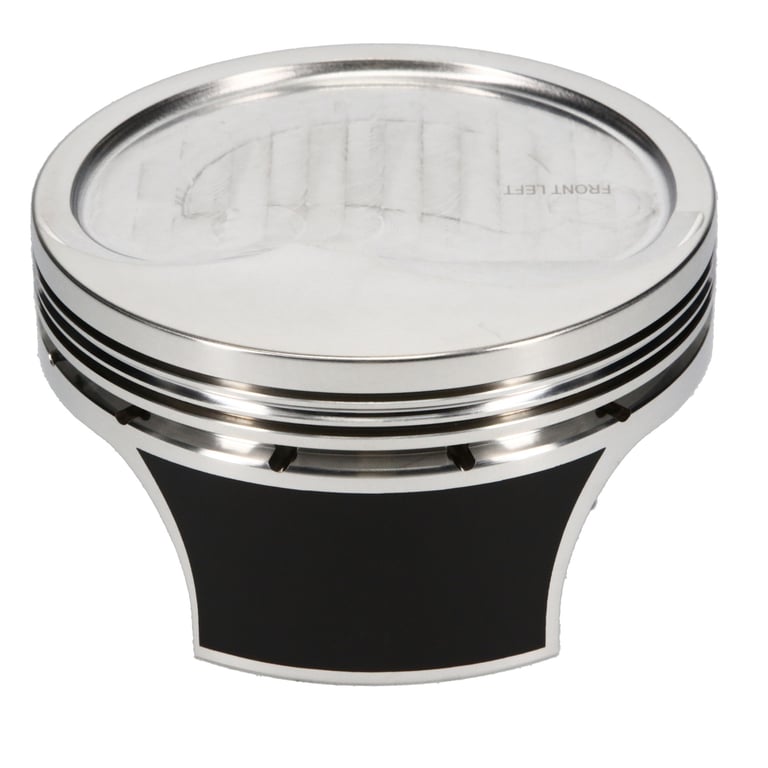

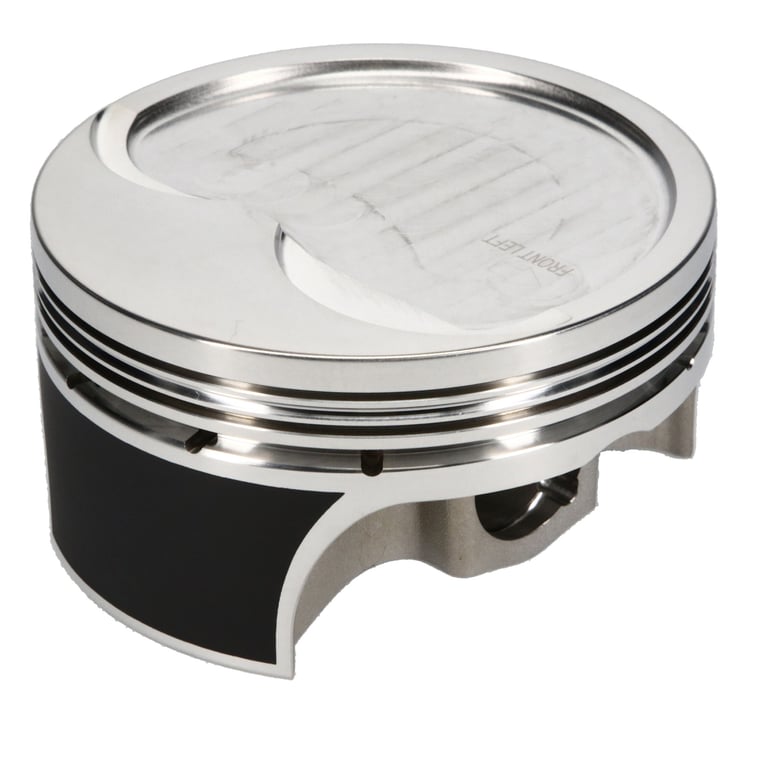

Piston Set, 2618, Inv Dome/Dish, 4.005 Bore, 1.340 CD, 0.945 Pin, Set of 8.

Manufacturer: JE Pistons

Manufacturer part number: 360991

$874.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

JE Pistons SRP Pro 2618 line expands on the premium features of the SRP Pro series with the addition of extremely strong, 2618 forged aluminum material. All piston kits include gas-nitrided, carbon-steel pistons rings, pins, and locks. SRP Pro 2618 pistons maximize piston strength and maximize value, whether you?re building rowdy small block or a flame-spitting big block. As with all JE Pistons products, SRP pistons are made 100% in the USA.

Application: Chevrolet LS Gen III/IV

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name	Attribute value
Piston Series	SRP Pro 2618
Cylinder Head	LSX/L92 12 DEG
Bore Diameter	4.005
Piston Head Type	Dish
Compression Height	1.330
Piston Volume	-14.30
Material	2618
Forging Type	FSR
Piston Average Weight	431
Ring Set Included	Yes
Top Compression Ring Thickness	0.0480
Second Compression Ring Thickness	0.0600
Oil Ring Thickness	0.119
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.945
Wrist Pin Length	2.250
Wrist Pin Wall Thickness	0.150
Product Type	Engine Piston Kit
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.005 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
