JE Pistons Engine Piston Kit - 361287

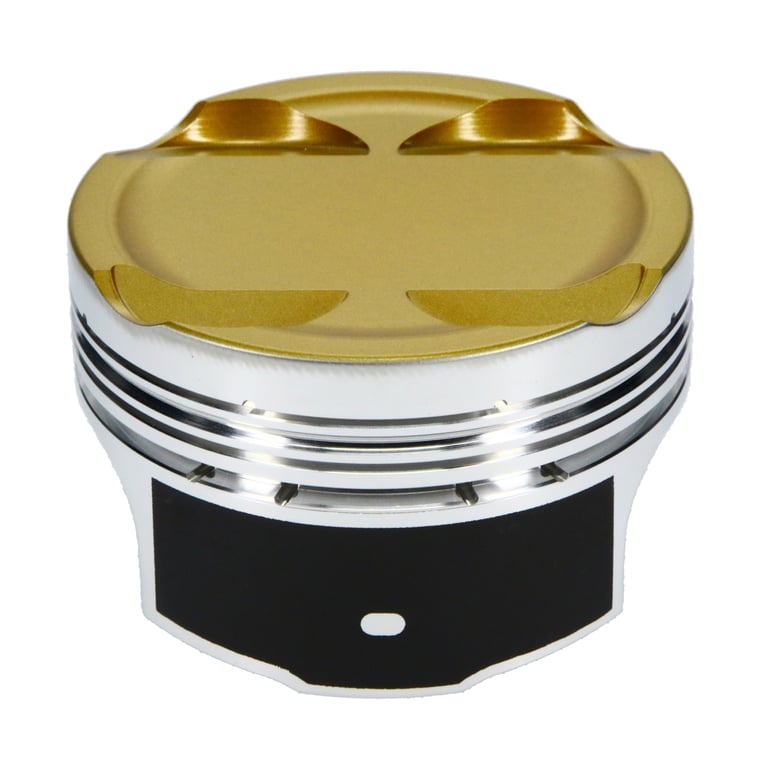

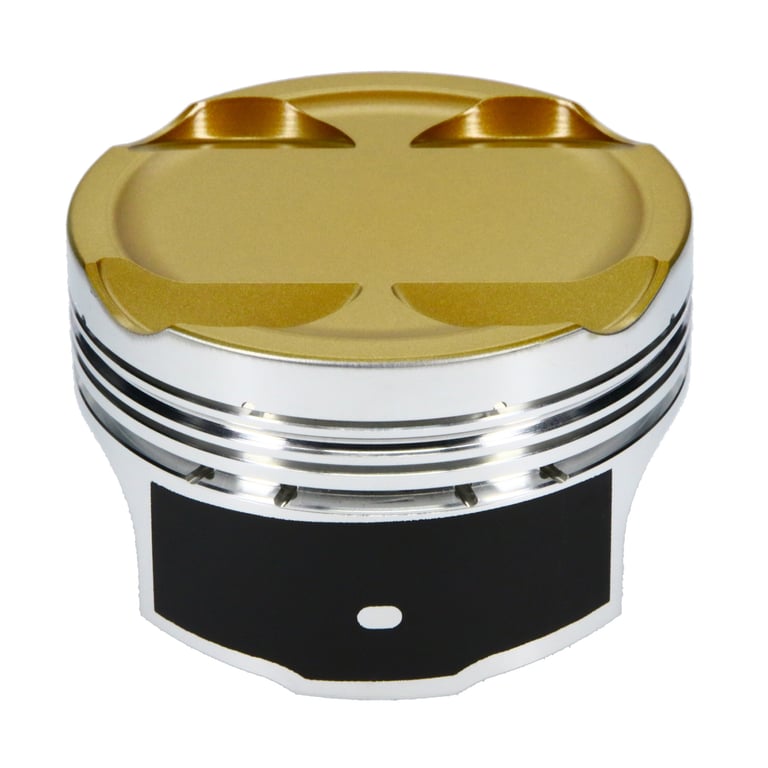

Piston Set, 2618, Inv Dome/Dish, 3.346 Bore, 1.367 CD, 0.866 Pin, Set of 4.
Manufacturer: JE Pistons
Manufacturer part number: 361287
$1,124.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of import and sport compact applications from 2JZ to 4G63 and Audi to BMW, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your high-boost build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.

Application: Mitsubishi 4G63 EVO VII-IX 01-07

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name Attribute value
Piston Series JE Ultra Series
Cylinder Head 4G63
Bore Diameter 85.00
Piston Head Type Dish
Compression Height 1.367
Piston Volume -5.00
Material 2618
Forging Type FSR
Piston Average Weight 324
Ring Set Included Yes
Top Compression Ring Thickness 0.0395
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Wrist Pin Material 9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter 0.866
Wrist Pin Length 2.250
Wrist Pin Wall Thickness 0.230
Engine Detail 4G63 2001-2007 Evo VII-IX / 22 mm Pin
Product Type Engine Piston Kit
Category Hierarchy Auto>All Piston Kits
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Prop 65 - Short Label prop65warninglabel.jpg
Bore Diameter - Web 85.00 MM
EBAY Category ID 33623
Country of Origin US
Condition New
