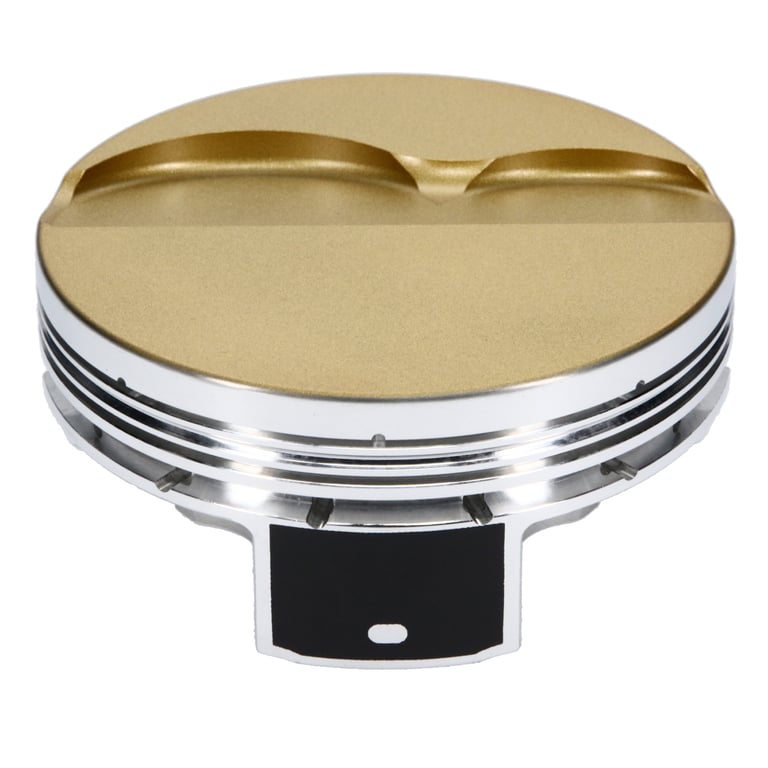

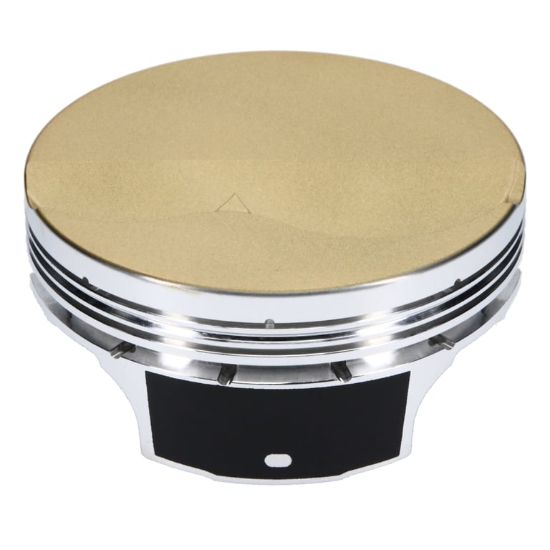

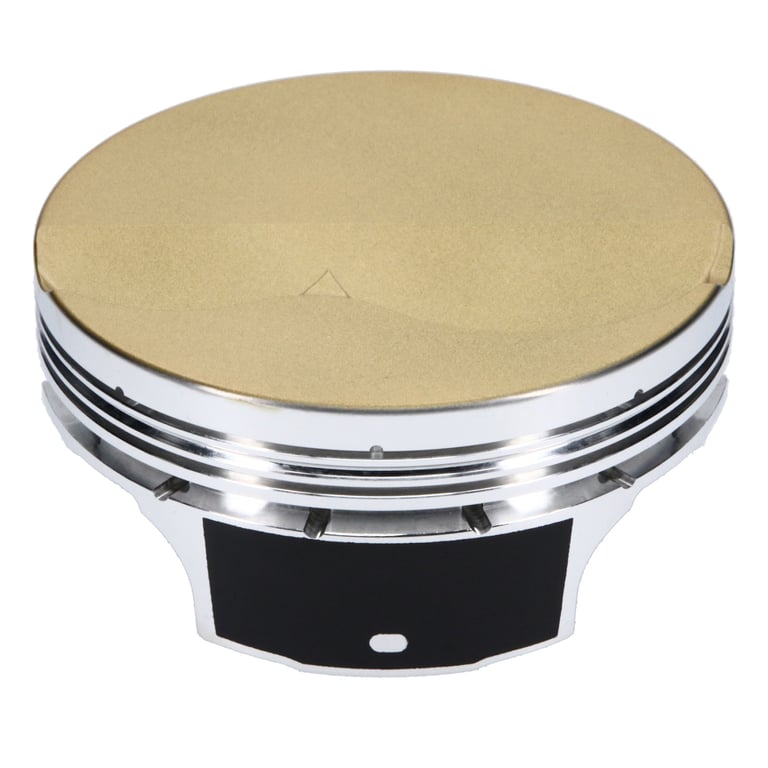

JE Pistons Engine Piston Kit - 361721

Piston Set, 2618, Flat Top, 4.135 Bore, 1.115 CD, 0.927 Pin, Set of 8.
Manufacturer: JE Pistons
Manufacturer part number: 361721
$1,395.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.

Application: Chevrolet LS Gen III/IV Stroker

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name Attribute value
Category Hierarchy Auto>All Piston Kits
Piston Series JE Ultra Series
Cylinder Head LS 12 DEG/15 DEG COMBO VR
Bore Diameter 4.135
Piston Head Type Flat
Compression Height 1.115
Piston Volume -5.00
Material 2618
Forging Type FSR
Ring Set Included No
Top Compression Ring Thickness 0.0475
Second Compression Ring Thickness 0.0600
Oil Ring Thickness 0.149
Wrist Pin Included Yes
Wrist Pin Length 2.250
Wrist Pin Wall Thickness 0.200
Wrist Pin Retainer Included Yes
Wrist Pin Outer Diameter 0.927
Wrist Pin Material 9310 Nickel Carbon Steel Alloy
Wrist Pin Part Number 927-2250-15-51C
Wrist Pin Retainer Part Number 927-073-MW
Engine Displacement 430
Engine Stroke 4.000
Connecting Rod Length 6.125
Deck Height 9.240
Ring Set Thickness 1.20 MM x 1.50 MM x 3.00 MM
Oversized Yes
Ring Set - Recommended JG31F8-4135-2
OEM Bore Diameter 4.125
Piston Sub-Series LS Flat Top
Pro Seal Head Gasket GM1005-051
Engine Family LS
Compression Ratio 12.20:1 / 64.00 CC Head
Oversized Amount 0.010
Product Type Engine Piston Kit
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Prop 65 - Short Label prop65warninglabel.jpg
Bore Diameter - Web 4.135 IN
EBAY Category ID 33623
Country of Origin US
Condition New
