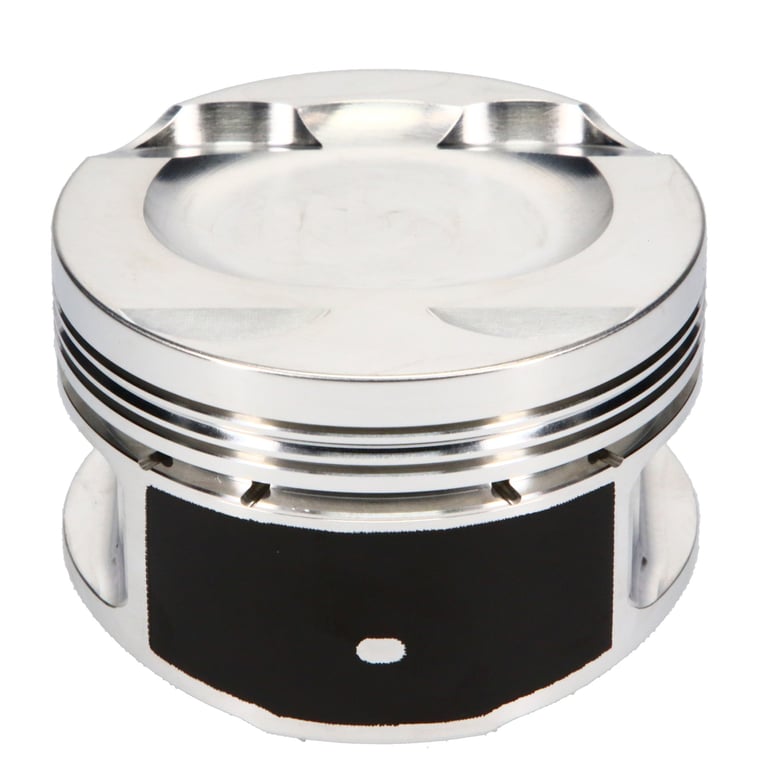

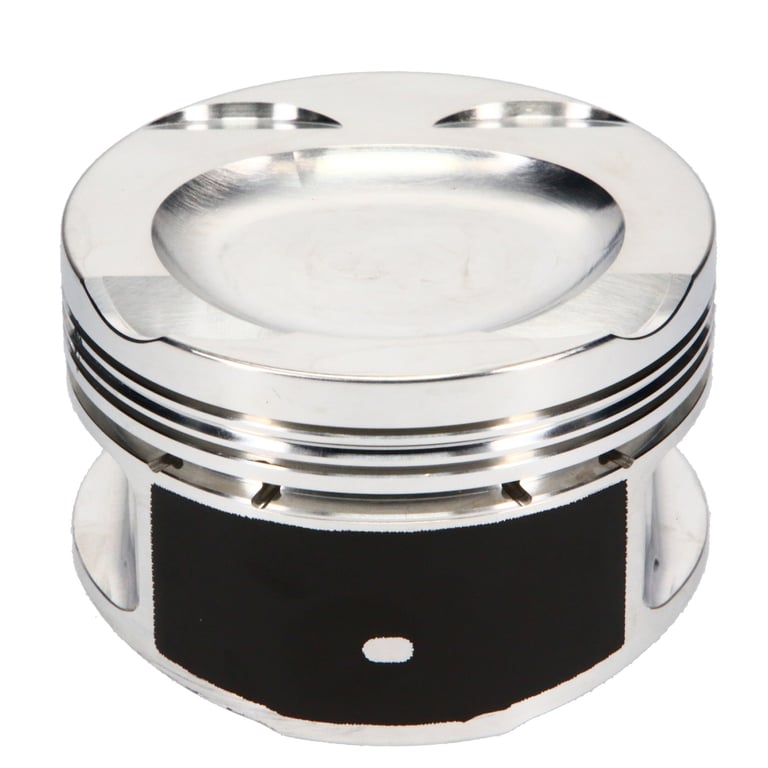

JE Pistons Engine Piston Kit - 363325

Piston Set, 2618, Inv Dome/Dish, 3.011 Bore, 1.141 CD, 0.748 Pin, Set of 4.
Manufacturer: JE Pistons
Manufacturer part number: 363325
$899.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Volkswagen 1.4L TFSI 2005+

Note: JE designs are specifically engineered for extreme upplications up to, and including, professional competition

Products specifications

Attribute name Attribute value
Piston Series JE Pistons
Cylinder Head 4-VALVE
Bore Diameter 3.011
Piston Head Type Dish
Compression Height 1.141
Piston Volume -8.00
Material 2618
Piston Quantity 4
Forging Type Round
Ring Set Included Yes
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Wrist Pin Material 9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter 0.748
Wrist Pin Length 2.050
Wrist Pin Wall Thickness 0.160
Engine Detail 1.4L TFSI 2005+
Product Type Engine Piston Kit
Category Hierarchy Auto>All Piston Kits
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Prop 65 - Short Label prop65warninglabel.jpg
Bore Diameter - Web 3.011 IN
EBAY Category ID 33623
Country of Origin US
Condition New
