JE Pistons Engine Piston Kit - 367698

Name: JE Pistons Engine Piston Kit - 367698
SKU: 367698
Price: 799.99 USD
Availability: OutOfStock

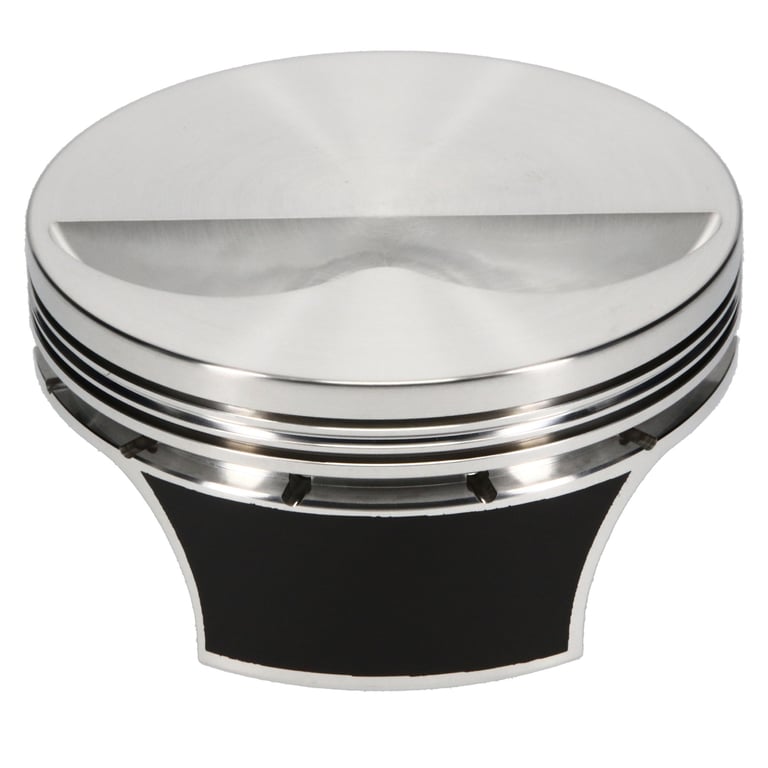

Piston Set, 2618, Flat Top, 4.020 Bore, 1.425 CD, 0.927 Pin, Set of 8.

Manufacturer: JE Pistons

Manufacturer part number: 367698

$799.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

JE Pistons SRP Pro 2618 line expands on the premium features of the SRP Pro series with the addition of extremely strong, 2618 forged aluminum material. All piston kits include gas-nitrided, carbon-steel pistons rings, pins, and locks. SRP Pro 2618 pistons maximize piston strength and maximize value, whether you?re building rowdy small block or a flame-spitting big block. As with all JE Pistons products, SRP pistons are made 100% in the USA.

Application: Chevrolet Small Block 350

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name	Attribute value
Piston Series	SRP Pro 2618
Cylinder Head	CHEVROLET 23 DEG 20/30
Bore Diameter	4.020
Piston Head Type	Flat
Compression Height	1.425
Piston Volume	-5.00
Material	2618
Forging Type	FSR
Piston Average Weight	430
Ring Set Included	Yes
Top Compression Ring Thickness	0.0480
Second Compression Ring Thickness	0.0600
Oil Ring Thickness	0.119
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.250
Wrist Pin Wall Thickness	0.170
Product Type	Engine Piston Kit
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.020 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
