JE Pistons Engine Piston Kit - 371952

Name: JE Pistons Engine Piston Kit - 371952
SKU: 371952
Price: 849.99 USD
Availability: OutOfStock

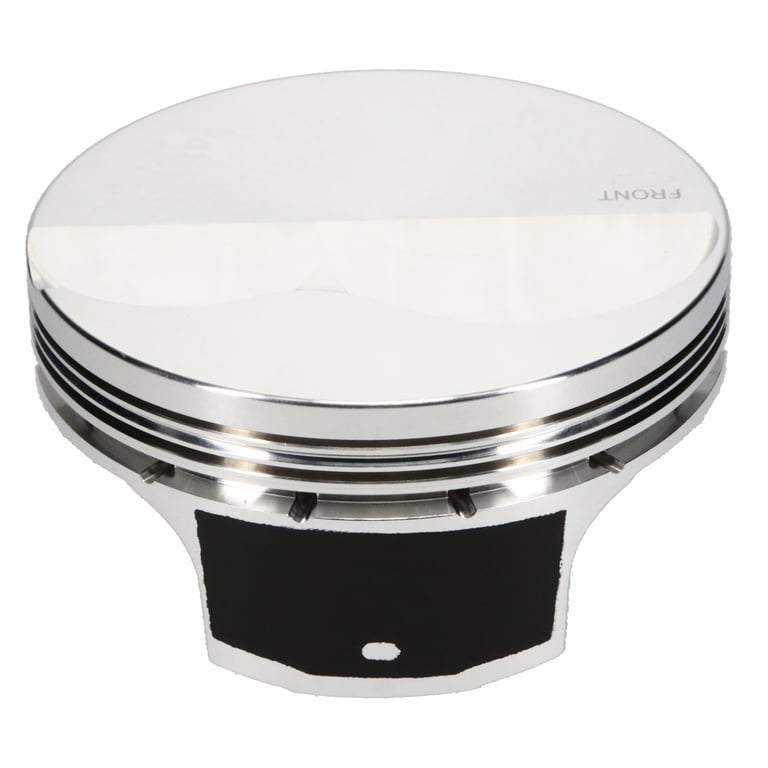

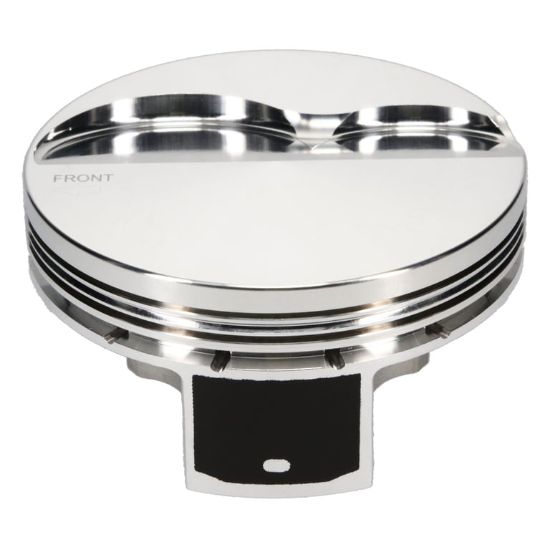

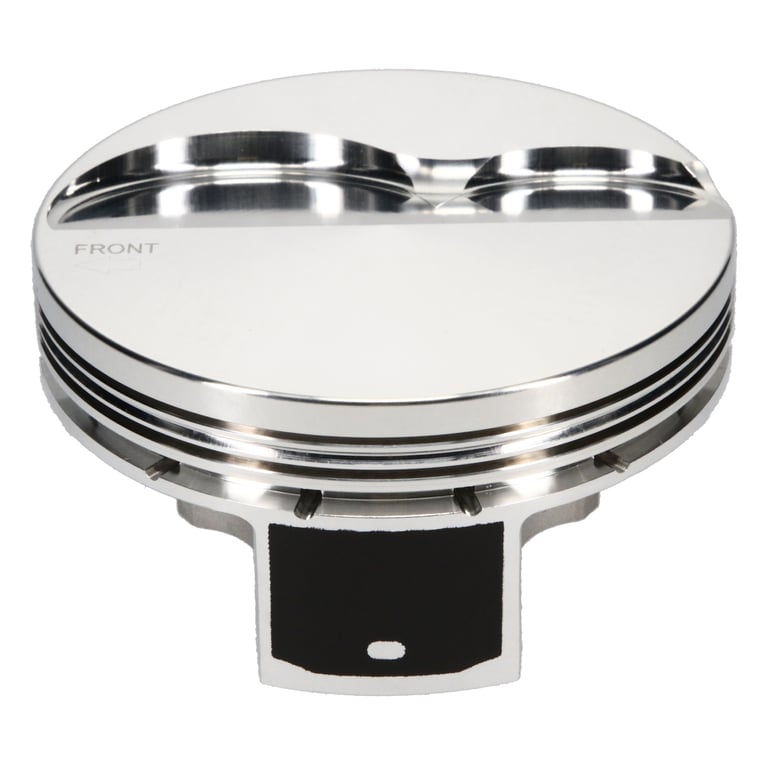

Piston Set, 2618, Flat Top, 4.135 Bore, 1.050 CD, 0.927 Pin, Set of 8.

Manufacturer: JE Pistons

Manufacturer part number: 371952

$849.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Chevrolet LS Stroker

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name	Attribute value
Pro Seal Head Gasket	GM1005-051
Engine Family	LS
Compression Ratio	12.50:1 / 64.00 CC Head
Oversized Amount	0.010
Product Type	Engine Piston Kit
Category Hierarchy	Auto>All Piston Kits
Piston Series	JE Pistons
Cylinder Head	LS 12 DEG/15 DEG COMBO VR
Bore Diameter	4.135
Piston Head Type	Flat
Compression Height	1.050
Piston Volume	-5.00
Material	2618
Piston Quantity	8
Forging Type	FSR
Piston Average Weight	407
Ring Set Included	No
Top Compression Ring Thickness	0.0480
Second Compression Ring Thickness	0.0600
Piston Sub-Series	LS Flat Top
OEM Bore Diameter	4.125
Ring Set - Recommended	JG31F8-4135-2
Oversized	Yes
Ring Set Thickness	1.20 MM x 1.50 MM x 3.00 MM
Deck Height	9.240
Connecting Rod Length	6.125
Engine Stroke	4.125
Engine Displacement	443
Wrist Pin Retainer Part Number	927-073-MW
Wrist Pin Retainer Included	Yes
Wrist Pin Wall Thickness	0.150
Wrist Pin Length	2.250
Wrist Pin Outer Diameter	0.927
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Part Number	927-2250-15-51C
Wrist Pin Included	Yes
Oil Ring Thickness	0.149
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.135 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
