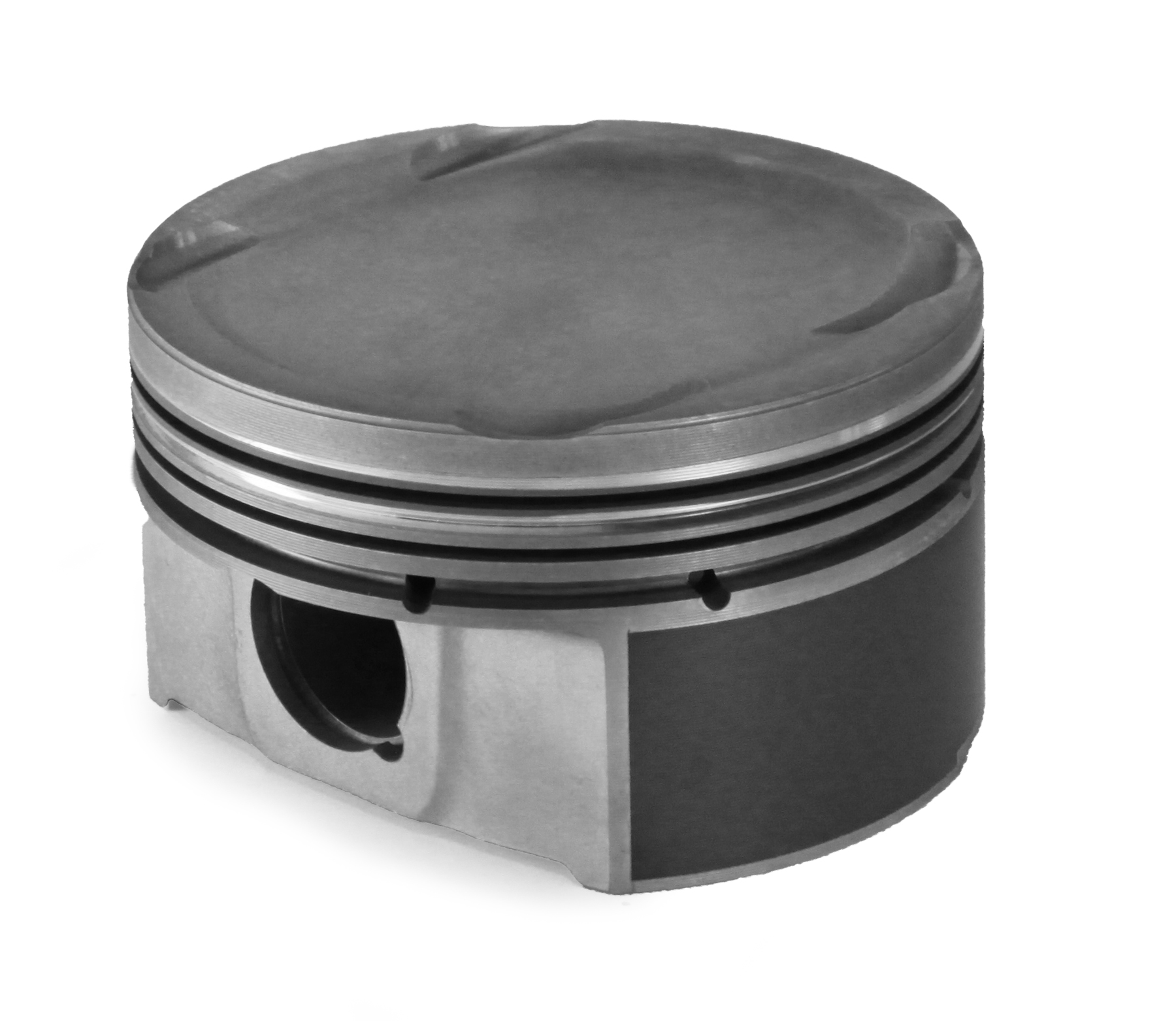

Mahle Motorsport Engine Piston - 930000045-1

Name: Mahle Motorsport Engine Piston - 930000045-1
SKU: 930000045-1
Price: 169.80 USD
Availability: InStock

Piston (ea) - BMW S54 B32 3.2L E46 M3

Manufacturer: Mahle Motorsport

Manufacturer part number: 930000045-1

Old price: $184.56

Price: $169.80

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

87.50mm x 32.3mm CH, 91.0mm stroke,139mm rod,21mm pin,-29.0cc,334g,9.1CR, 2618, SINGLE PISTON

Note: Replacement piston for kit 930000045, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Crown Volume	-29.0cc
Pin Wall Thickness	0.197
LCR Thickness	1.2mm
UCR Thickness	1.2mm
Piston Ring Thickness	1.2mm, 1.2mm, 2.8mm
OCR Thickness	2.8mm
Pin Diameter	21.0mm
Piston Mass	334g
Pin Length	50.0mm
Pin Mass	98g
LCR Material	Cast Iron
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
Piston Style	Dish, w/ 4 valve reliefs
Pin Style	Floating
Material	Forged, 2618
UCR Coating	Gas Nitrided
Clips Included	N
File Fit	N
Pins Included	N
Rings Included	N
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
UCR Material	Stainless Steel
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Yes/No	Yes
Country of Origin	US
Quantity per Application	6
