Mahle Motorsport Engine Piston - 930036095-1

Name: Mahle Motorsport Engine Piston - 930036095-1
SKU: 930036095-1
Price: 185.05 USD
Availability: InStock

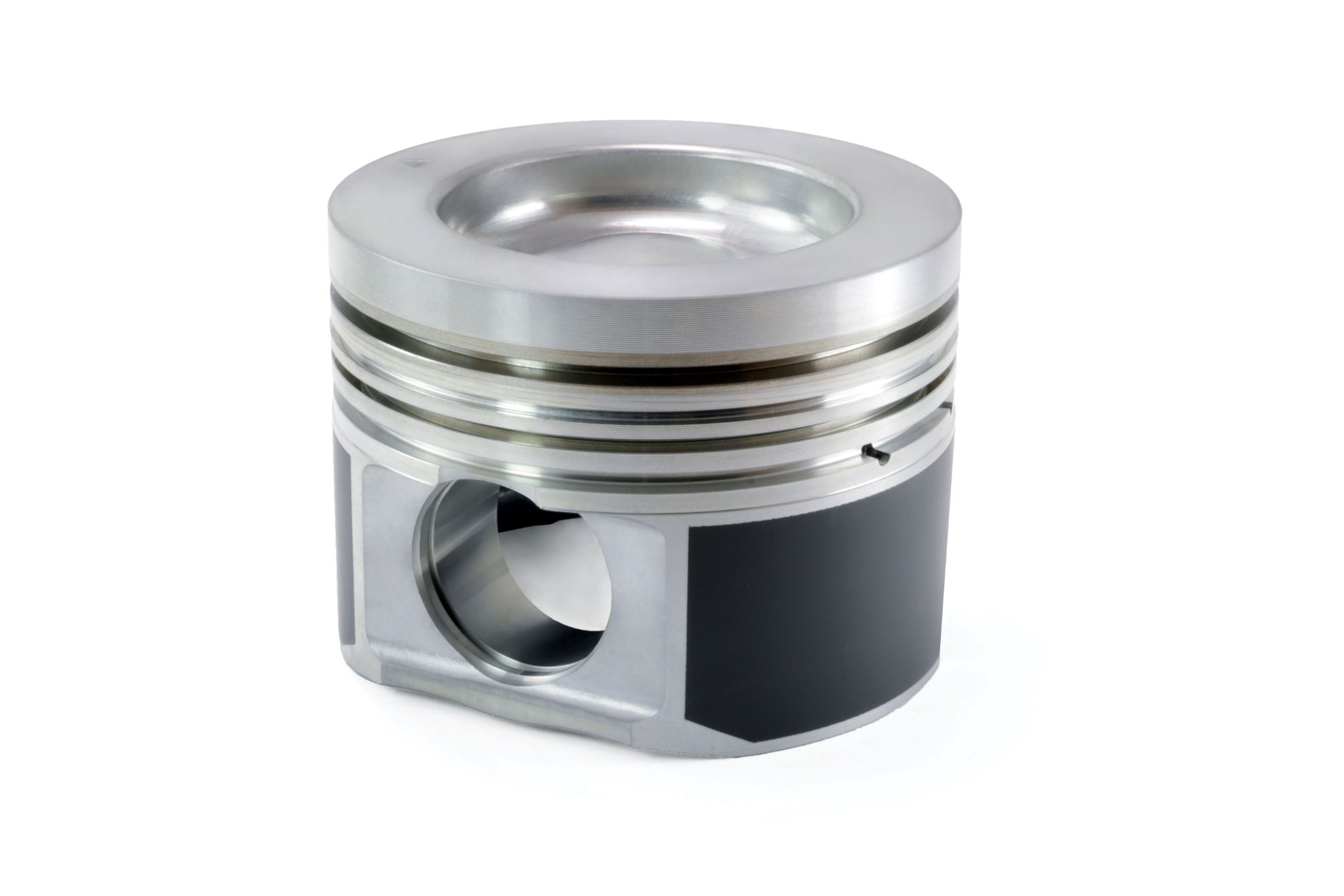

Piston (ea) - GM 6.6L Duramax Cast Performance Pistons

Manufacturer: Mahle Motorsport

Manufacturer part number: 930036095-1

Old price: $201.14

Price: $185.05

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

411cid 4.095 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-40.7cc,896g,17.0CR, M142, SINGLE PISTON

Note: Replacement piston for kit 930036095, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Crown Volume	-40.7cc
Pin Wall Thickness	0.325
LCR Thickness	2.0mm
OCR Thickness	3.0mm
UCR Thickness	3.0mm Keystone
Pin Diameter	34.5mm
Pin Mass	410g
Pin Length	77.5mm
Piston Mass	896g
LCR Material	Cast Iron
Material	Cast, M142
LCR Coating	Chrome
Prop 65 (C, R or CR)	CR
UCR Coating	CrN PVD
Piston Style	Dish, w/ NO valve reliefs
Pin Style	Floating
OCR Material	Gas Nitrided stainless steel
Piston Ring Thickness	K.0mm, 2.0mm, 3.0mm
Clips Included	N
File Fit	N
Pins Included	N
Rings Included	N
Clip Style	Snap Ring
Package Quantity	Sold as a set of 1
UCR Material	Stainless Steel
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Yes/No	Yes
Country of Origin	US
Quantity per Application	8
