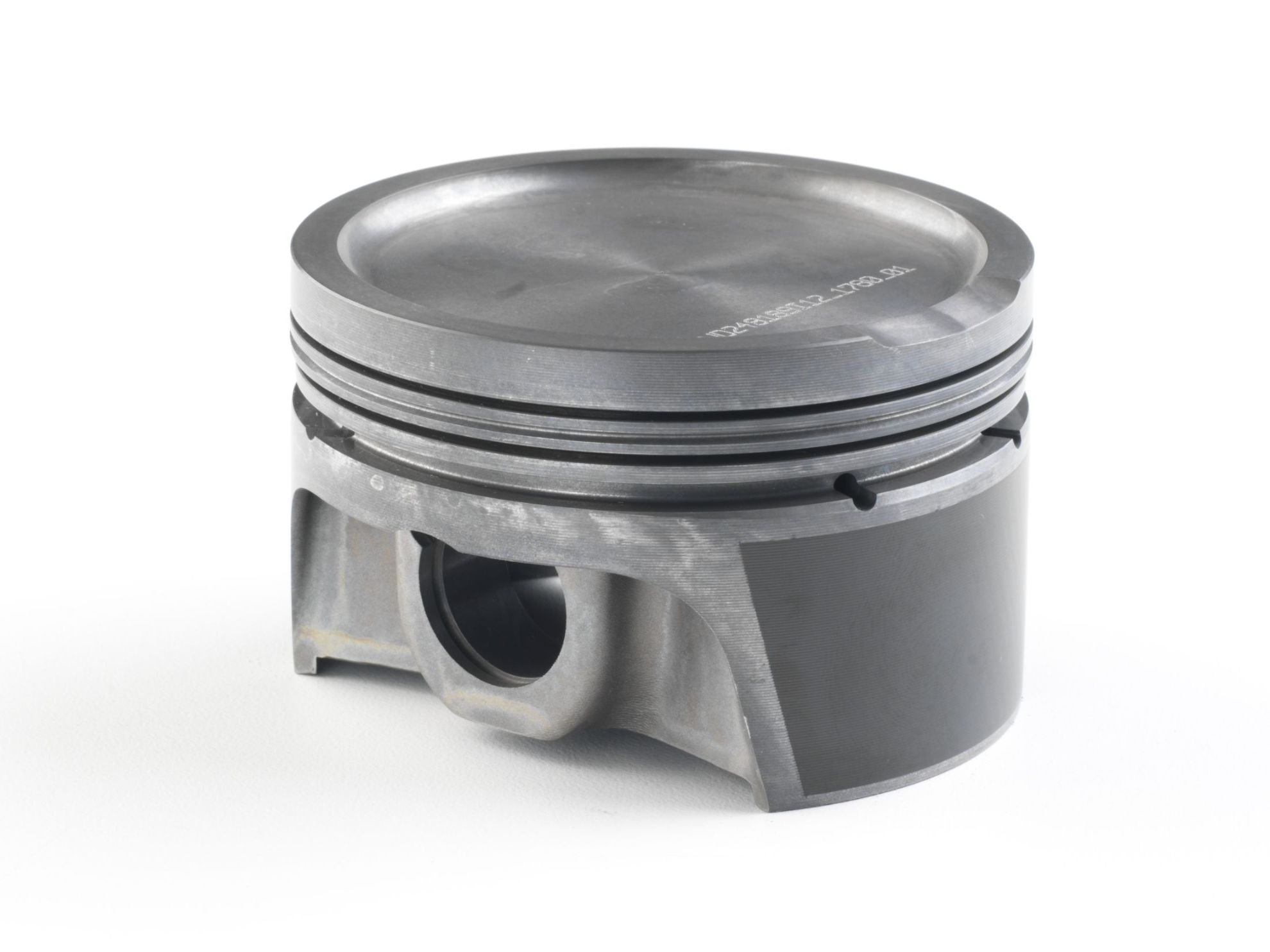

Mahle Motorsport Engine Piston - 930070509-1

Name: Mahle Motorsport Engine Piston - 930070509-1
SKU: 930070509-1
Price: 146.23 USD
Availability: InStock

Piston (ea) - VOLKSWAGEN/AUDI B5 S4 2.7L 6-cyl. 5V Turbo

Manufacturer: Mahle Motorsport

Manufacturer part number: 930070509-1

Old price: $158.95

Price: $146.23

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

81.50mm x 30.7mm CH, 86.4mm stroke,154mm rod,21mm pin,-7.2cc,295g,9.0CR, 4032, SINGLE PISTON

Note: Replacement piston for kit 930070509, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Piston Mass	295g
Pin Length	50.0mm
Pin Mass	98g
LCR Material	Cast Iron
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
Piston Style	Dish, w/ 1 valve reliefs
Pin Style	Floating
Material	Forged, 4032
UCR Coating	Gas Nitrided
Pin Diameter	21.0mm
OCR Thickness	2.8mm
LCR Thickness	1.2mm
Piston Ring Thickness	1.0mm, 1.2mm, 2.8mm
UCR Thickness	1.0mm
Pin Wall Thickness	0.197
Crown Volume	-7.2cc
UCR Material	Stainless Steel
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Yes/No	Yes
Clips Included	N
File Fit	N
Pins Included	N
Rings Included	N
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
Country of Origin	US
Quantity per Application	6
