Mahle Motorsport Engine Piston - 930101105-1

Name: Mahle Motorsport Engine Piston - 930101105-1
SKU: 930101105-1
Price: 144.80 USD
Availability: OutOfStock

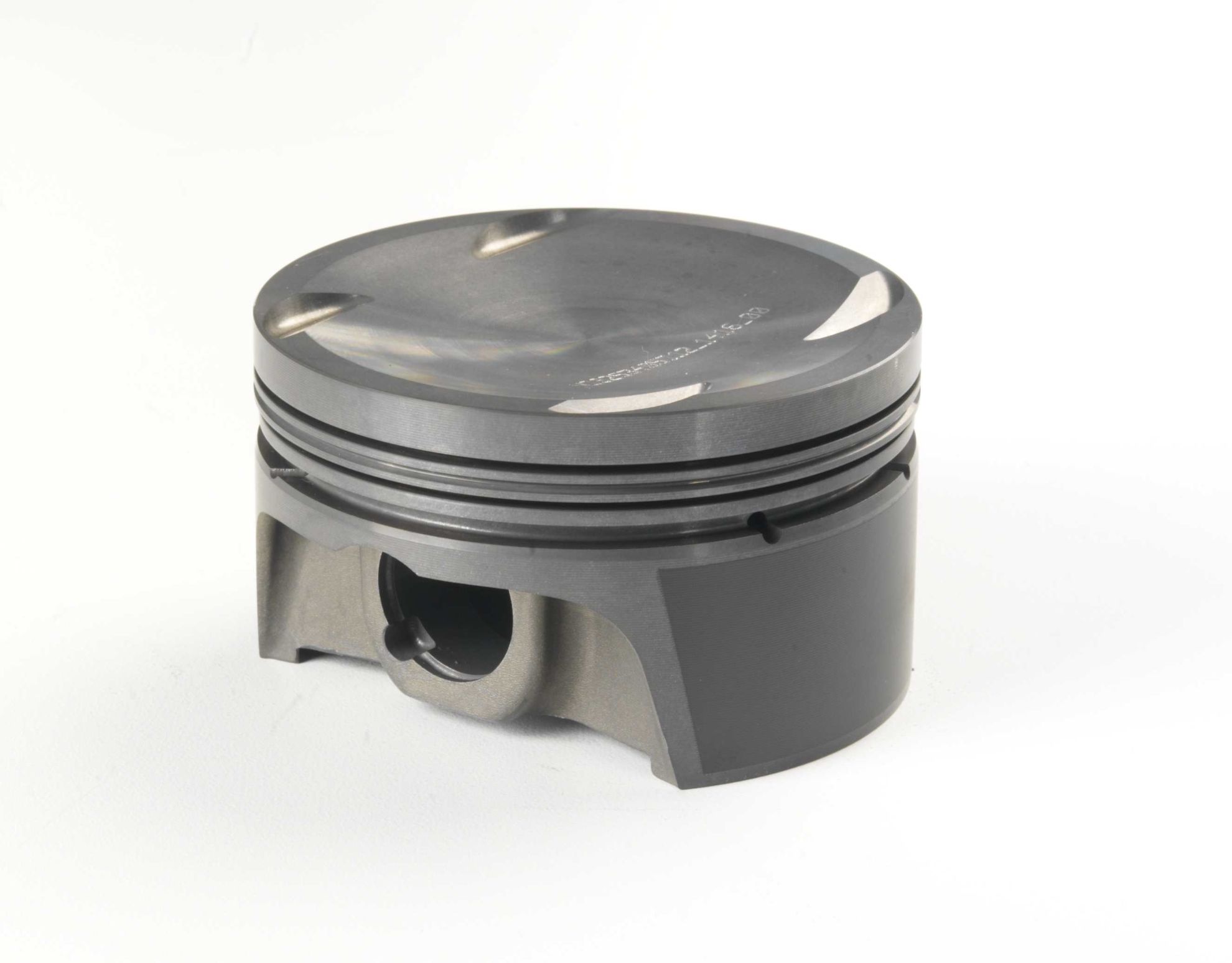

Piston (ea) - NISSAN SR20DET (SILVIA) 2.0L

Manufacturer: Mahle Motorsport

Manufacturer part number: 930101105-1

Old price: $157.39

Price: $144.80

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

86.50mm x 31.83mm CH, 86.0mm stroke,136mm rod,22mm pin,-11.5cc,309g,8.5CR, 4032, SINGLE PISTON

Note: Replacement piston for kit 930101105, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Crown Volume	11.5cc
Pin Wall Thickness	0.197
LCR Thickness	1.2mm
UCR Thickness	1.2mm
Piston Ring Thickness	1.2mm, 1.2mm, 2.8mm
Pin Mass	101g
OCR Thickness	2.8mm
Pin Diameter	22.0mm
Piston Mass	309g
Pin Length	52.0mm
LCR Material	Cast Iron
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
Piston Style	Dish, w/ 4 valve reliefs
Pin Style	Floating
Material	Forged, 4032
UCR Coating	Gas Nitrided
Clips Included	N
File Fit	N
Pins Included	N
Rings Included	N
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
UCR Material	Stainless Steel
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Yes/No	Yes
Country of Origin	US
Quantity per Application	4
