Mahle Motorsport Engine Piston - 930239010-1

Name: Mahle Motorsport Engine Piston - 930239010-1
SKU: 930239010-1
Price: 111.70 USD
Availability: InStock

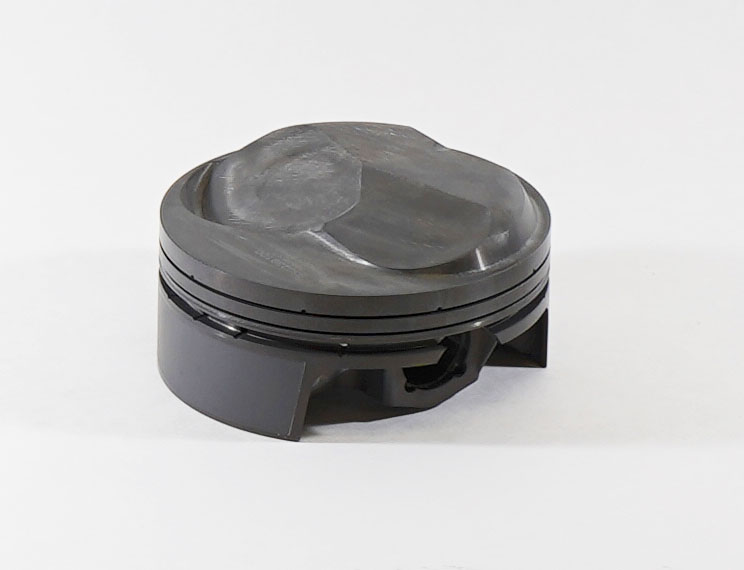

Piston (ea) - BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 24 Deg/25 Deg

Manufacturer: Mahle Motorsport

Manufacturer part number: 930239010-1

Old price: $121.41

Price: $111.70

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

584cid 4.610 x 1.060RCH, 4.375stroke,6.535rod,0.990pin,40.0cc,604g,14.5CR, 2618, SINGLE PISTON

Note: Replacement piston for kit 930239010, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Piston Ring Thickness	.043, .043, 3.0mm
LCR Thickness	0.043
UCR Thickness	0.043
Pin Wall Thickness	0.18
Pin Mass	171g
Pin Diameter	25.146mm
OCR Thickness	3.0mm
Crown Volume	40.0cc
Piston Mass	604g
Pin Length	74.42mm
Prop 65 (C, R or CR)	CR
Piston Style	Dome, w/ INT valve relief
Pin Style	Floating
Material	Forged, 2618
Clips Included	N
Pins Included	N
Rings Included	N
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Yes/No	Yes
Country of Origin	US
Quantity per Application	8
