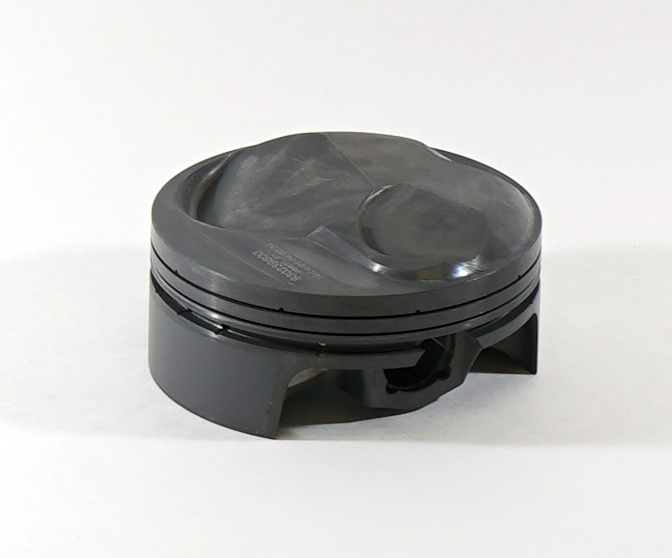

Mahle Motorsport Engine Piston - 930239700-1

Name: Mahle Motorsport Engine Piston - 930239700-1
SKU: 930239700-1
Price: 111.70 USD
Availability: InStock

Piston (ea) - BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 20 Deg

Manufacturer: Mahle Motorsport

Manufacturer part number: 930239700-1

Old price: $121.41

Price: $111.70

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

582cid 4.600 x 1.060RCH, 4.375stroke,6.535rod,0.990pin,28.0cc,594g,15.9CR, 2618, SINGLE PISTON

Note: Replacement piston for kit 930239700, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
OCR Thickness	3.0mm
Piston Mass	594g
Pin Length	74.42mm
Prop 65 (C, R or CR)	CR
Piston Style	Dome, w/ INT valve relief
Pin Style	Floating
Material	Forged, 2618
Clips Included	N
Pins Included	N
Rings Included	N
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Yes/No	Yes
Crown Volume	28.0cc
Pin Diameter	25.146mm
Pin Mass	171g
Pin Wall Thickness	0.18
UCR Thickness	0.043
LCR Thickness	0.043
Piston Ring Thickness	.043, .043, 3.0mm
Country of Origin	US
Quantity per Application	8
