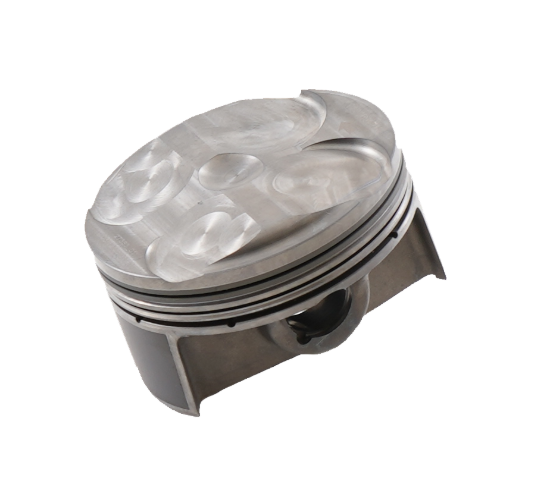

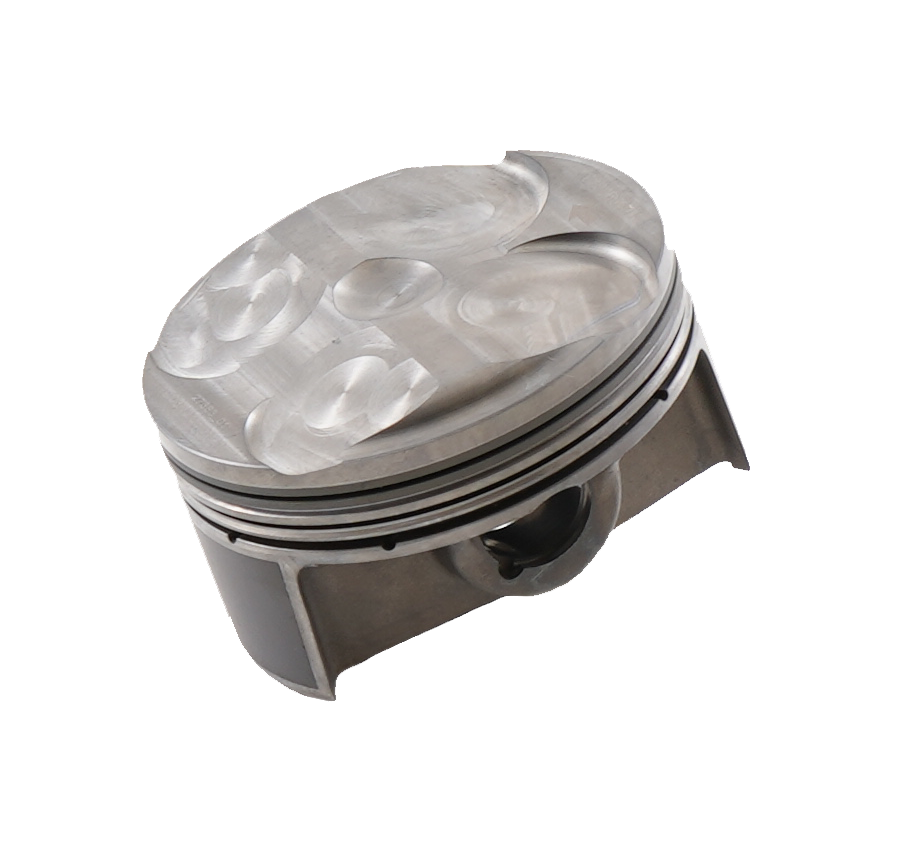

Mahle Motorsport Engine Piston - 930258401-1

Name: Mahle Motorsport Engine Piston - 930258401-1
SKU: 930258401-1
Price: 111.70 USD
Availability: OutOfStock

Piston (ea) - FORD 5.2L VOODOO DROP-IN FORGED REPLACMENT ASSEMBLY

Manufacturer: Mahle Motorsport

Manufacturer part number: 930258401-1

Old price: $121.41

Price: $111.70

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

315cid 3.701 x 1.161CH, 3.661stroke,5.933rod,0.827pin,7.8cc,380g,12.0CR, M142P, SINGLE PISTON

Note: Replacement piston for kit 930258401, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Pin Wall Thickness	0.187
UCR Thickness	1.0mm
Piston Ring Thickness	1.0mm, 1.2mm, 2.0mm
LCR Thickness	1.2mm
Pin Mass	100g
OCR Thickness	2.0mm
Pin Diameter	21.0mm
Piston Mass	380g
Pin Length	54.3mm
Crown Volume	-7.8cc
LCR Material	9254 Steel
UCR Material	9254 Steel
LCR Coating	Chrome
Prop 65 (C, R or CR)	CR
Piston Style	Dome, w/ 4 valve reliefs
Pin Style	Floating
Material	Forged, M142P
UCR Coating	HV385
Clips Included	N
File Fit	N
Pins Included	N
Rings Included	N
OCR Material	Nitrided stainless steel
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Yes/No	Yes
Country of Origin	US
Quantity per Application	8
