Mahle Motorsport Engine Piston Set - 930077100

Name: Mahle Motorsport Engine Piston Set - 930077100
SKU: 930077100
Price: 850.34 USD
Availability: OutOfStock

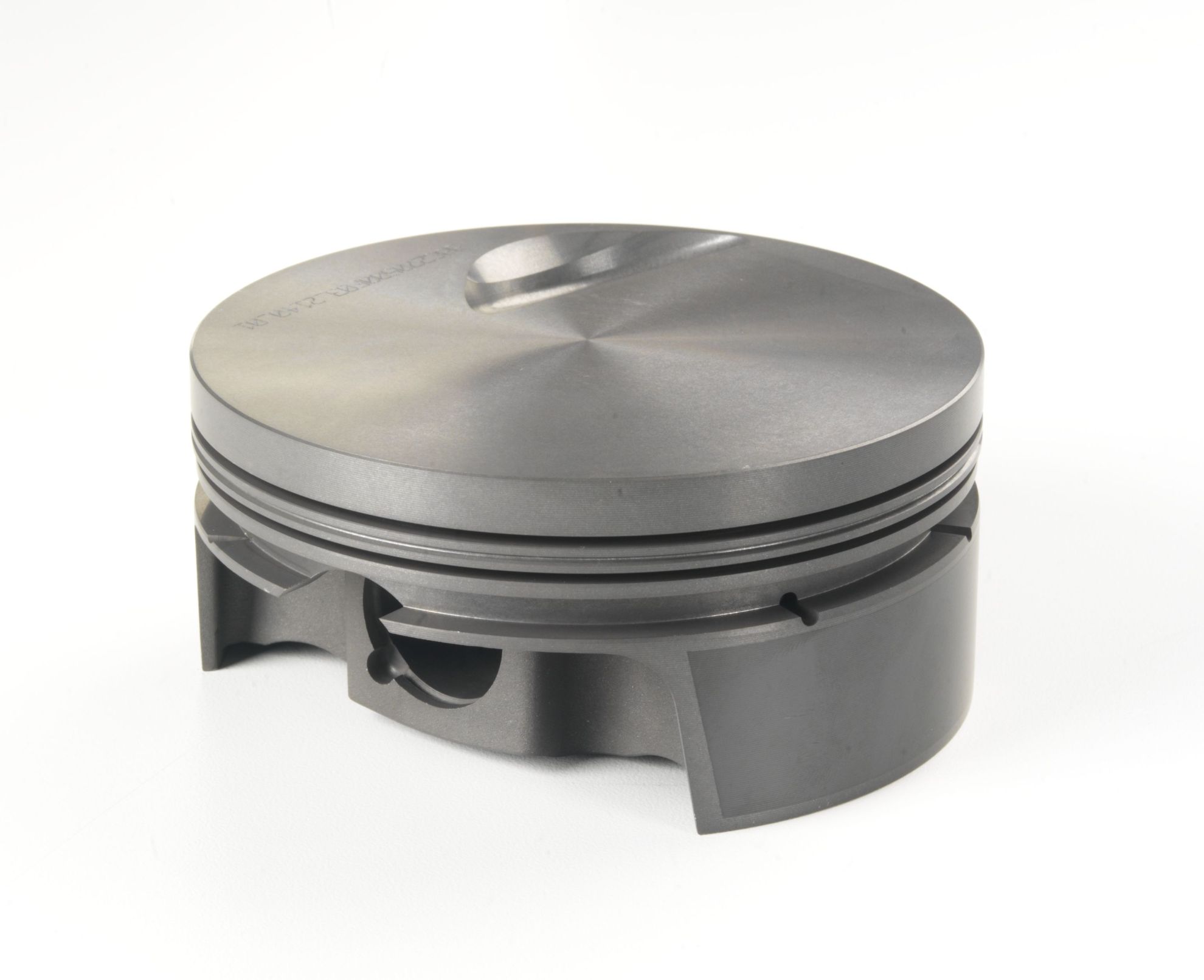

Piston (set) - BIG BLOCK CHEVY 502 MARINE "DROP IN" REPLACEMENT

Manufacturer: Mahle Motorsport

Manufacturer part number: 930077100

Old price: $924.29

Price: $850.34

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

509cid 4.500 x 1.645CH, 4.000stroke,6.135rod,0.990pin,-3.0cc,661g,8.9CR, 4032

Note: Coatings: Phosphate + Grafal

Products specifications

Attribute name	Attribute value
Crown Volume	-3.0cc
Pin Wall Thickness	0.22
LCR Thickness	1/16
UCR Thickness	1/16
Piston Ring Thickness	1/16, 1/16, 3/16
Pin Mass	171g
Pin Diameter	25.146mm
OCR Thickness	3/16
Pin Length	64.0mm
Piston Mass	661g
LCR Material	Cast Iron
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
UCR Material	Ductile Iron
Piston Style	Flattop, w/ INT valve relief
Pin Style	Floating
Material	Forged, 4032
LCR Coating	Phosphate
UCR Coating	Plasma Moly
Clip Style	Round Wire

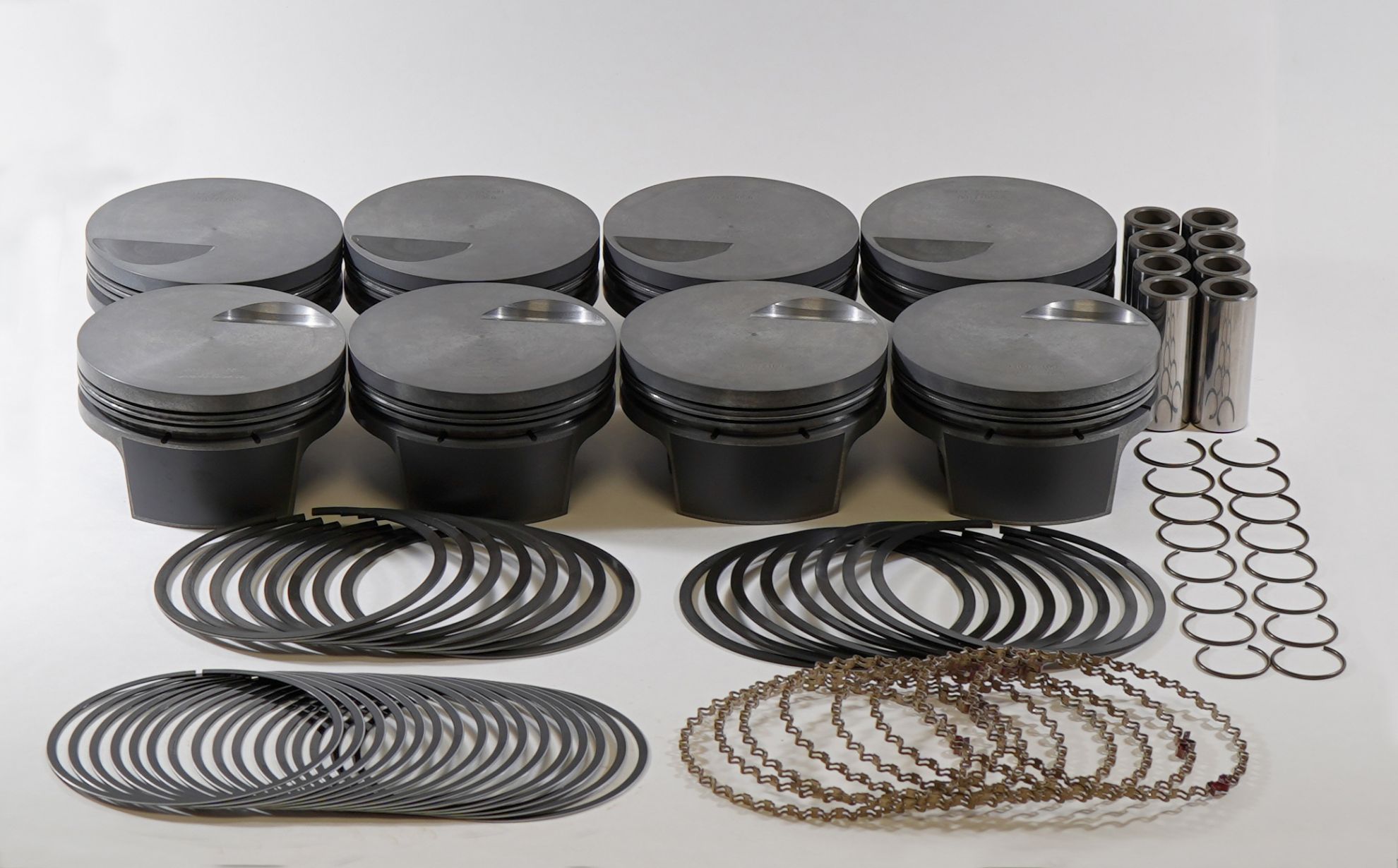

Package Quantity	Sold as a set of 8
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Clips Included	Y
File Fit	Y
Pins Included	Y
Rings Included	Y
Prop 65 Yes/No	Yes
Country of Origin	US
