Mahle Motorsport Engine Piston Set - 930220190T

Name: Mahle Motorsport Engine Piston Set - 930220190T
SKU: 930220190T
Price: 1348.27 USD
Availability: OutOfStock

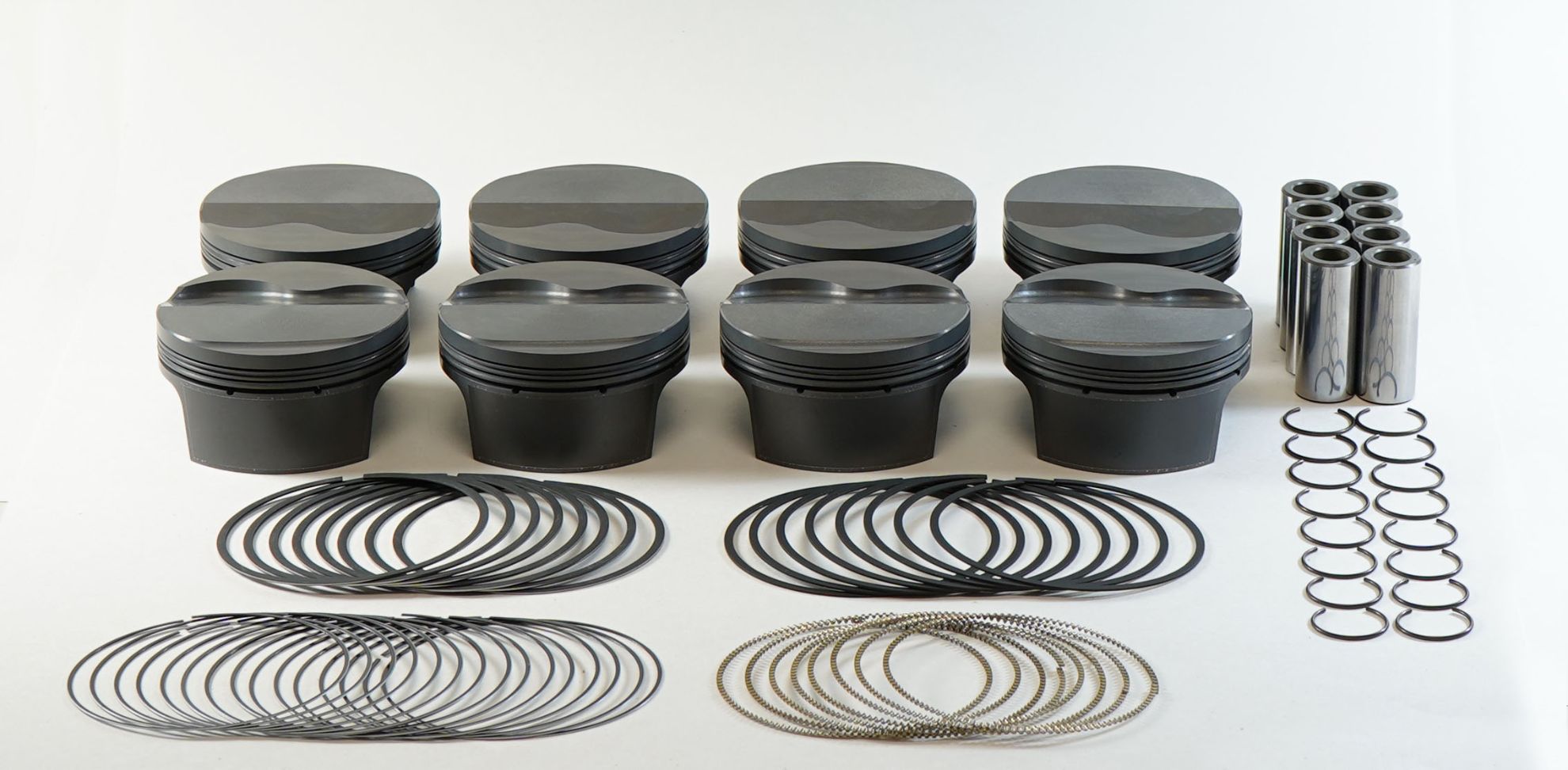

Piston (set) - LS 5.3L DOME - compatible with LS1/2/6 style cathedral port heads

Manufacturer: Mahle Motorsport

Manufacturer part number: 930220190T

Old price: $1,465.51

Price: $1,348.27

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

327cid 3.790 x 1.299CH, 3.622stroke,6.125rod,0.927pin,14.0cc,453g,12.5CR, 2618, TBC coated

Note: Lateral gas ports, Coatings: Phosphate + Grafal + Hard Anodized top ring groove + TBC

Products specifications

Attribute name	Attribute value
Pin Wall Thickness	0.188
LCR Thickness	1.0mm
UCR Thickness	1.0mm
Piston Ring Thickness	1.0mm, 1.0mm, 2.0mm
Pin Mass	128g
Crown Volume	-14.0cc
OCR Thickness	2.0mm
Pin Diameter	23.55mm
Piston Mass	453g
Pin Length	58.1mm
LCR Material	9254 Steel
UCR Material	9254 Steel
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
Piston Style	Dome, w/ 2 valve reliefs
Pin Style	Floating
Material	Forged, 2618
UCR Coating	HV385
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 8
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Clips Included	Y
File Fit	Y
Pins Included	Y
Rings Included	Y
Prop 65 Yes/No	Yes
Country of Origin	US
