Mahle Motorsport Engine Piston Set - 930258601

Name: Mahle Motorsport Engine Piston Set - 930258601
SKU: 930258601
Price: 1004.18 USD
Availability: InStock

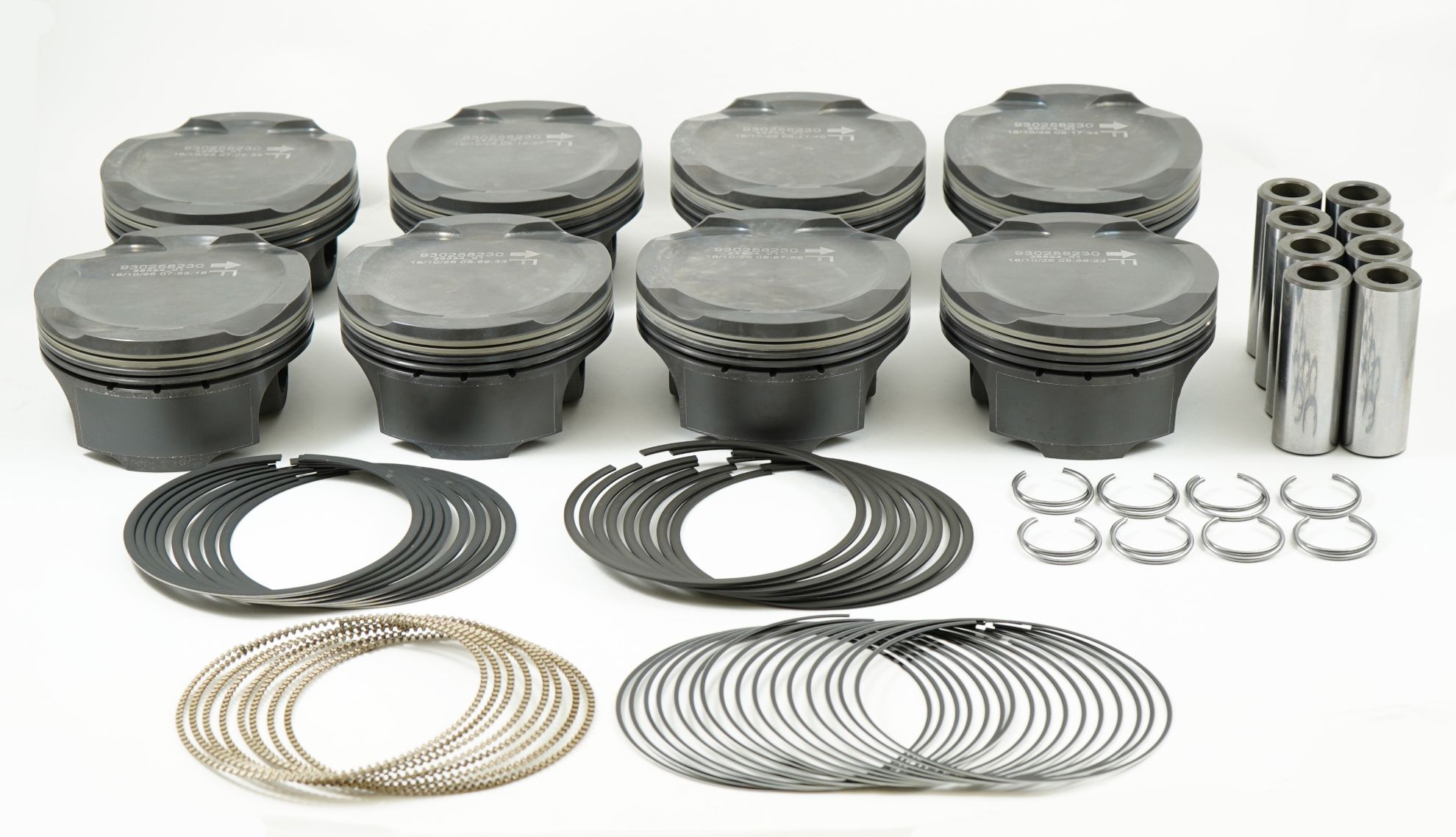

Piston (set) - FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO

Manufacturer: Mahle Motorsport

Manufacturer part number: 930258601

Old price: $1,091.50

Price: $1,004.18

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

314cid 3.701 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-1cc,370g,11.0CR, 2618

Note: Coatings: Phosphate + Grafal + Hard Anodized top ring groove

Products specifications

Attribute name	Attribute value
Crown Volume	-1cc
Pin Wall Thickness	0.177
LCR Thickness	1.0mm
UCR Thickness	1.0mm
Piston Ring Thickness	1.2mm, 1.2mm, 2.5mm
Pin Mass	118g
OCR Thickness	2.0mm
Pin Diameter	22.0mm
Piston Mass	370g
Pin Length	61.1mm
LCR Material	9254 Steel
UCR Material	9254 Steel
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
Piston Style	Dome, w/ 4 valve reliefs
Pin Style	Floating
Material	Forged, 2618
UCR Coating	HV385
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 8
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Clips Included	Y
File Fit	Y
Pins Included	Y
Rings Included	Y
Prop 65 Yes/No	Yes
Country of Origin	US
