McLeod Transmission Clutch and Flywheel Kit - 4979-00-05

Name: McLeod Transmission Clutch and Flywheel Kit - 4979-00-05
SKU: 4979-00-05
Price: 2150.00 USD
Availability: OutOfStock

Soft Lok: Ford 1958-76 BBF Fe 332-428: 10.5 x 1-3/16 x 18: 184T

Manufacturer: McLeod

Manufacturer part number: 4979-00-05

Old price: $2,687.50

Price: $2,150.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

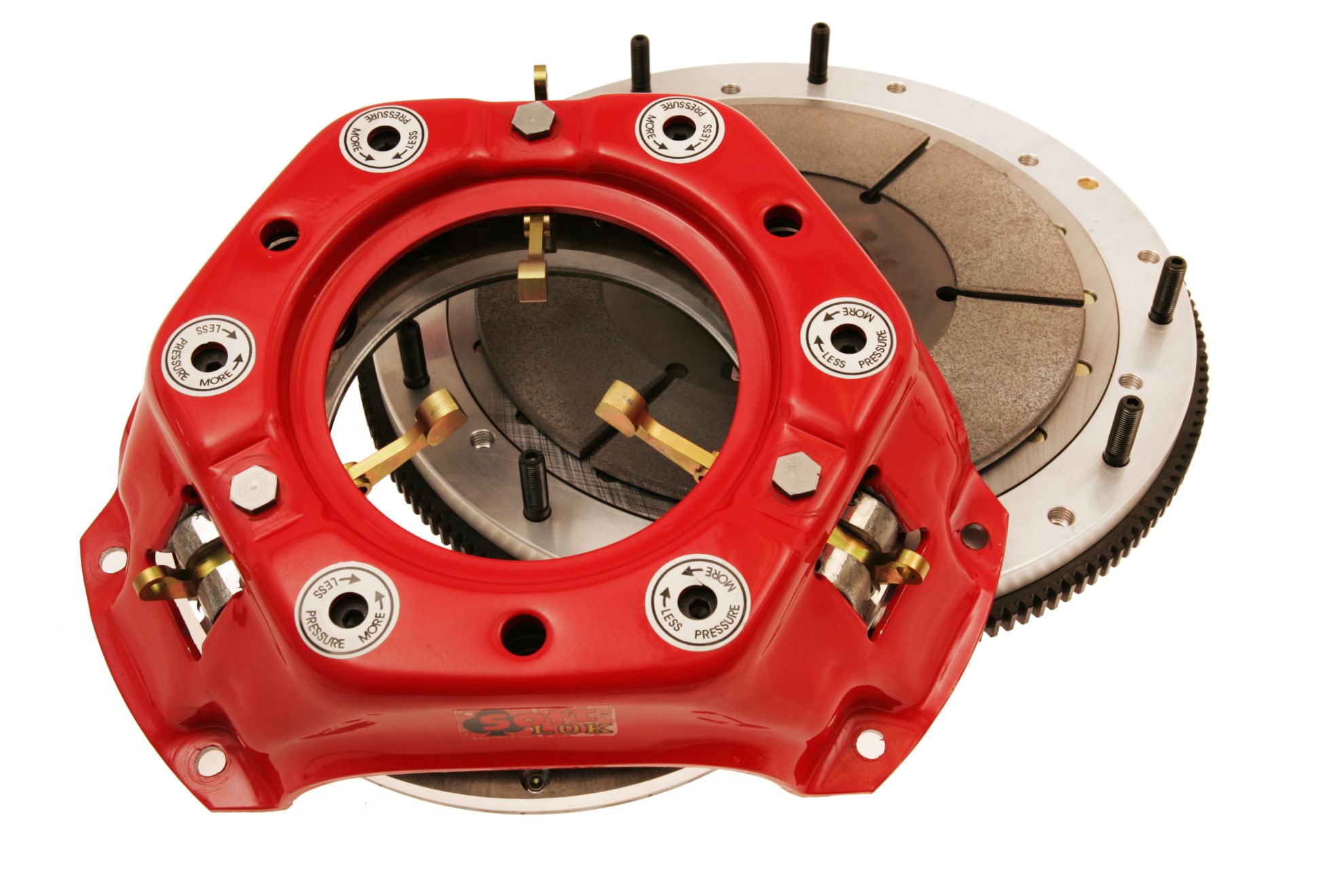

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.

Products specifications

Attribute name	Attribute value
Disc Style	Full face
Hub Style	Solid
Clutch Disc Quantity	1
Pressure Plate Style	Long
Counterweight Assist	YES
Alignment Tool Included	Yes
Hardware Included	Yes
Clutch Usage	Performance
Pilot Bushing Included	No
Throwout Bearing Included	No
Flywheel Included	Yes
Flywheel Material	Billet aluminum
Ring Gear Tooth Quantity:	184-tooth
Engine Balance	Internal
Crankshaft to Flywheel Bolt Quantity	6-bolt
Quantity	Sold as a Kit
Disc Diameter (in.)	10.500
Input Shaft Diameter (in.)	1.188
Input Spline Quantity	18
Disc Material	Sintered Iron
Country of Origin	US
Condition	New
