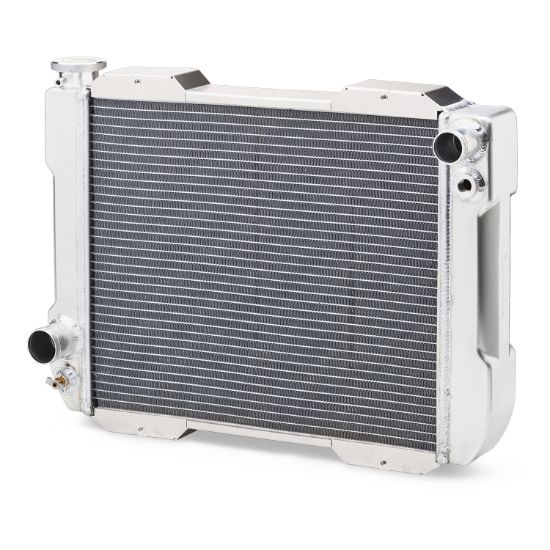

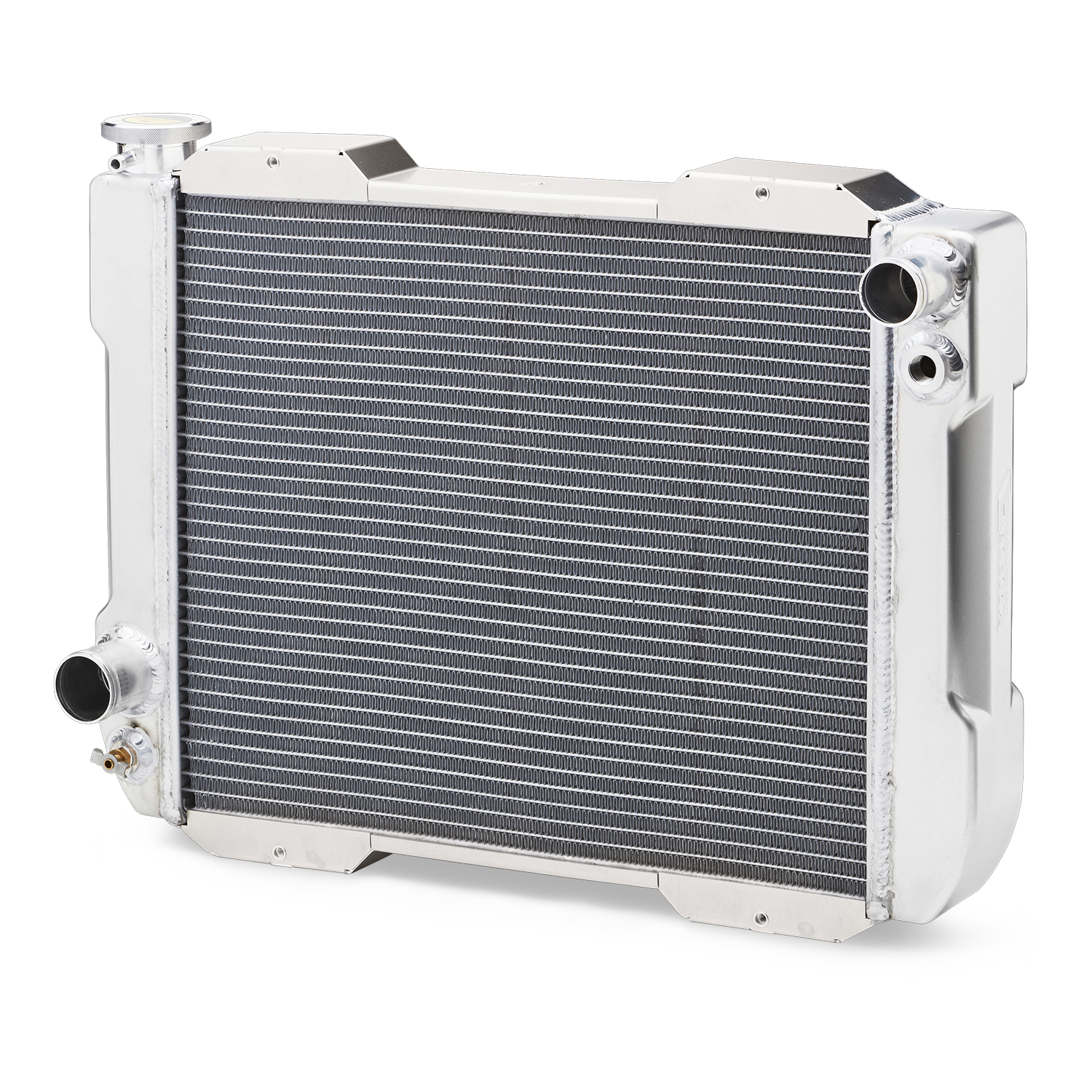

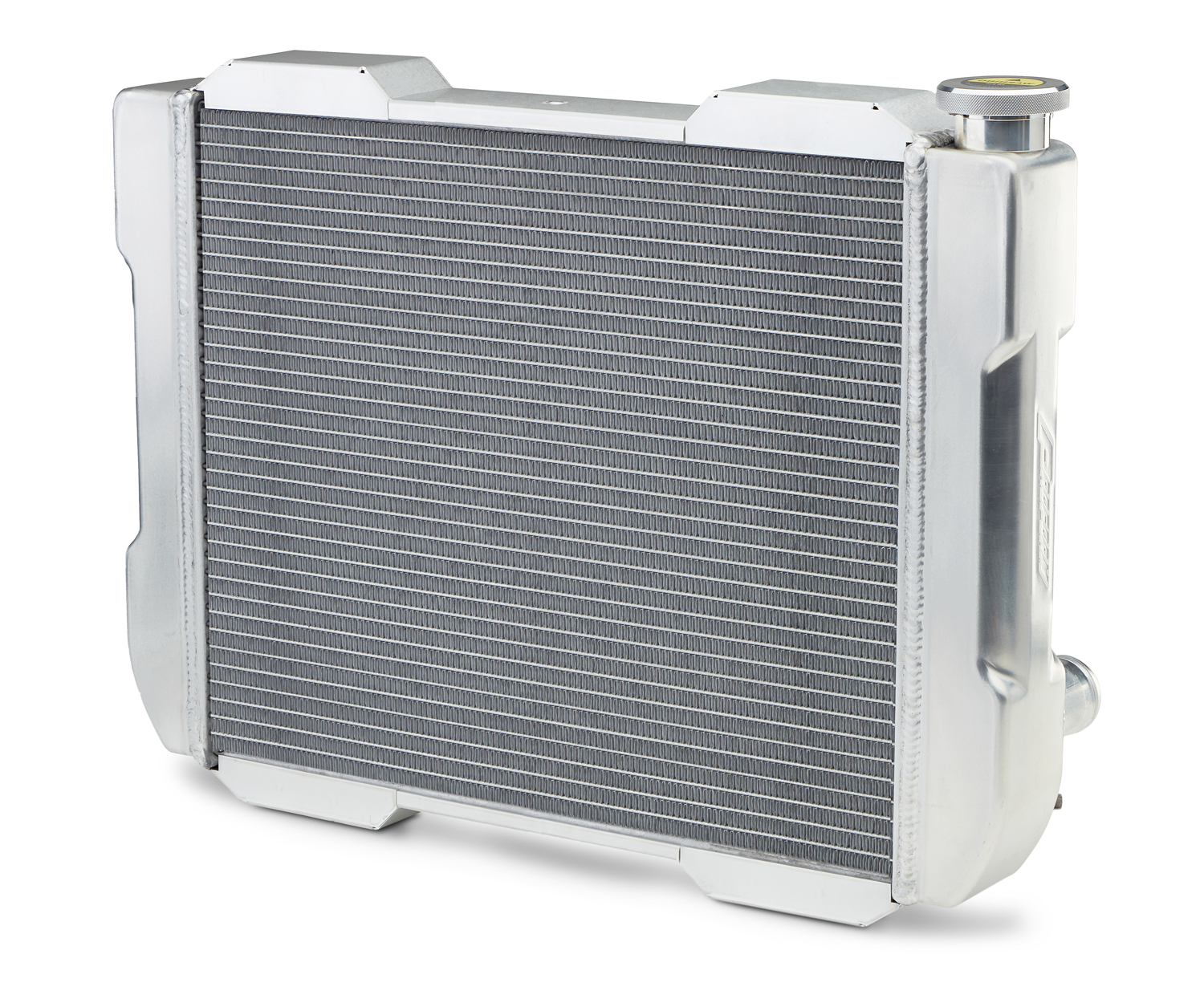

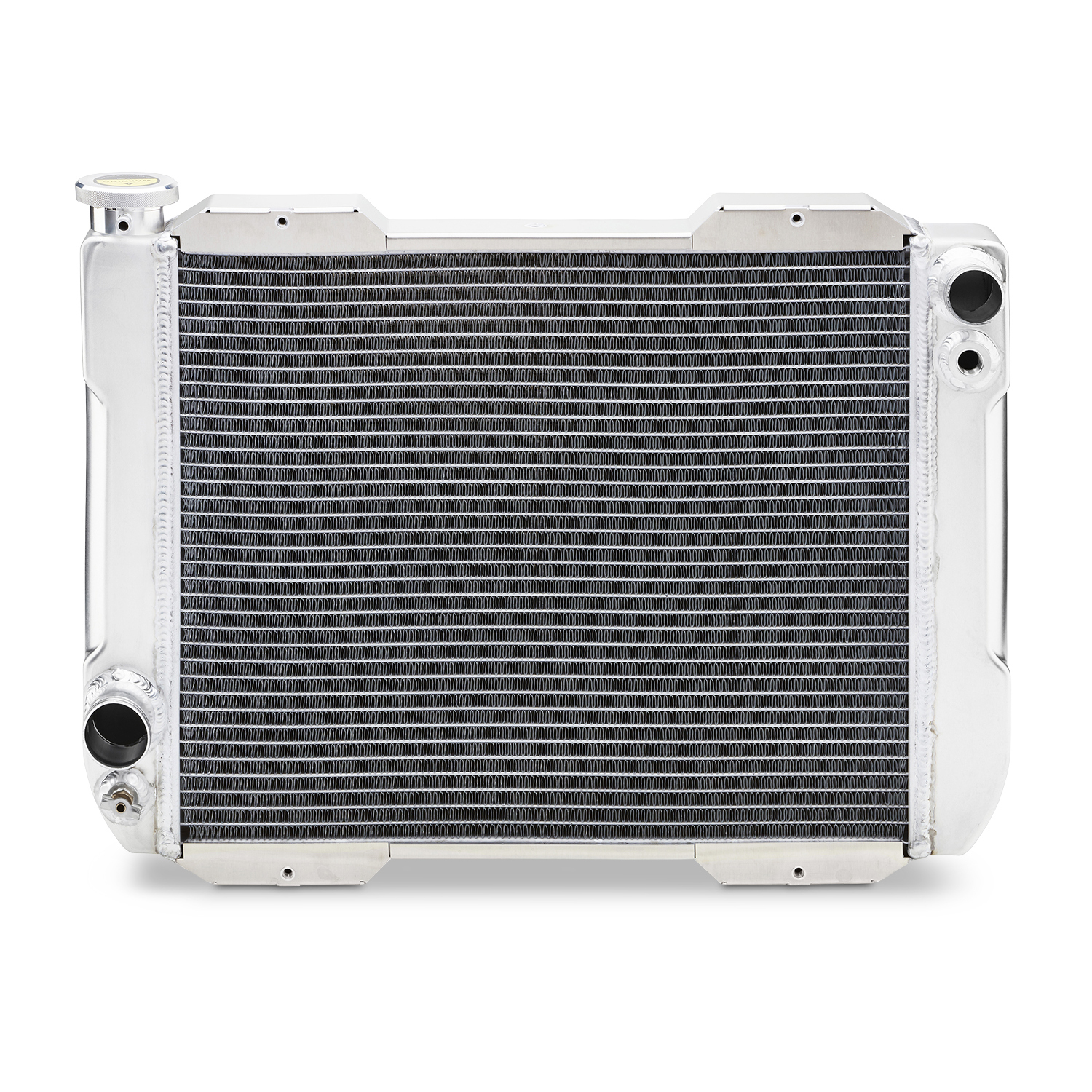

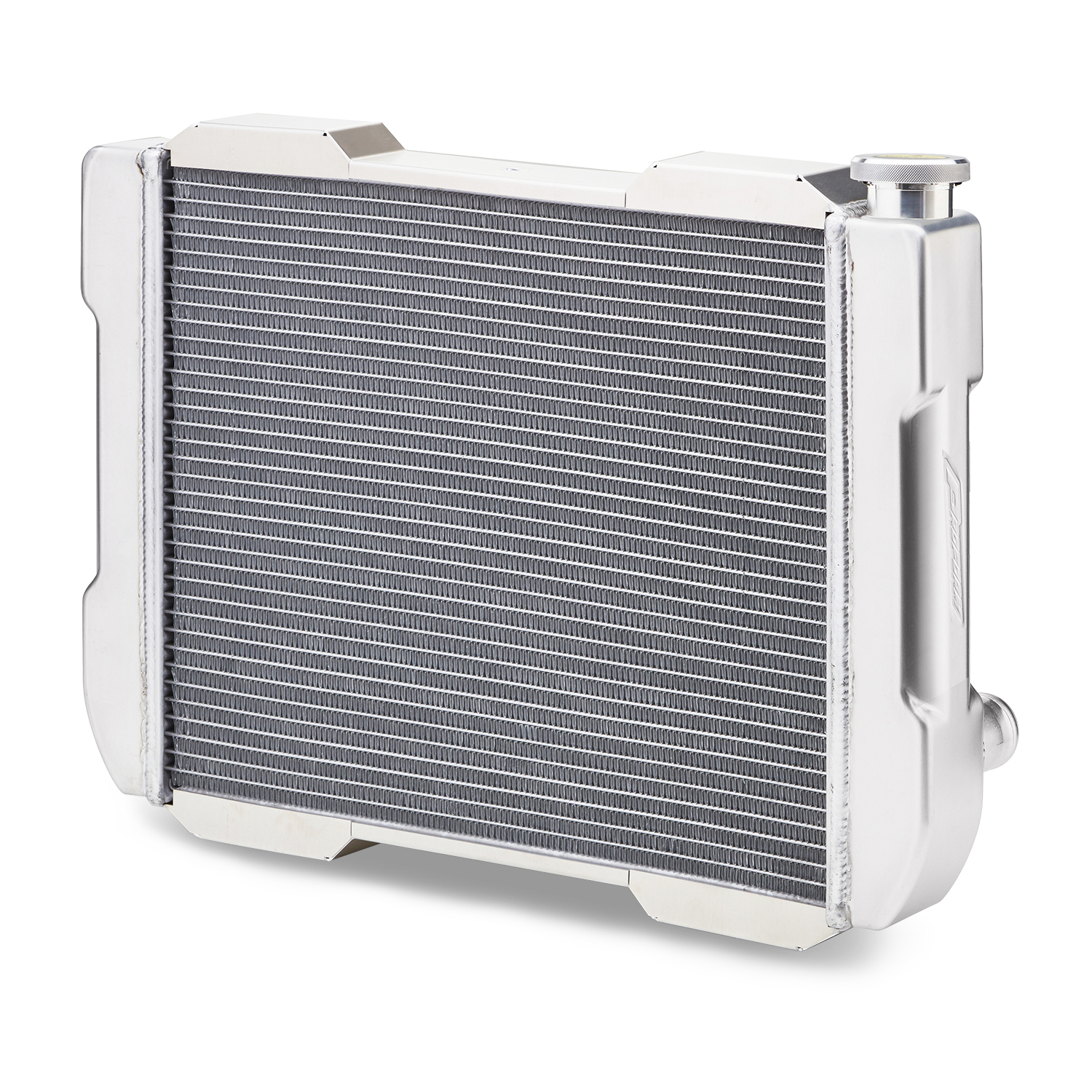

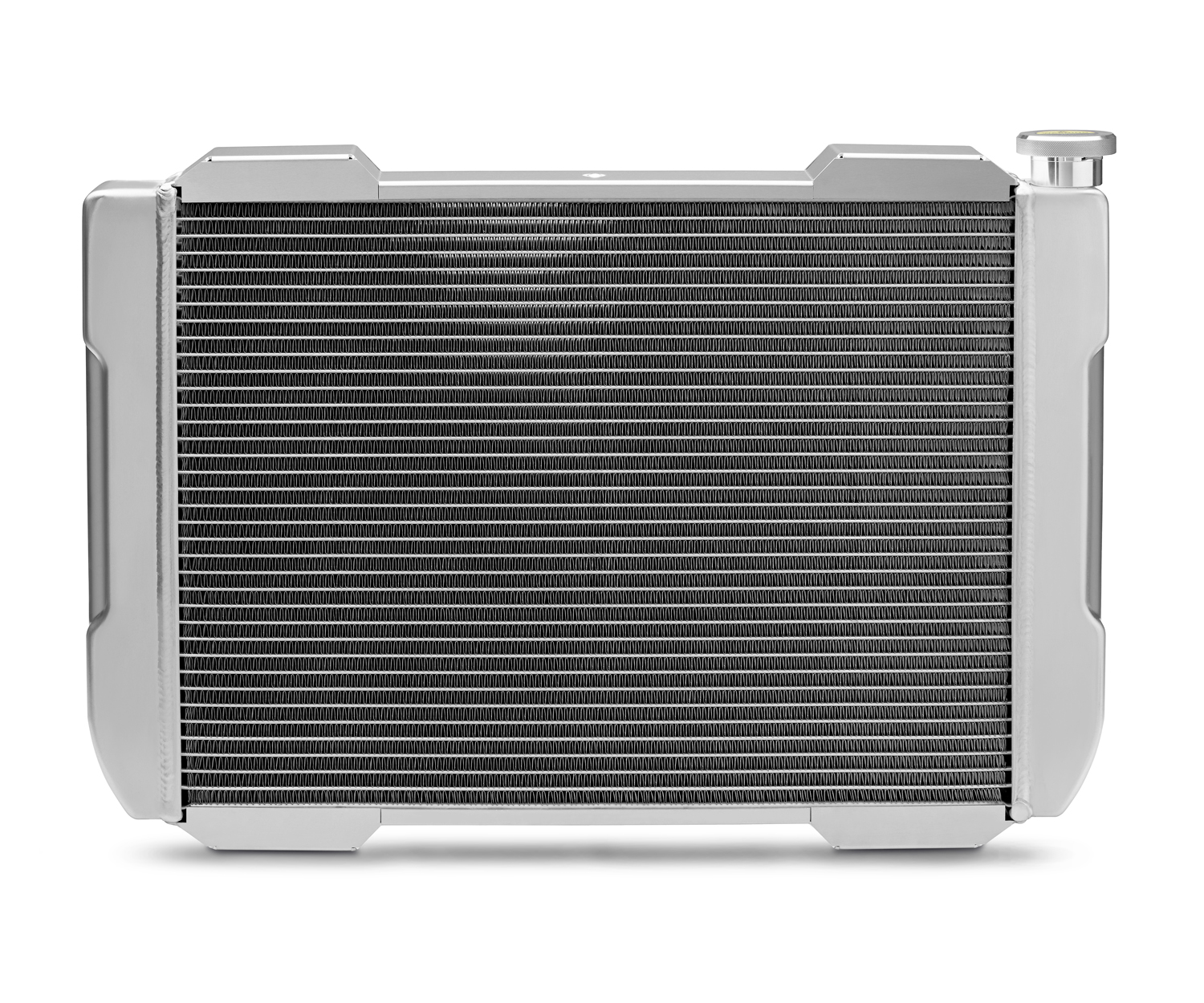

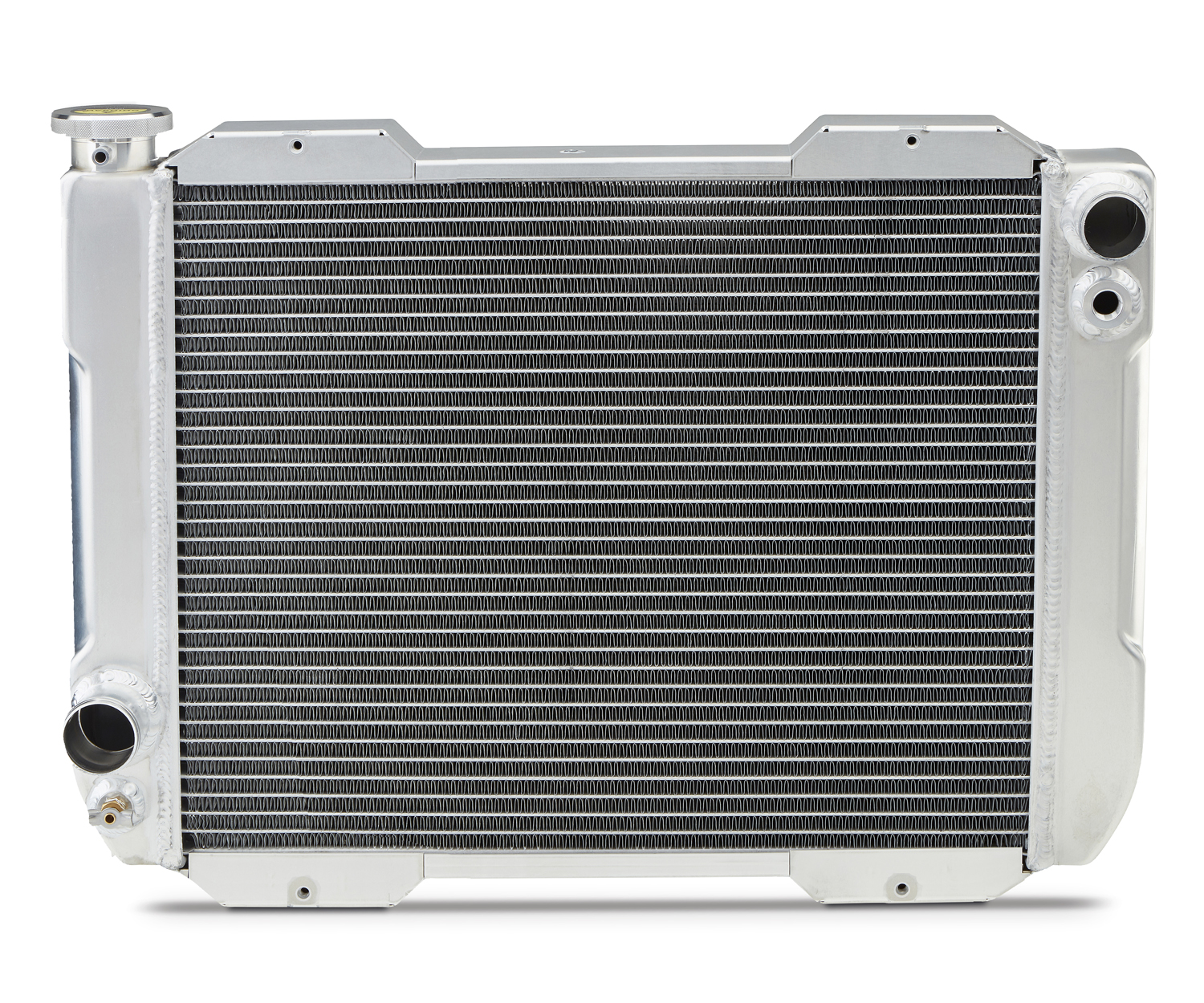

Proform Radiator - 119F000

Name: Proform Radiator - 119F000
SKU: 119F000
Price: 259.99 USD
Availability: OutOfStock

123 Series Radiator

Manufacturer: Proform

Manufacturer part number: 119F000

$259.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

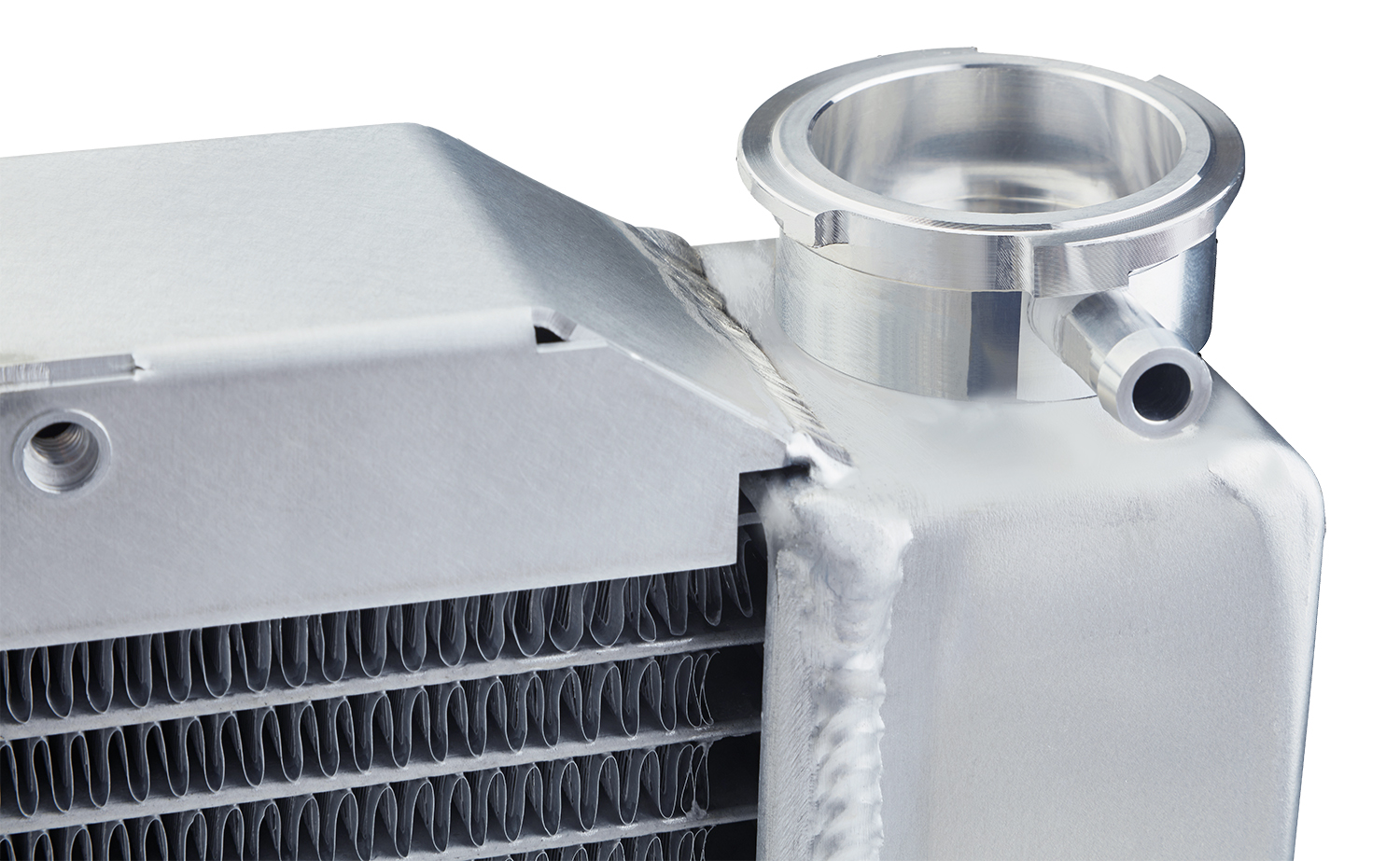

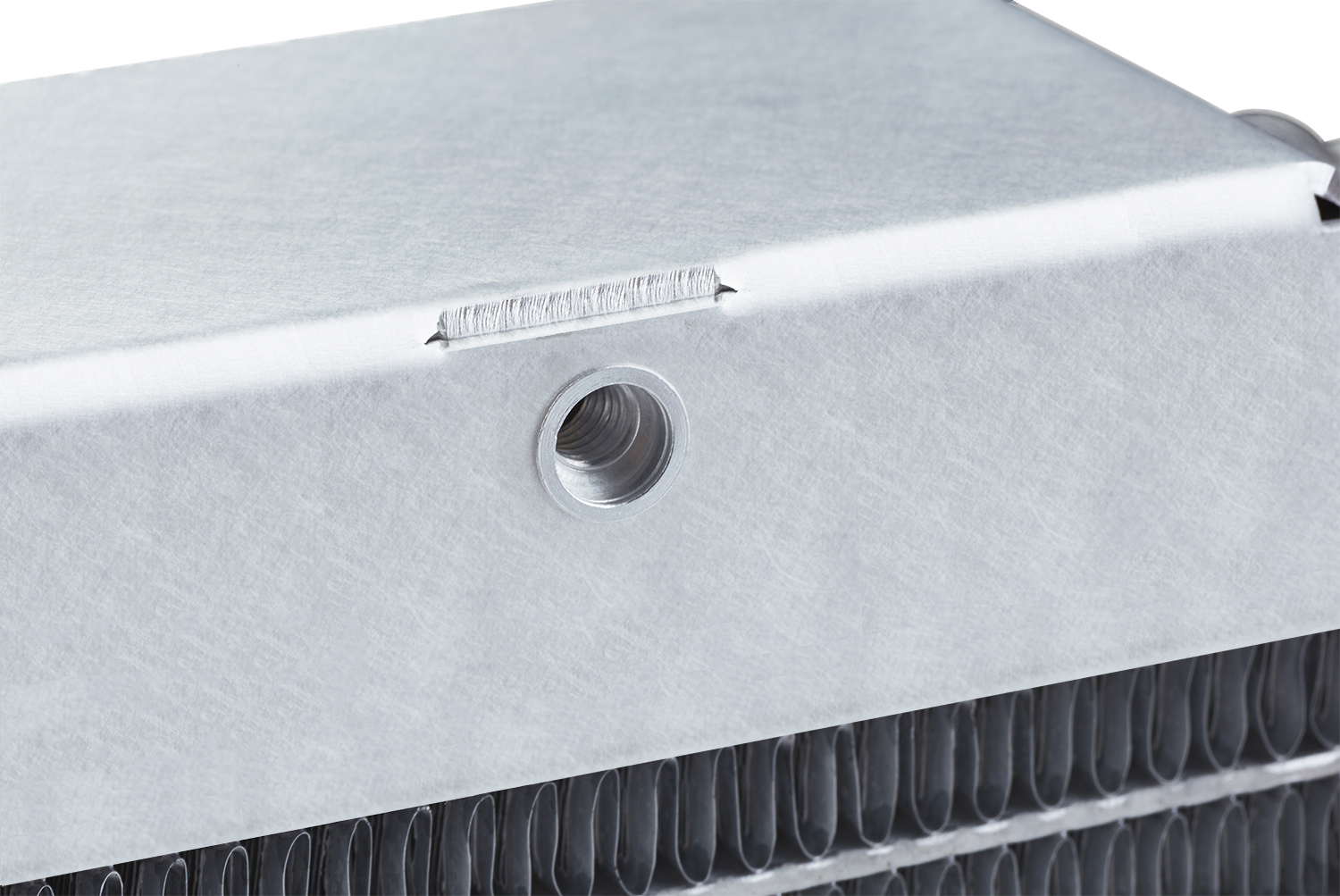

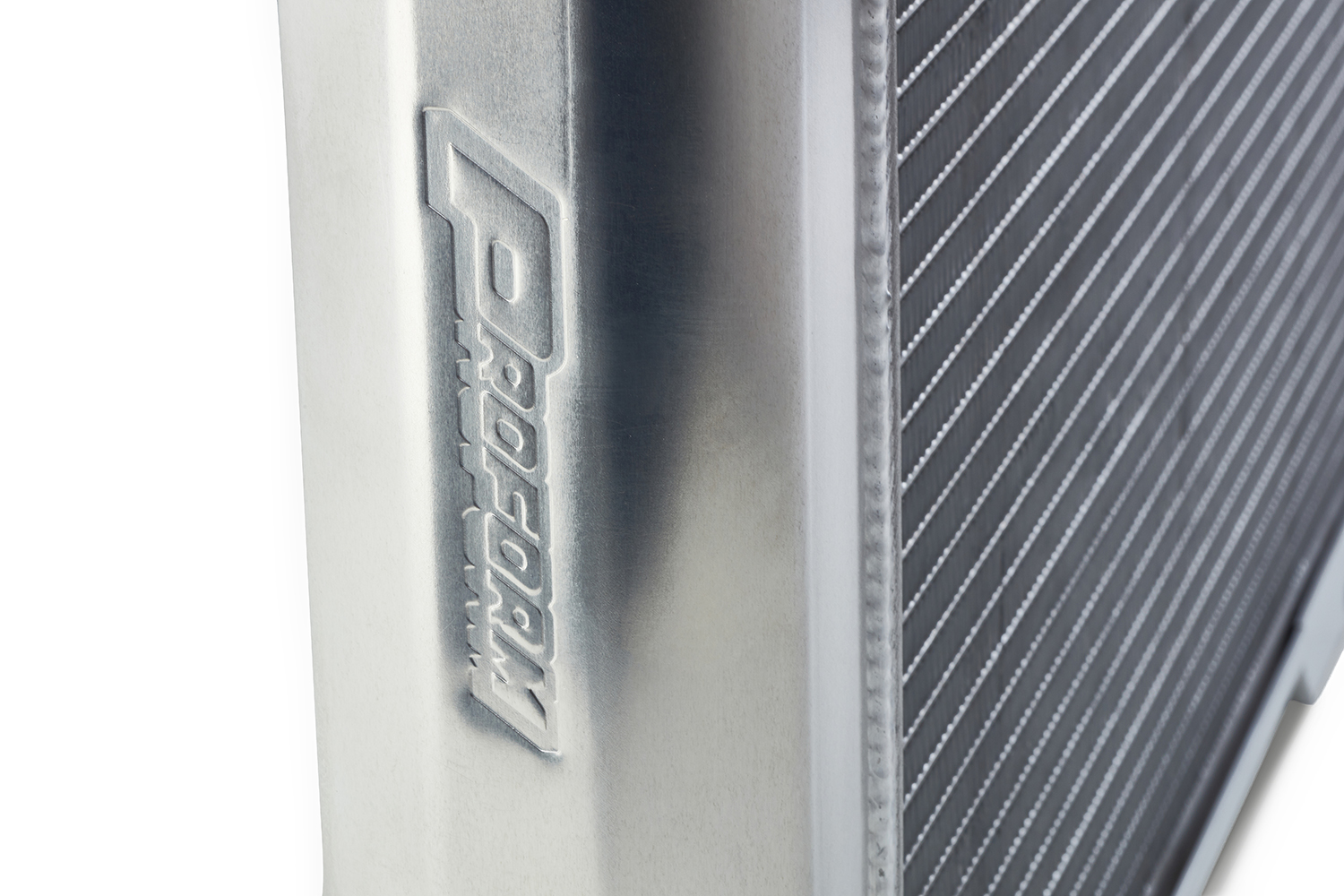

1-2-3 Radiators are just like the name implies, EASY! Proform s new line of radiators and modular accessories all fit together just like they should. These aren t just your ordinary single pass radiators, they offer beautifully tig-welded tanks with a slick looking profile design that is unique to Proform. These radiators also incorporate PROFORM s unique Four-Corner design that makes adding a shroud or bracket easy because all the mounting holes line up. All radiators are dual one inch tube, single pass, with optimized louver design to maximize cooling, and deep draw headers for an extra solid tube/header seal. No epoxy or anything else like that just tight tolerances all around. Building your custom cooling system is easy: Stage 1 -start by choosing the radiator that is the right width and inlet/outlet configuration for your vehicle

Note: 123 Series Radiator

Products specifications

Attribute name	Attribute value
Prop 65 Yes/No	Yes
Prop 65 (C, R or CR)	CR
Category	Radiators
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Shroud Color	Natural
Prop 65 Long Label	WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information see P65Warnings.ca.gov/auto-parts.
Prop 65 Warning Label	Proposition 65 Warning.JPG
Transmission Type	Manual
Core Width (in)	19
Inlet Diameter [in]	1.5
PartType	Radiator
Overall Width (in)	24.3 inch
Feature/Benefit	Stage 1 All Aluminum Radiator. Optional Shroud and Fans Available
Mounting Style	Universal
Outlet Diameter [in]	1.75
Core Tube Inside Diameter	1
Core Width	19
Down Flow Or Cross Flow Type	Cross Flow
Fan Shroud Mount Hole Shape	Round
Frame Included	Yes
Inlet Diameter	1.5
Inlet Header Length	2.75
Engine Oil Cooler Fitting Gender	Male Female
Inlet Location	Top Right
Internal Transmission Oil Cooler	No
Mounting Type	Universal
Outlet Diameter	1.75
Outlet Location	Bottom Left

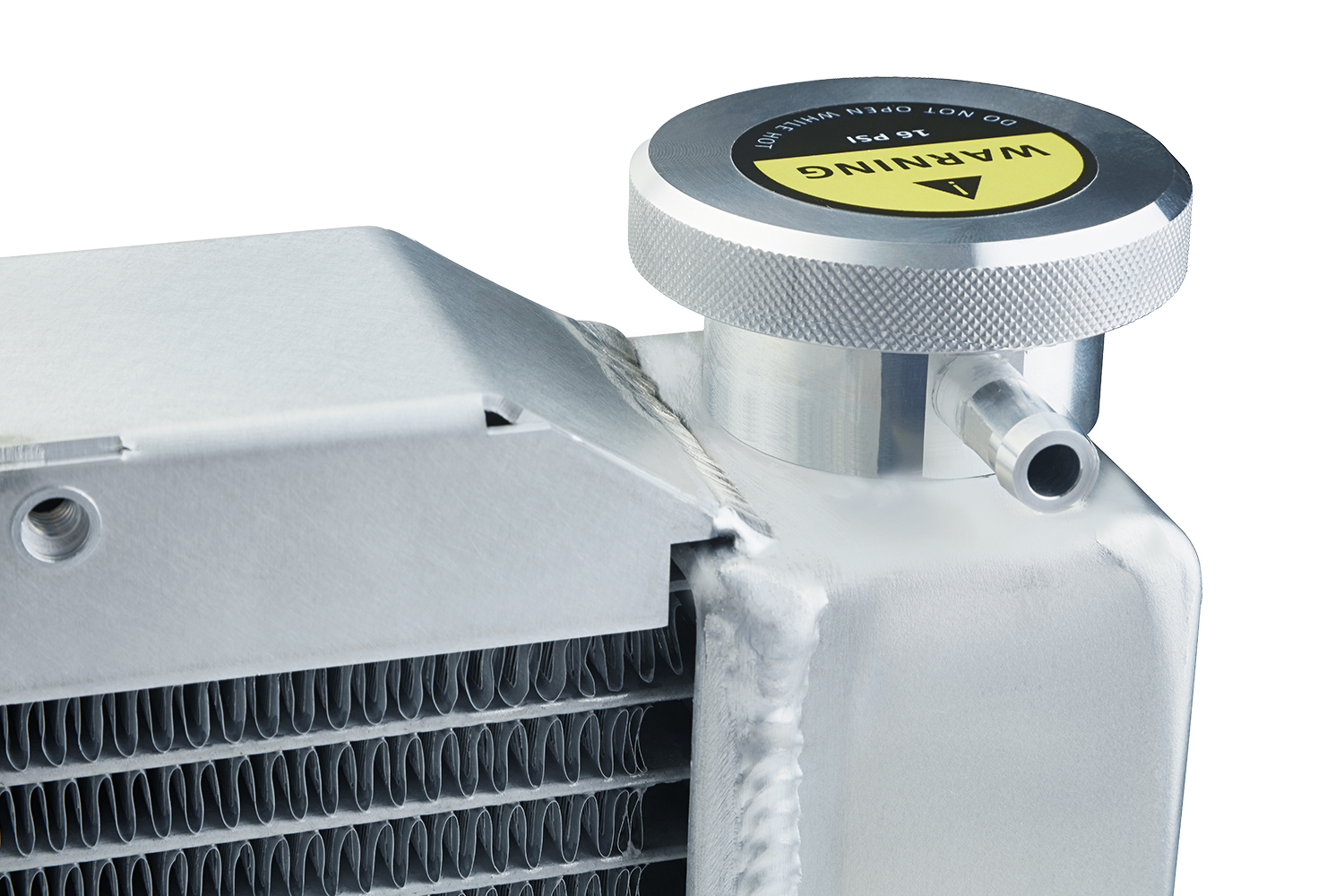

Radiator Cap Included	Yes
Tank Material	Aluminum
Thermostat Included	No
Mounting Hardware Included	No
Transmission Oil Cooler Included	Yes
Transmission Oil Cooler Plate Quantity	5
Outlet Header Width	1.75
Engine Oil Cooler Type	Standard
Coolant Hose Outlet Connection Type	1.75
Core Height	16.5
Core Material	Aluminum
Core Row Quantity	2
Core Thickness	2.4
Series	1-2-3
Coolant Hose Inlet Connection Type	Male
Country of Origin	TW
