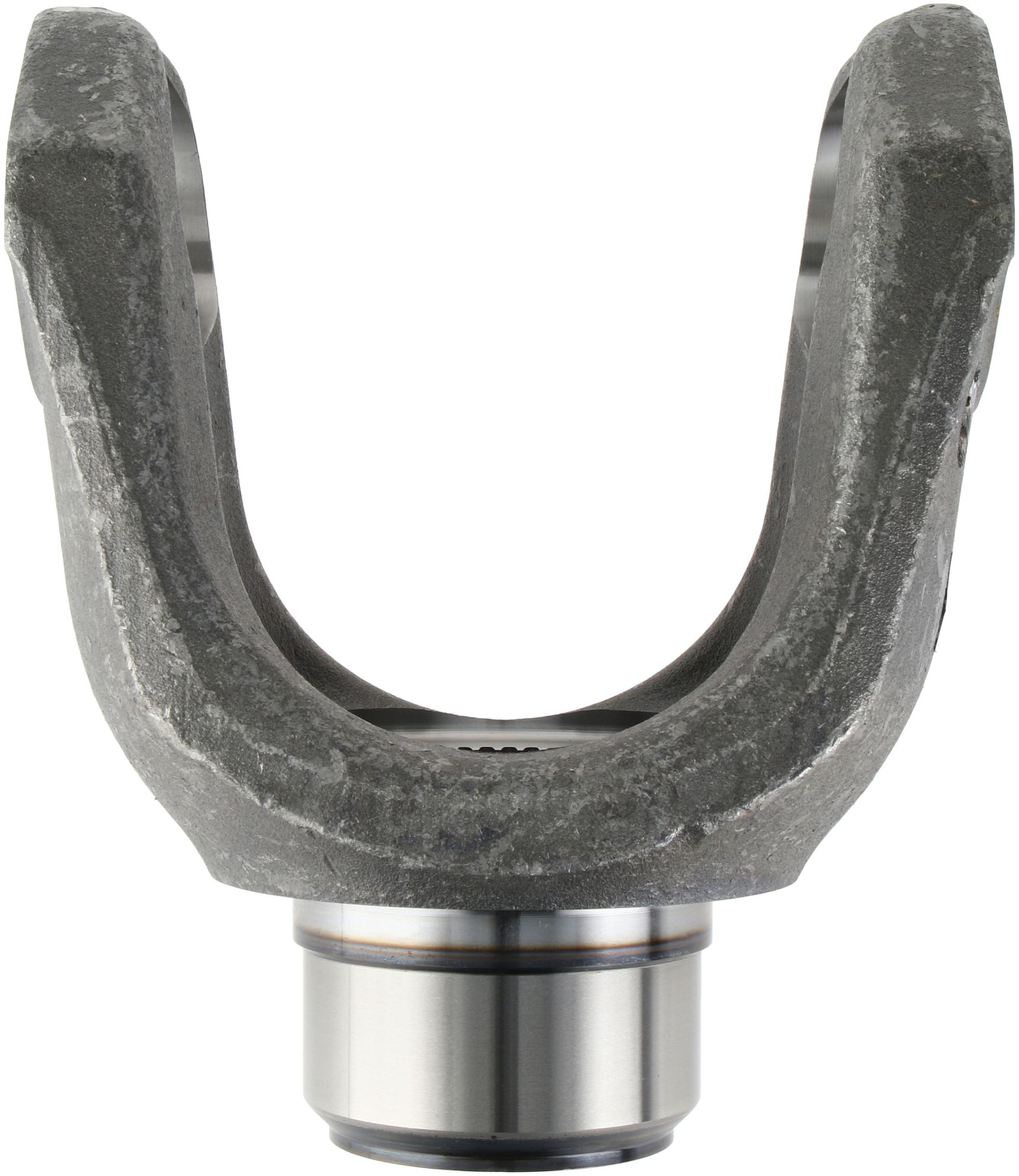

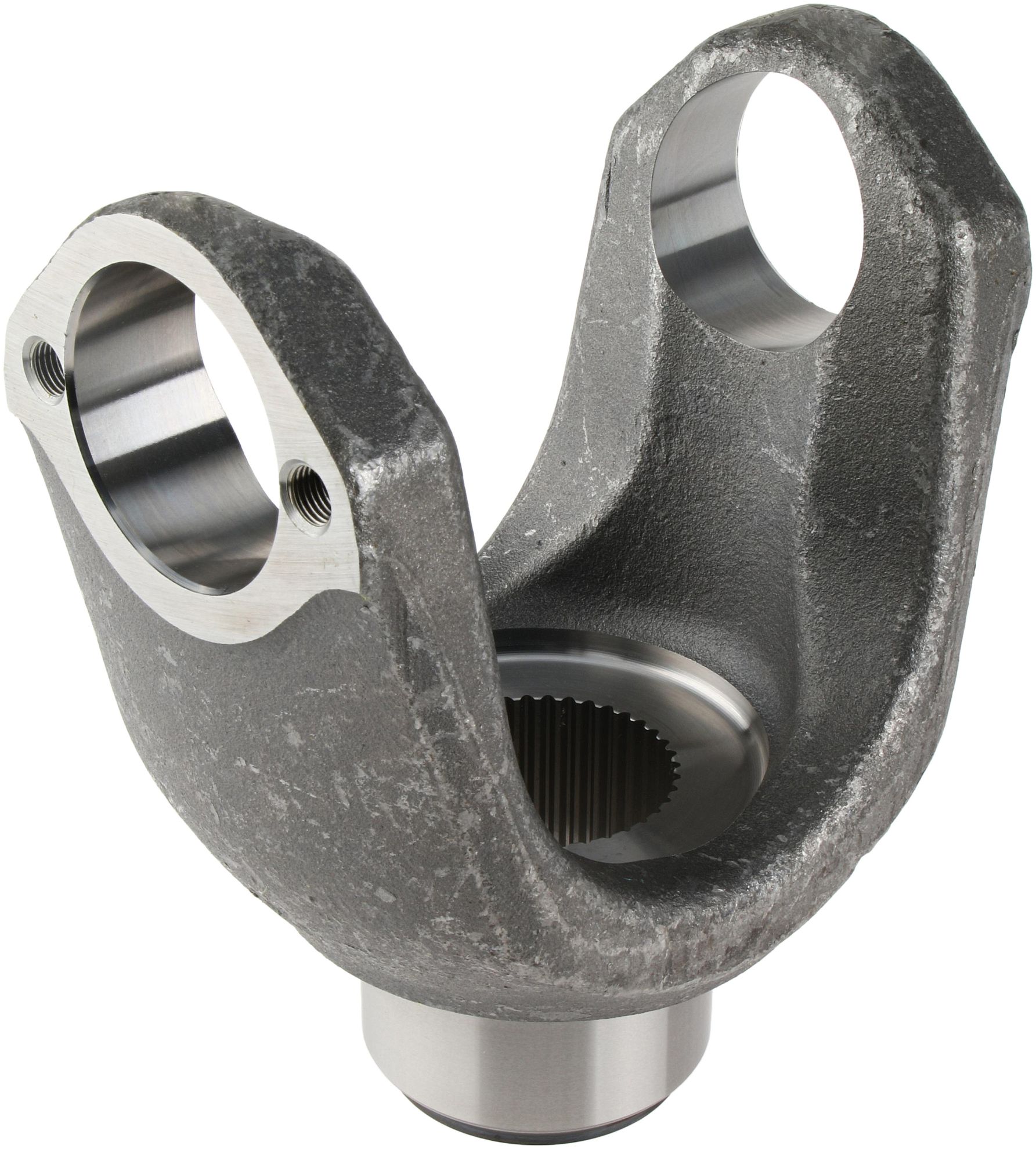

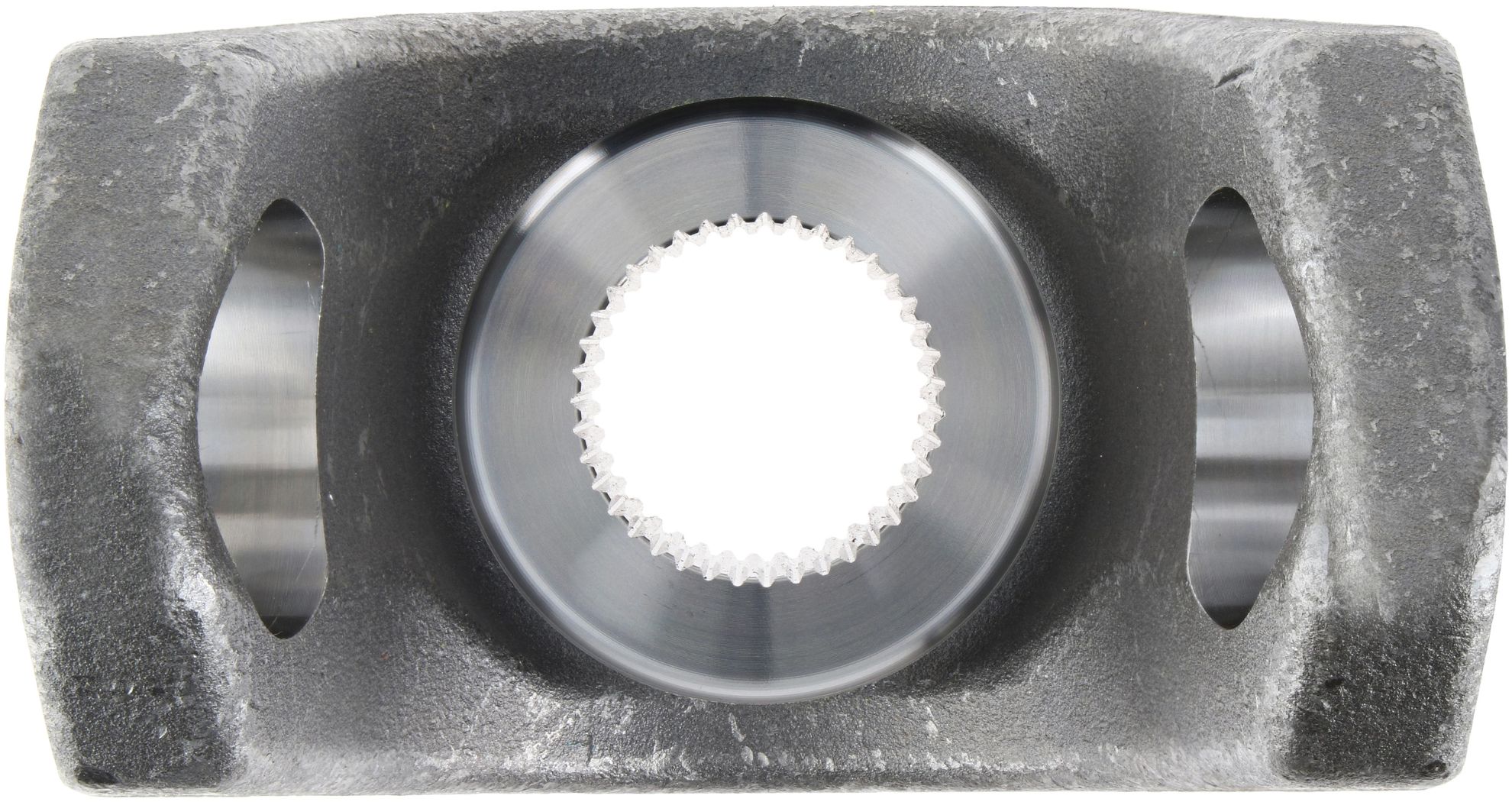

Spicer Differential End Yoke - 6-4-8431

Name: Spicer Differential End Yoke - 6-4-8431
SKU: 6-4-8431
Availability: OutOfStock

OUTPUT SHAFT END YOKE

Manufacturer: Spicer

Manufacturer part number: 6-4-8431

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Type	Splined Hole
Assembly	Y
Includes Slinger/Plug	Y
Involute Spline	I
Outside Yoke Dimension In.(E)	6.0920
Yoke Bearing Dimension (In) D	1.9383
Yoke Style	BP
Major Diameter	2.0240
C/L To End Hub S	6.125
Joint Angle #1	45
Series	1710
Material	Steel
Spline Count	39
Prop 65	NO
Length Thru Hole Q	2.4950
Note	High Angle Yoke; Differential End Yoke
O.D. of Spline	2.024
C-Bore Depth	0.250
C-Bore Diameter	2.0470
Hub Diameter R	2.6265
Country of Origin	MX
Condition	New
