Spicer Differential Ring and Pinion Kit - 706033-8X

Name: Spicer Differential Ring and Pinion Kit - 706033-8X
SKU: 706033-8X
Availability: InStock

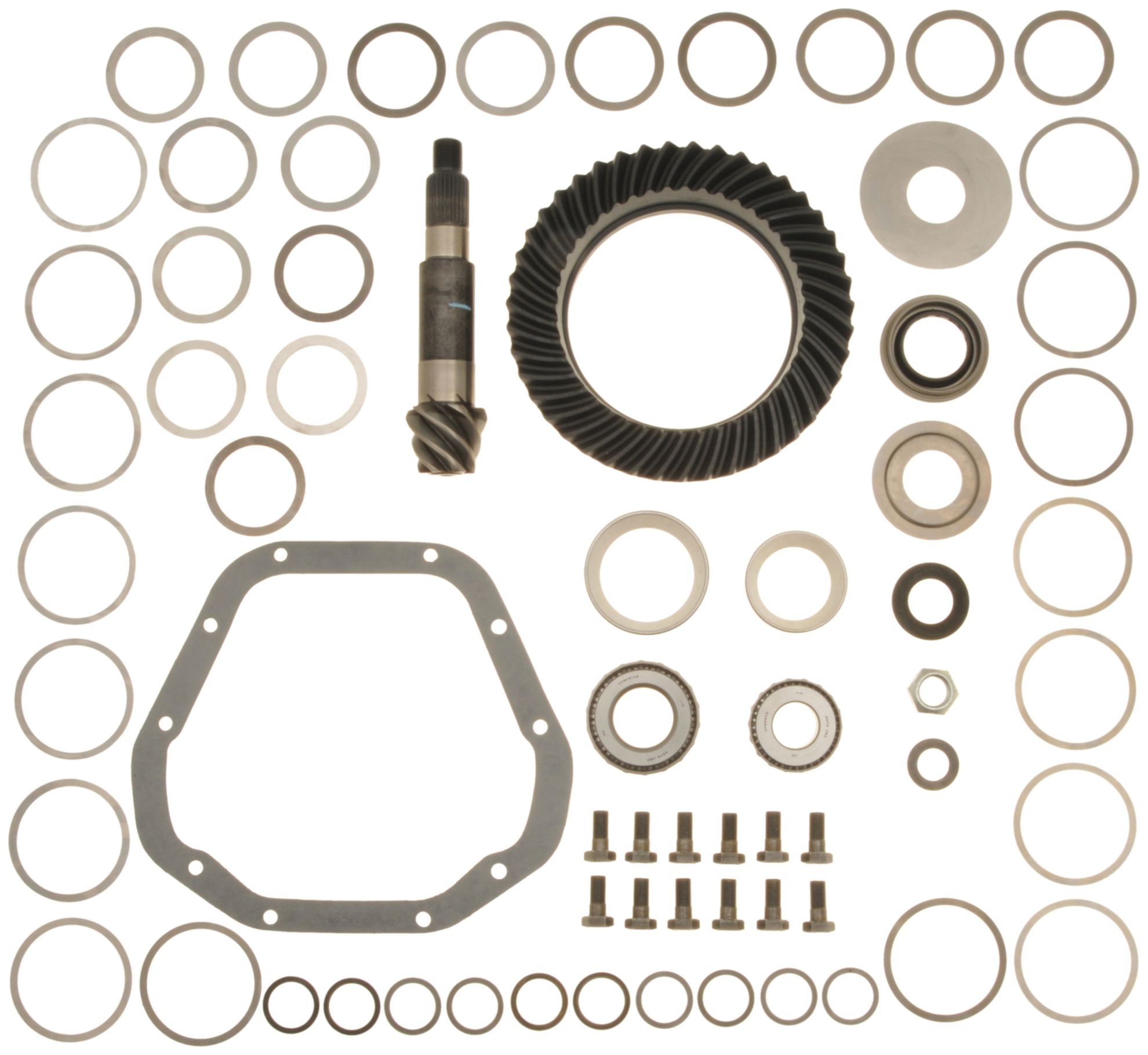

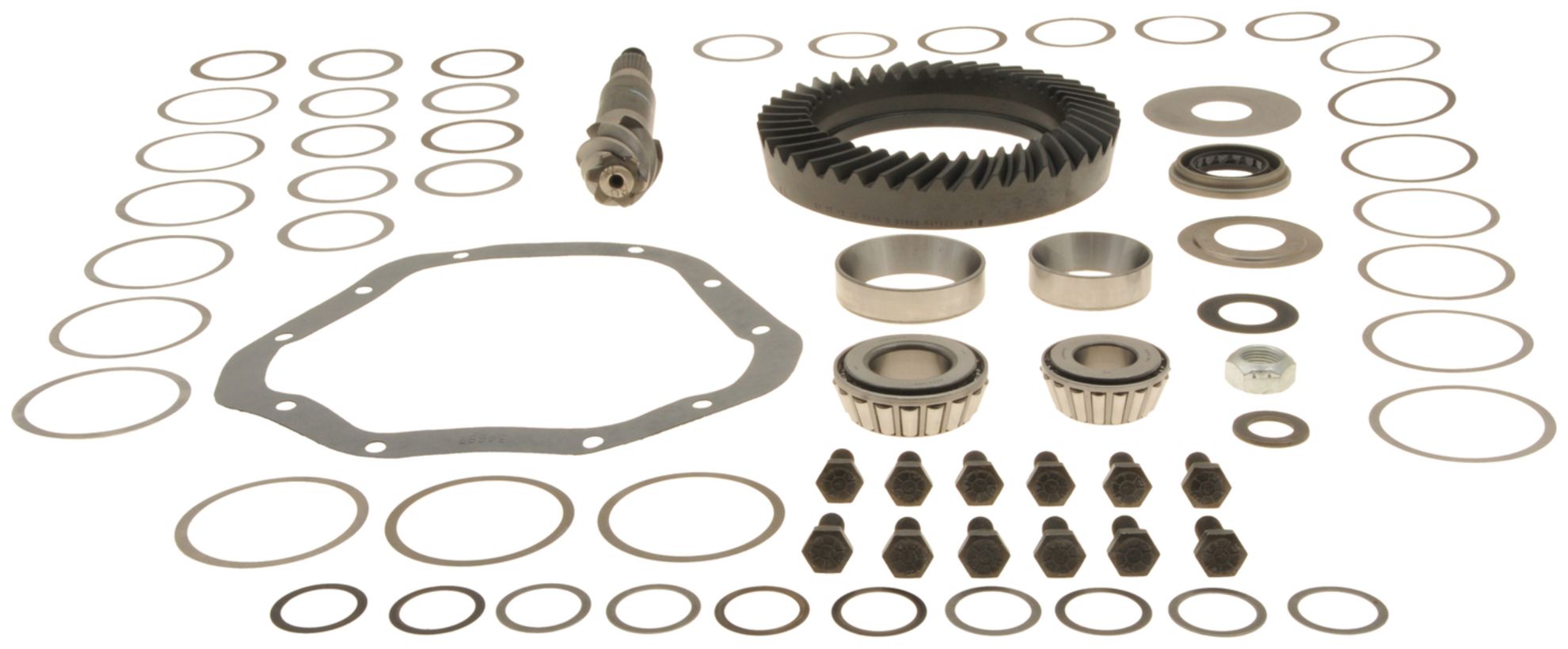

Differential Ring and Pinion Kit - DANA 60 - 7.17 Ratio

Manufacturer: Spicer

Manufacturer part number: 706033-8X

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

All Spicer ring and pinion gears are designed and tested to meet original equipment specifications. When you purchase genuine Spicer ring and pinion gear sets, you can be confident the ring and pinion set will meet or exceed the exact Dana standards that original equipment manufacturers have relied upon for more than a hundred years.

Products specifications

Attribute name	Attribute value
Axle Model	Dana 60
Prop 65	NO
Gear Ratio	7.17
Ring Teeth Count	43
Pinion Nut Included	Y
Carrier Breaks	4.56 And Up
Cover Bolt Quantity	10
Include Installation Kit	Y
On Vehicle Location	Front/Rear
Pinion Gear Tooth Quantity	6
Pinion Shaft Diameter	1.625
Pinion Spline Count	29
Ring Gear Bolt Qty	12
Ring Gear Bolt Thread In.	.500-20
Ring Gear Diameter (In.)	9.750
Ring Gear Rotation	Standard
New Or Remanufactured	New
Pinion Gear Included	Y
Ring Gear Included	Y
Country of Origin	US
Condition	New
