Spicer Drive Axle Shaft - 75588-1X

Name: Spicer Drive Axle Shaft - 75588-1X
SKU: 75588-1X
Availability: InStock

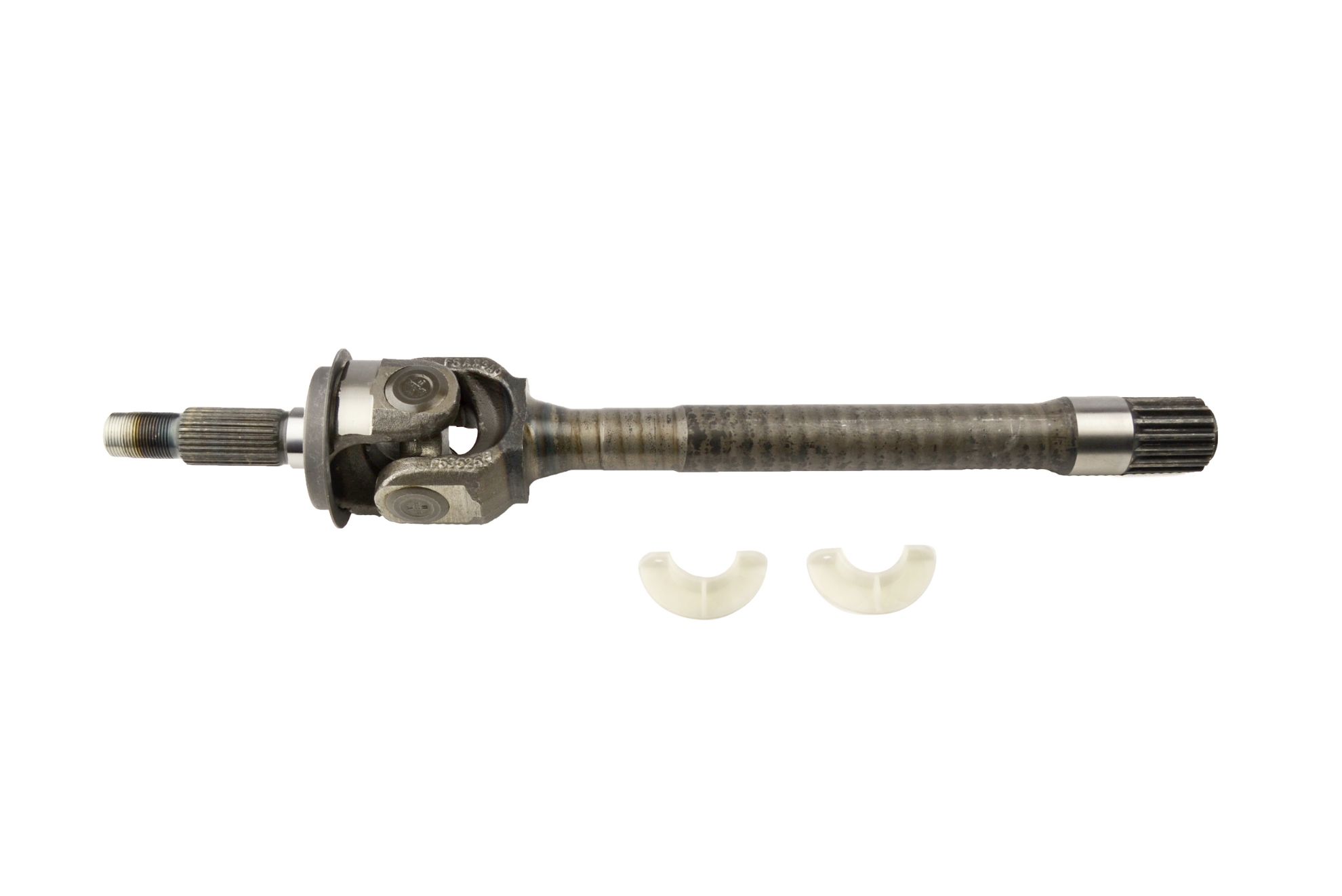

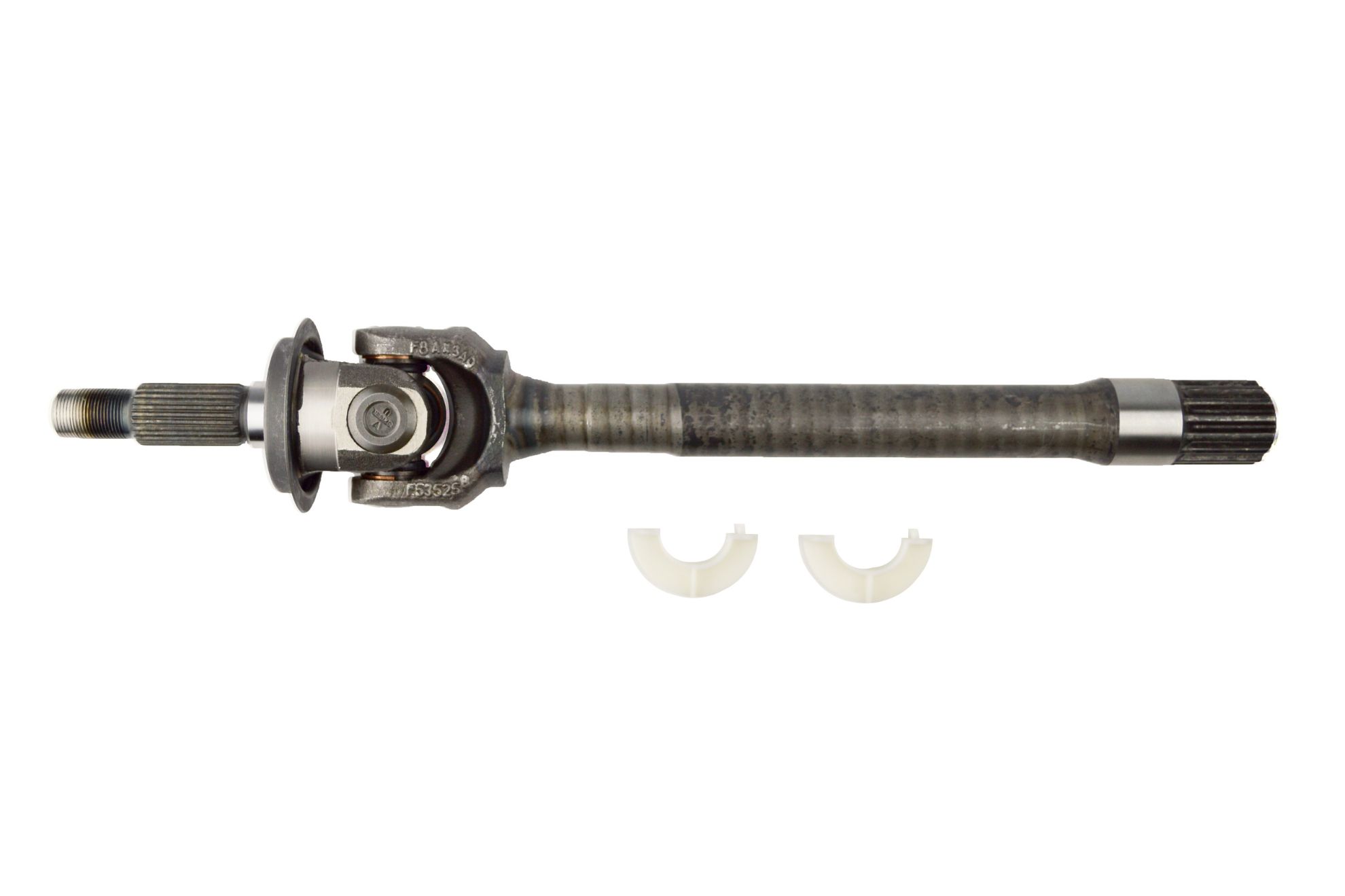

AXLE SHAFT ASSEMBLY

Manufacturer: Spicer

Manufacturer part number: 75588-1X

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Genuine Spicer light vehicle axle products are manufactured to the same high standards as original equipment (OE) parts because they are OE parts. That means when an automotive axle part is replaced with a genuine Spicer part, you are getting the same performance and reliability you have come to expect. And because Dana is constantly revolutionizing the technology behind its Dana axles and Spicer products, the replacement car axle or component you purchase today may even exceed the standards set for the original equipment part that you are replacing.

Products specifications

Attribute name	Attribute value
Axle Model	Dana 30
Material	Steel
Spline Count	15 Inboard / 27 Outboard
Prop 65	NO
Universal Joint Series	1310
ABS/Non-ABS	Non-ABS
Length (in.)	21.910
Axle Cover Bolt Hole Qty	10
Includes Tone	N
Cover Bolt Quantity	10
Axle Type	Complete Assembly
Includes Universal Joint	Y
Inner Shaft Length (In)	15.800
Inner Shaft Spline	15
Outer Stub Length (In)	6.110
Outer Stub Spline Count	27
Overall Assembled Length (In)	21.910
Quantity	1
ABS Sensor Ring Included	No
ABS Sensor Ring Installed	N
Axle Shaft Included	Y
Bearing Included	N
Full-Floating Or Semi-Floating	Semi-Floating
Inner Axle Included	Y
Outer Axle Included	Y
Retainer Ring Included	N
Seal Included	Y
Seal Kit Included	N
U-Joint Included	Y
Wheel Bearing Included	Y
Wheel Bolt Prep Kit Included	N
Wheel Nuts Included	N
Wheel Studs Included	N
Length [mm]	556.514
Country of Origin	US
Condition	New
