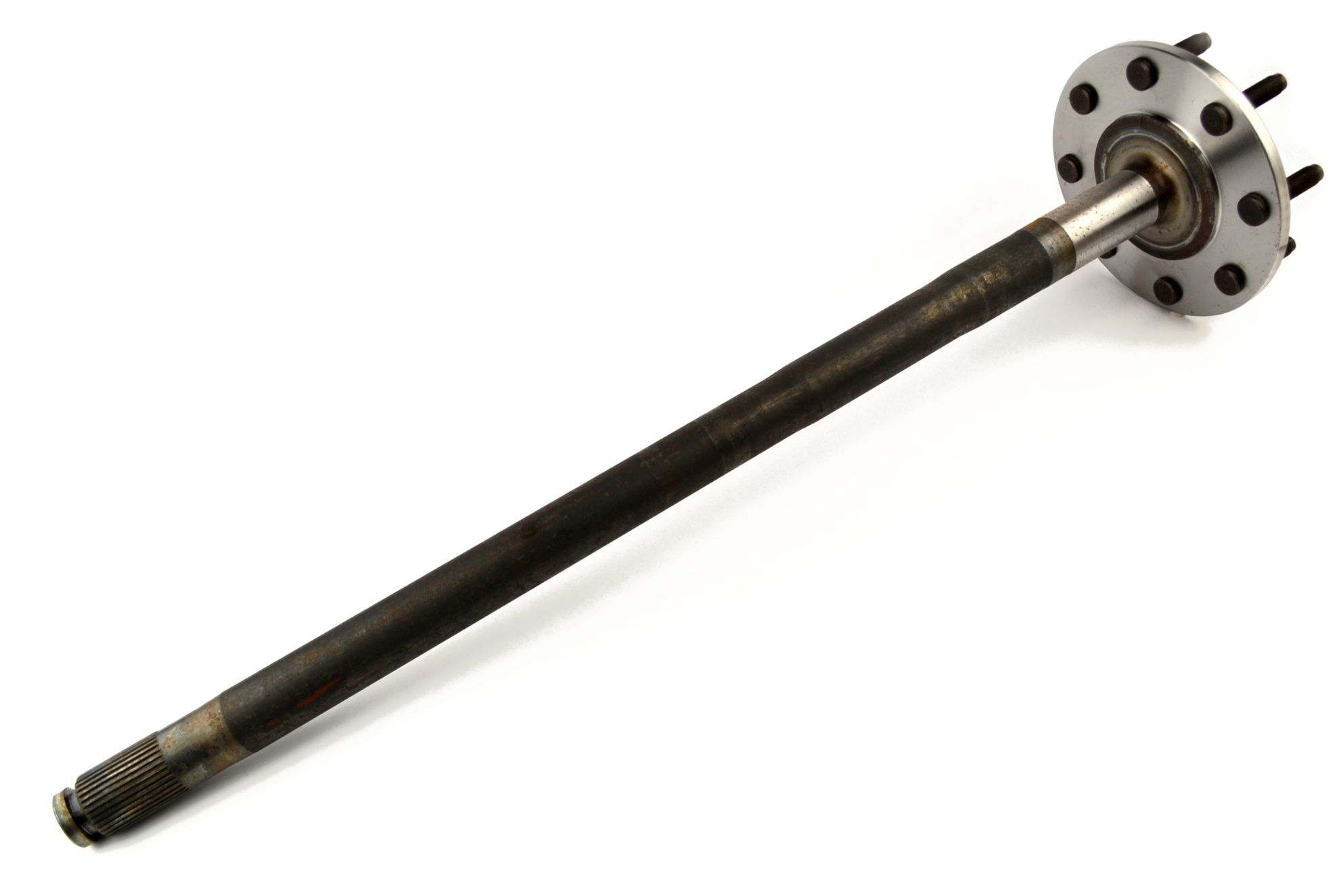

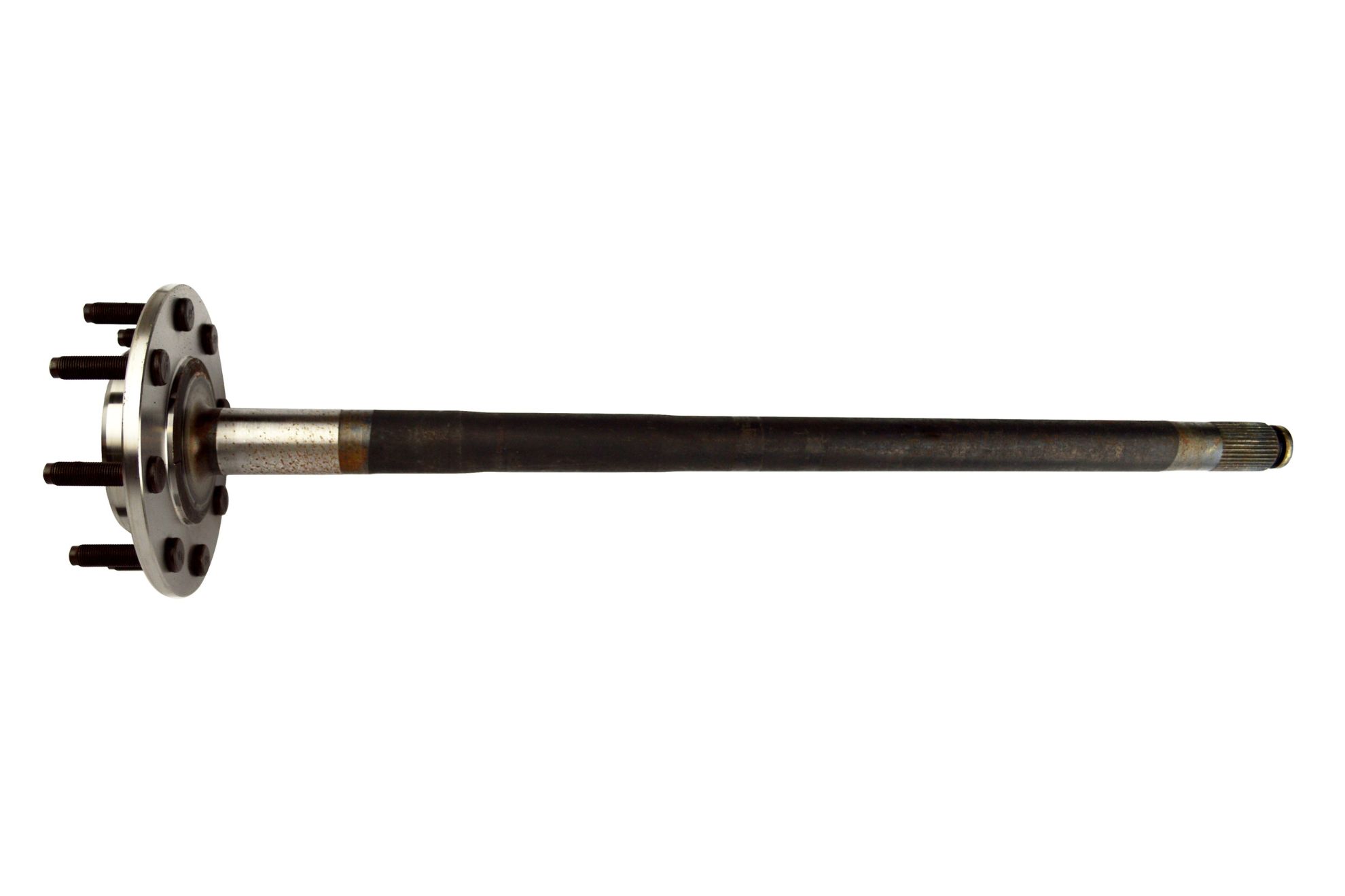

Spicer Drive Axle Shaft - 76002-1X

Name: Spicer Drive Axle Shaft - 76002-1X
SKU: 76002-1X
Availability: InStock

AXLE SHAFT DANA 60

Manufacturer: Spicer

Manufacturer part number: 76002-1X

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Strength and durability to ensure longer life. Get genuine performance from genuine Spicer. Spicer parts are designed, engineered, and manufactured to meet or exceed OE requirements, because they are OE parts, ensuring a perfect fit with our full line of industry leading axles. That is why Spicer is the name you can trust for top performance and durability.

Products specifications

Attribute name	Attribute value
Axle Model	Dana 60
Material	Steel
Spline Count	35 Inboard
California Proposition 65	WARNING: Cancer — www.p65warnings.ca.gov
Prop 65	Yes
ABS/Non-ABS	Non-ABS
Length (in.)	31.360
Location	RH
Axle Spline Count	35 Inboard
Axle Cover Bolt Hole Qty	10
Axle Length (In)	31.360
Bolt Pattern	8 X 6.50
Brake Pilot Diameter (In)	4.997
Includes Tone	N
Wheel Stud Hole Diameter (In)	0.629
Cover Bolt Quantity	10
Axle Type	Complete Assembly
Quantity	1
ABS Sensor Ring Included	Yes
ABS Sensor Ring Installed	Y
Axle Shaft Included	Y
Bearing Included	N
Full-Floating Or Semi-Floating	Semi-Floating
Inner Axle Included	Y
Number Of Wheel Lugs	8
Outer Axle Included	Y
Retainer Ring Included	N
Seal Included	N
Seal Kit Included	N
U-Joint Included	N
Wheel Bearing Included	N
Wheel Bolt Prep Kit Included	N
Wheel Nuts Included	N
Wheel Studs Included	Y
Axle Length (Mm)	796.544
Length [mm]	796.544
Country of Origin	US
Condition	New
