Spicer Drive Shaft - 10121381

Name: Spicer Drive Shaft - 10121381
SKU: 10121381
Availability: OutOfStock

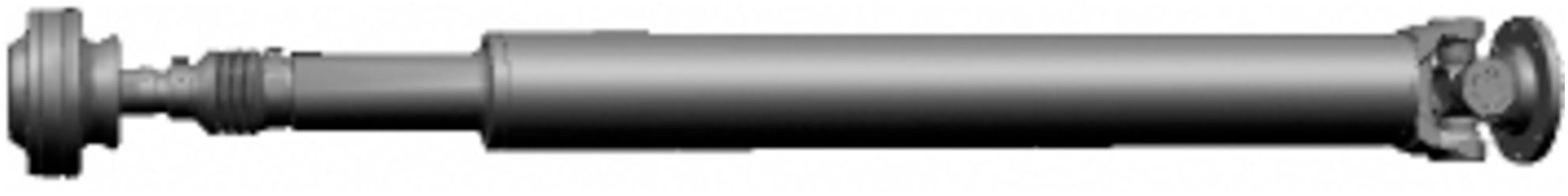

Drive Shaft, Kit, Bronco Performance AWD 2 Door (Short Wheel Base)

Manufacturer: Spicer

Manufacturer part number: 10121381

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Complete with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1350
Prop 65	NO
Shaft Material	Steel
Max Slip (IN)	2.2953
Max Slip (MM)	58.3000
Mid Slip (MM)	29.1500
Mid Slip (IN)	1.1476
Slip Assembly	No
Phased (Yes/No)	No
1/2 Max Slip (IN)	1.1476
1/2 Max Slip (MM)	29.1500
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Welded
Notes	Driveshaft (CL of the yoke to the end of the shaft assambly = 881.3)
CV Joints Included	No
Tube Length (In)	36.2795
Tube Length (Mm)	921.5000
Tube Size (IN)	3.0000 x 0.0830
Tube Size (Mm)	76.2000 x 2.1100
Country of Origin	US
Condition	New
