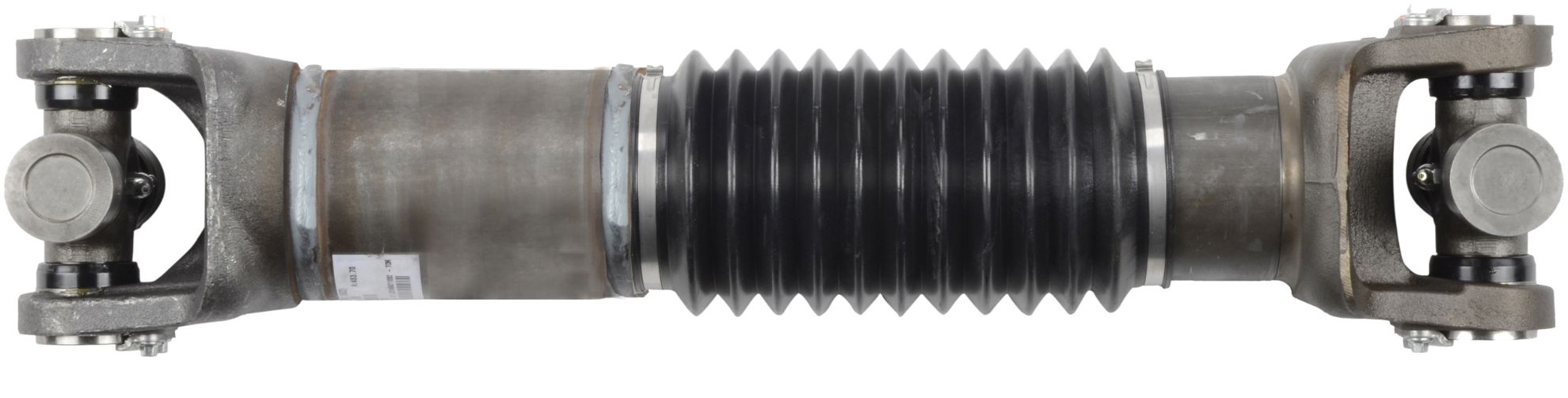

Spicer Drive Shaft - 250DS82001-660M

Drive Shaft (Steel) - SPL250 Lite
Manufacturer: Spicer
Manufacturer part number: 250DS82001-660M
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

ATTENTION – SPL LITE SHAFT. IF EITHER THE MAIN DRIVE SHAFT OR COUPLING SHAFT REQUIRES REPLACEMENT, IT MUST BE ORDERED AS A COMPLETE SET THAT INCLUDES BOTH SHAFTS IN THE SYSTEM. PLEASE SEE TECHNICAL BULLETIN JOI-TEC-083 FOR MORE INFORMATION. Demand Genuine Spicer. Made in the USA and complete with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name Attribute value
Prop 65 NO
Series SPL250
Tube Length (In) 25.9843
Tube Length (Mm) 660.0000
Tube Size (IN) 4.6600 x 0.2040
Tube Size (Mm) 118.6000 x 5.2000
Phased - Degrees 0.0000
Unwelded/Welded Assembly Welded
Shaft Material Steel
Max Slip (IN) 4.3307
Max Slip (MM) 110.0000
Notes Driveshaft
CL Yoke To CL Yoke (IN) - COLL 34.1732
CL Yoke To CL Yoke (MM) - COLL 868.0000
Mid Slip (MM) 55.0000
Mid Slip (IN) 2.1654
End 2 TJ Side 250-2-15
CL Yoke To End Of Yoke Shaft (MM)-COLL 1307.0000
CL Yoke To End Of Yoke Shaft (IN)-COLL 51.4567
CL Yoke To Flange Face (MM)-COLL 959.0000
Phased (Yes/No) No
1/2 Max Slip (IN) 0.2165
CL Yoke To Flange Fac e(IN)-COLL 37.7559
Country of Origin US
Condition New
