Spicer Drive Shaft - 250DS82001F-1050M

Name: Spicer Drive Shaft - 250DS82001F-1050M
SKU: 250DS82001F-1050M
Availability: InStock

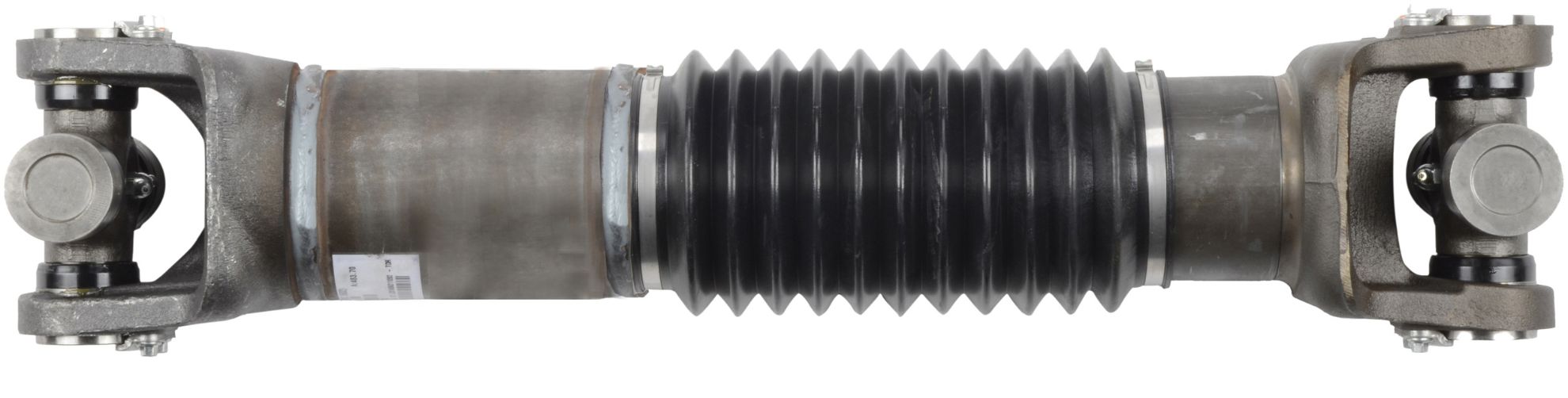

Drive Shaft (Steel)

Manufacturer: Spicer

Manufacturer part number: 250DS82001F-1050M

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ATTENTION - SPL LITE SHAFT. IF EITHER THE MAIN DRIVE SHAFT OR COUPLING SHAFT REQUIRES REPLACEMENT, IT MUST BE ORDERED AS A COMPLETE SET THAT INCLUDES BOTH SHAFTS IN THE SYSTEM. PLEASE SEE TECHNICAL BULLETIN JOI-TEC-083 FOR MORE INFORMATION. Demand genuine Spicer. Made in the USA and complete with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Prop 65	NO
Series	SPL250
Tube Length (In)	41.3386
Tube Length (Mm)	1050.0000
Tube Size (IN)	4.6692 x 0.2047
Tube Size (Mm)	118.6000 x 5.2000
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Welded
Shaft Material	Steel
Max Slip (IN)	4.3307
Max Slip (MM)	110.0000
Notes	Driveshaft (U joint type - Left side U joint type has 2 different types SR & BP and right side U joint is BP type)
CL Yoke To CL Yoke (IN) - COLL	49.5276
CL Yoke To CL Yoke (MM) - COLL	1258.0000
Mid Slip (MM)	55.0000
Mid Slip (IN)	2.1654
CV Joints Included	No
End 2 TJ Side	250-2-15
CL Yoke To End Of Yoke Shaft (MM)-COLL	1606.0000
CL Yoke To End Of Yoke Shaft (IN)-COLL	63.2283
Slip Assembly	No
CL Yoke To Flange Face (MM)-COLL	1349.0000
Phased (Yes/No)	No
CL Yoke To Flange Face (MM)-INST	1404.0000
1/2 Max Slip (IN)	2.1654
CL Yoke To Flange Fac e(IN)-COLL	53.1102
Country of Origin	US
Condition	New
