Spicer Drive Shaft - 250DS82001F-1520M

Name: Spicer Drive Shaft - 250DS82001F-1520M
SKU: 250DS82001F-1520M
Availability: InStock

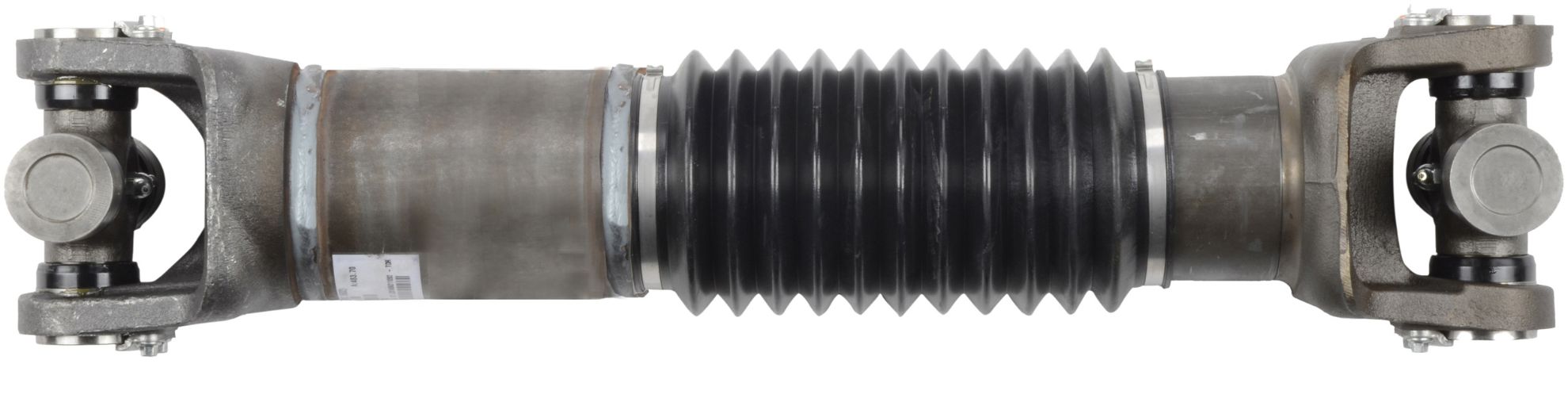

Drive Shaft (Steel)

Manufacturer: Spicer

Manufacturer part number: 250DS82001F-1520M

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ATTENTION - SPL LITE SHAFT. IF EITHER THE MAIN DRIVE SHAFT OR COUPLING SHAFT REQUIRES REPLACEMENT, IT MUST BE ORDERED AS A COMPLETE SET THAT INCLUDES BOTH SHAFTS IN THE SYSTEM. PLEASE SEE TECHNICAL BULLETIN JOI-TEC-083 FOR MORE INFORMATION. Demand genuine Spicer. Made in the USA and complete with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Prop 65	NO
Mid Slip (MM)	55.0000
Mid Slip (IN)	2.1654
CV Joints Included	No
End 2 TJ Side	250-2-15
CL Yoke To End Of Yoke Shaft (MM)-COLL	2076.0000
CL Yoke To End Of Yoke Shaft (IN)-COLL	81.7323
Slip Assembly	No
CL Yoke To Flange Face (MM)-COLL	1819.0000
Phased (Yes/No)	No
CL Yoke To Flange Face (MM)-INST	1874.0000
1/2 Max Slip (IN)	2.1654
CL Yoke To Flange Fac e(IN)-COLL	71.6142
Series	SPL250
Tube Length (In)	59.8425
Tube Length (Mm)	1520.0000
Tube Size (IN)	4.6692 x 0.2047
Tube Size (Mm)	118.6000 x 5.2000
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Welded
Shaft Material	Steel
Max Slip (IN)	4.3307
Max Slip (MM)	110.0000
Notes	Driveshaft (U joint type - Left side U joint type has 2 different types SR & BP and right side U joint is BP type)
CL Yoke To CL Yoke (IN) - COLL	68.0315
CL Yoke To CL Yoke (MM) - COLL	1728.0000
Country of Origin	US
Condition	New
