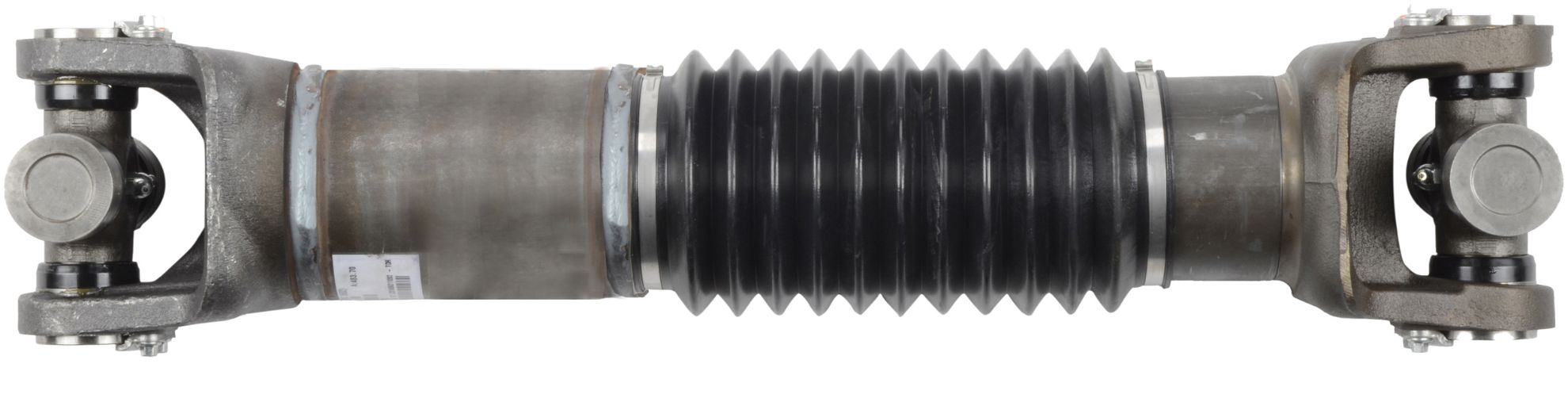

Spicer Drive Shaft - 250DS82002-1760M

Name: Spicer Drive Shaft - 250DS82002-1760M
SKU: 250DS82002-1760M
Availability: InStock

Drive Shaft (Phased)

Manufacturer: Spicer

Manufacturer part number: 250DS82002-1760M

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Made in the USA and complete with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Prop 65	NO
Series	SPL250
Tube Length (In)	69.2913
Tube Length (Mm)	1760.0000
Tube Size (IN)	4.6692 x 0.2047
Tube Size (Mm)	118.6000 x 5.2000
Phased - Degrees	90.0000
Unwelded/Welded Assembly	Welded
Shaft Material	Steel
Max Slip (IN)	4.3307
Max Slip (MM)	110.0000
Notes	Driveshaft
CL Yoke To CL Yoke (IN) - COLL	77.4803
CL Yoke To CL Yoke (MM) - COLL	1968.0000
Mid Slip (MM)	55.0000
Mid Slip (IN)	2.1654
CV Joints Included	No
End 2 TJ Side	250-2-15
CL Yoke To End Of Yoke Shaft (MM)-COLL	2316.0000
CL Yoke To End Of Yoke Shaft (IN)-COLL	91.1811
Slip Assembly	No
CL Yoke To Flange Face (MM)-COLL	2059.0000
Phased (Yes/No)	Yes
CL Yoke To Flange Face (MM)-INST	2114.0000
1/2 Max Slip (IN)	2.1654
CL Yoke To Flange Fac e(IN)-COLL	81.0630
Country of Origin	US
Condition	New
