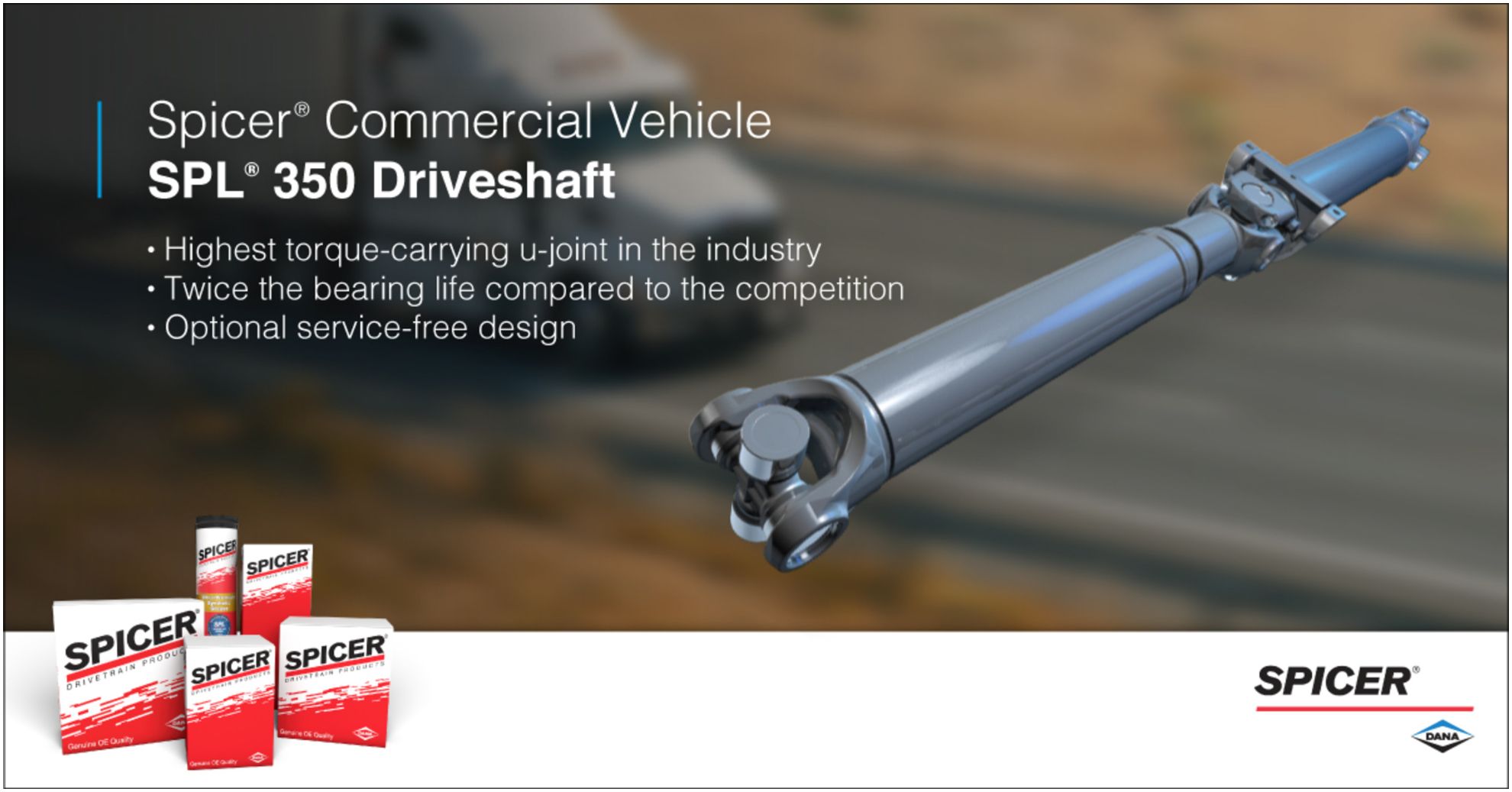

Spicer Drive Shaft - 350DS25001-1380M

Name: Spicer Drive Shaft - 350DS25001-1380M
SKU: 350DS25001-1380M
Availability: InStock

Drive Shaft

Manufacturer: Spicer

Manufacturer part number: 350DS25001-1380M

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	SPL350
Shaft Material	Steel
Max Slip (IN)	4.3307
Max Slip (MM)	110.0000
CL Yoke To CL Yoke (IN) - COLL	70.9055
CL Yoke To CL Yoke (MM) - COLL	1801.0000
Mid Slip (MM)	55.0000
Mid Slip (IN)	2.1654
End 1 Type SJ Side	2 687 65 20 00 510
CL Yoke To Flange Face (MM)-COLL	1906.0000
Phased (Yes/No)	No
CL Yoke To Flange Face (MM)-INST	1961.0000
Prop 65	NO
CL Yoke To Flange Fac e(IN)-COLL	75.0394
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Unwelded
Tube Length (In)	54.3307
Tube Length (Mm)	1380.0000
Tube Size (IN)	5.4600 x 0.1670
Tube Size (Mm)	138.6000 x 4.2500
Country of Origin	US
Condition	New
