Spicer Drive Shaft - 602380103

Name: Spicer Drive Shaft - 602380103
SKU: 602380103
Availability: InStock

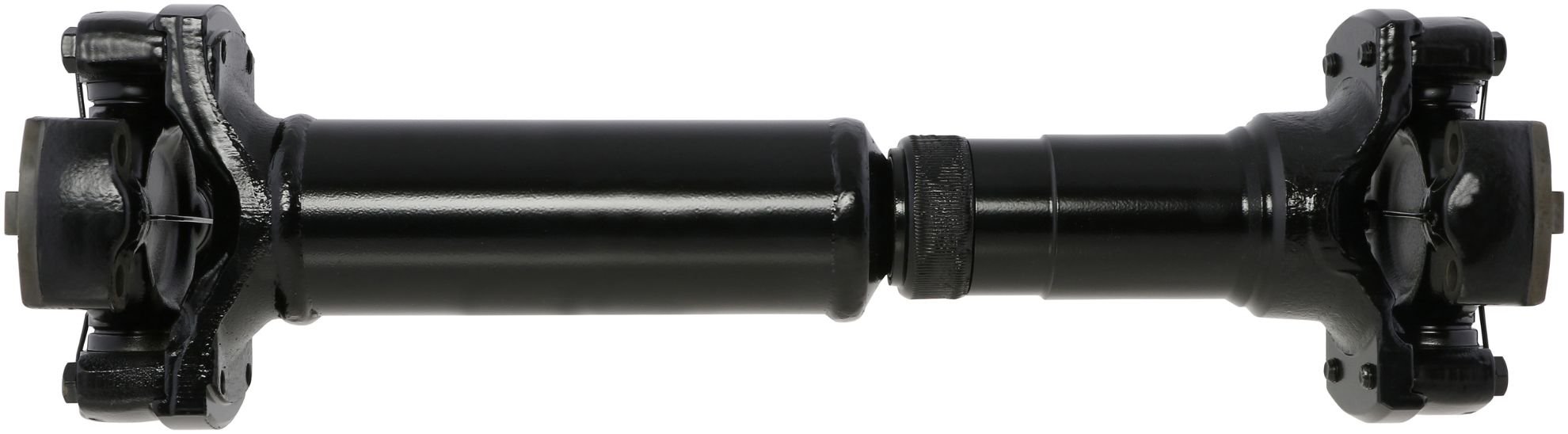

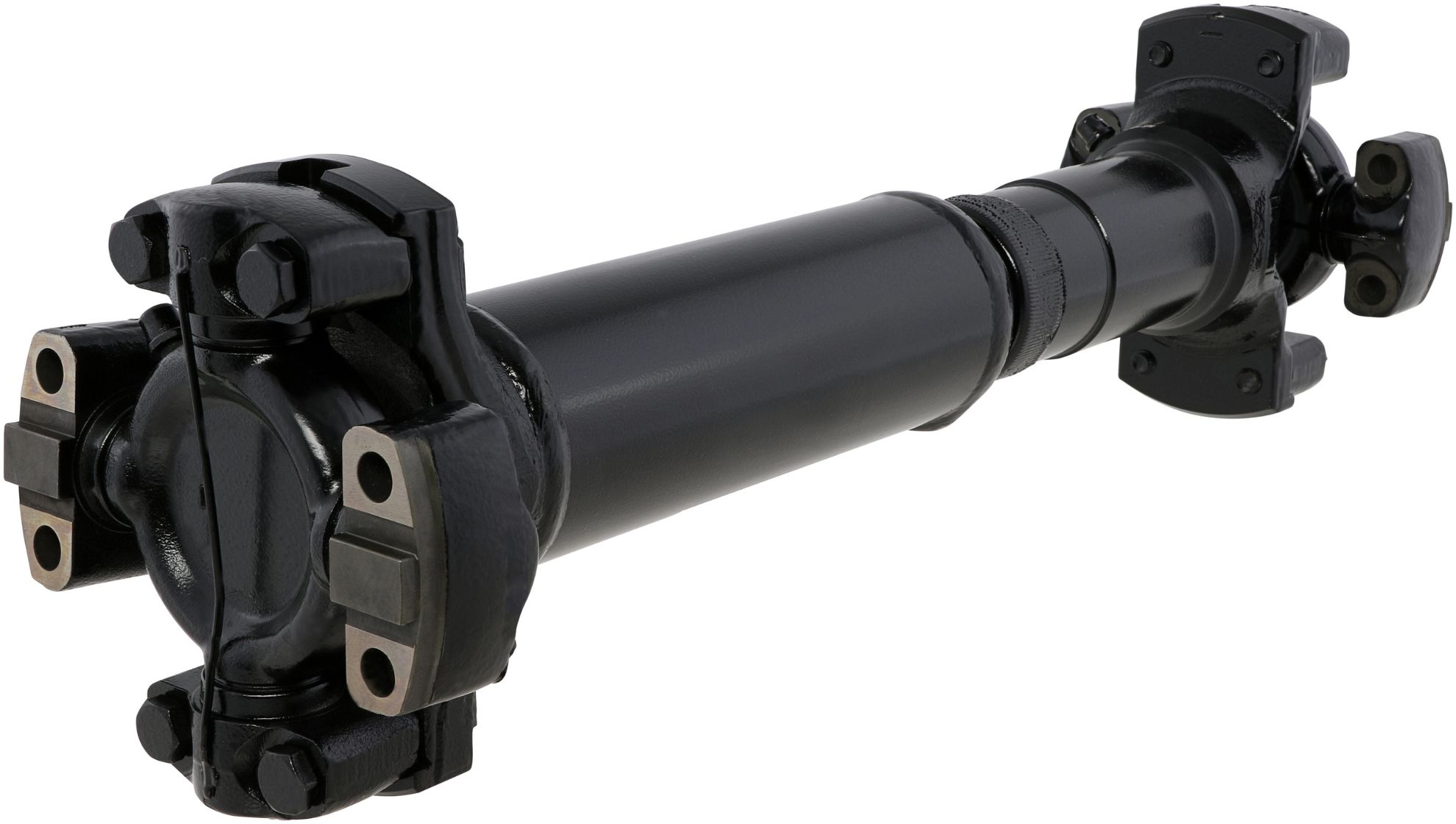

DRIVE SHAFT

Manufacturer: Spicer

Manufacturer part number: 602380103

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Material	Steel
California Proposition 65	WARNING: Cancer — www.p65warnings.ca.gov
Series	140M60
Prop 65	Yes
FF(Flange Face) To FF (IN)-COLL	19.6850
Phased (Yes/No)	No
FF(Flange Face) To FF (IN)-INST	20.8661
FF(Flange Face) To FF (MM)-INST	530.0000
1/2 Max Slip (IN)	1.1811
Shaft Material	Steel
Max Slip (IN)	2.3622
Max Slip (MM)	60.0000
CL Yoke To CL Yoke (IN) - COLL	18.3071
CL Yoke To CL Yoke (MM) - COLL	465.0000
Mid Slip (MM)	30.0000
Mid Slip (IN)	1.1811
FF(Flange Face) To FF (MM)-COLL	500.0000
Slip Assembly	No
1/2 Max Slip (MM)	30.0000
CL Yoke To Flange Fac e(IN)-COLL	18.9961
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Unwelded
Notes	Driveshaft
CV Joints Included	No
CL Yoke To Flange Face (MM)-COLL	482.5000
CL Yoke To Flange Face (MM)-INST	512.5000
Tube Length (In)	7.5787
Tube Length (Mm)	192.5000
Tube Size (IN)	2.7500 x 0.1570
Tube Size (Mm)	70.0000 x 4.0000
Country of Origin	IT
Condition	New
