Spicer Drive Shaft - 602380107

Name: Spicer Drive Shaft - 602380107
SKU: 602380107
Availability: InStock

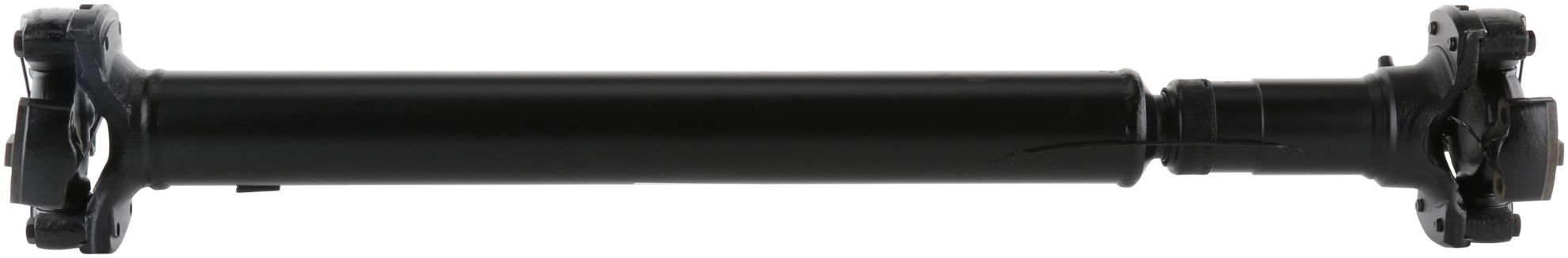

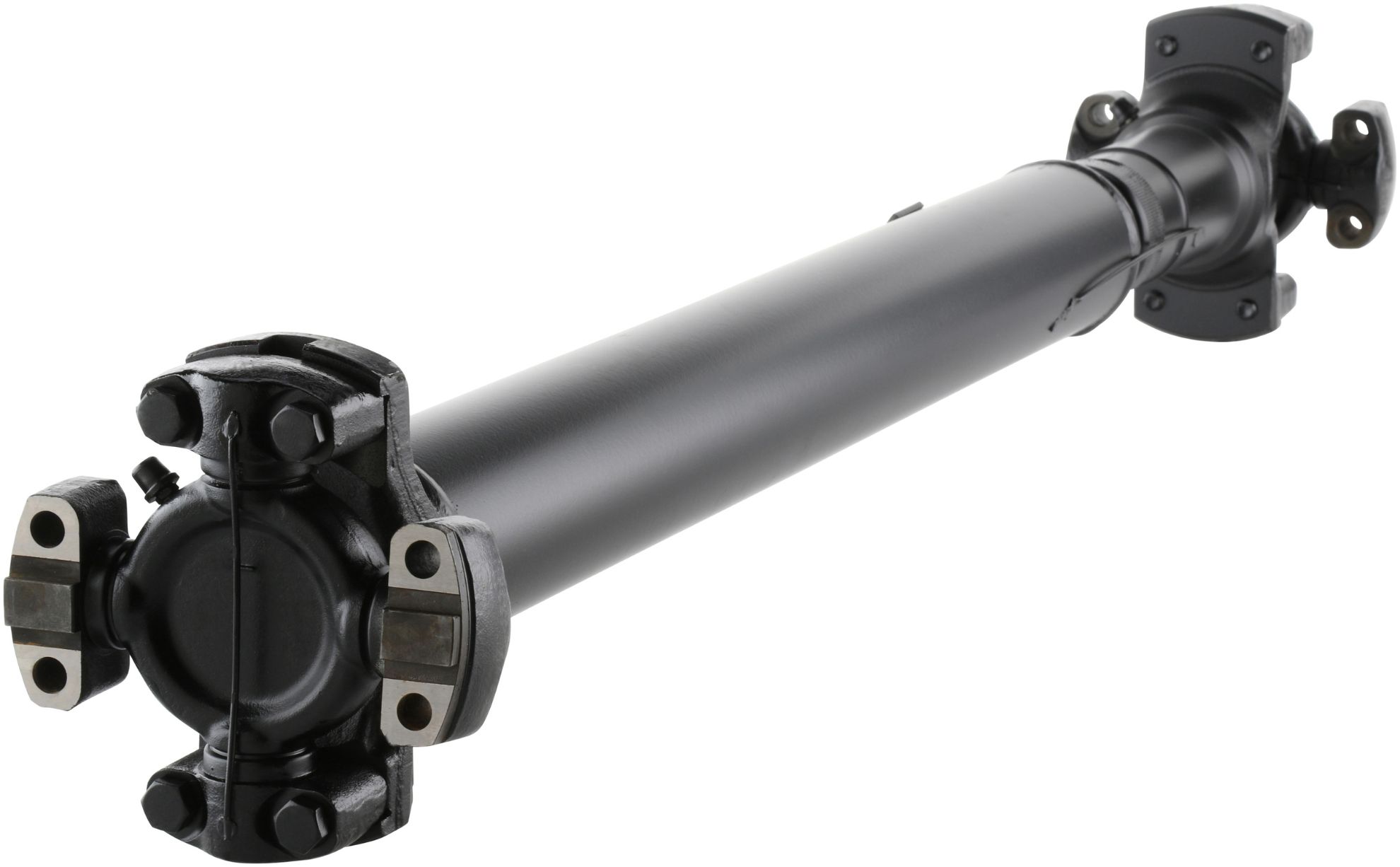

DRIVE SHAFT

Manufacturer: Spicer

Manufacturer part number: 602380107

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
California Proposition 65	WARNING: Cancer — www.p65warnings.ca.gov
Material	Steel
Series	140M60
Prop 65	Yes
Shaft Material	Steel
Max Slip (IN)	2.3622
Max Slip (MM)	60.0000
CL Yoke To CL Yoke (IN) - COLL	33.8583
CL Yoke To CL Yoke (MM) - COLL	860.0000
Mid Slip (MM)	30.0000
Mid Slip (IN)	1.1811
FF(Flange Face) To FF (MM)-COLL	895.0000
Slip Assembly	No
FF(Flange Face) To FF (IN)-COLL	35.2362
Phased (Yes/No)	No
FF(Flange Face) To FF (IN)-INST	36.4173
FF(Flange Face) To FF (MM)-INST	925.0000
1/2 Max Slip (IN)	1.1811
1/2 Max Slip (MM)	30.0000
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Unwelded
Notes	Driveshaft
CV Joints Included	No
CL Yoke To Flange Face (MM)-COLL	877.5000
CL Yoke To Flange Face (MM)-INST	907.5000
CL Yoke To Flange Fac e(IN)-COLL	34.5472
Tube Length (In)	23.1299
Tube Length (Mm)	587.5000
Tube Size (IN)	2.7500 x 0.1570
Tube Size (Mm)	70.0000 x 4.0000
Country of Origin	IT
Condition	New
