Spicer Drive Shaft - 907082-3

Name: Spicer Drive Shaft - 907082-3
SKU: 907082-3
Availability: InStock

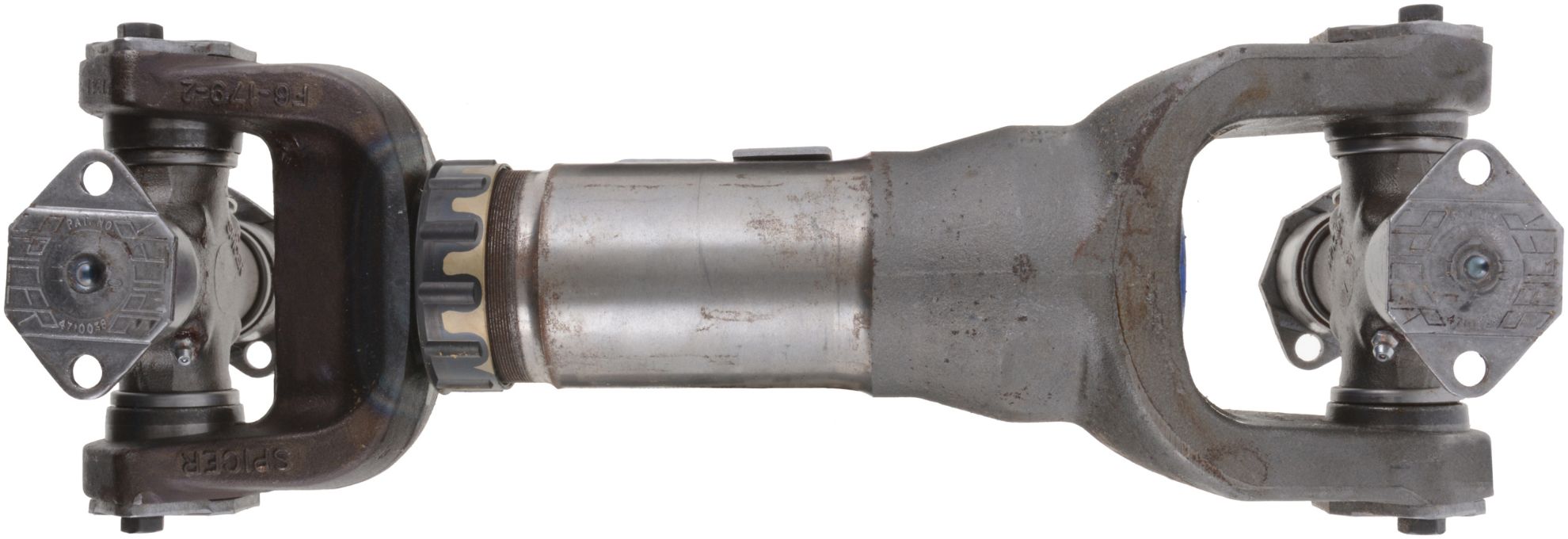

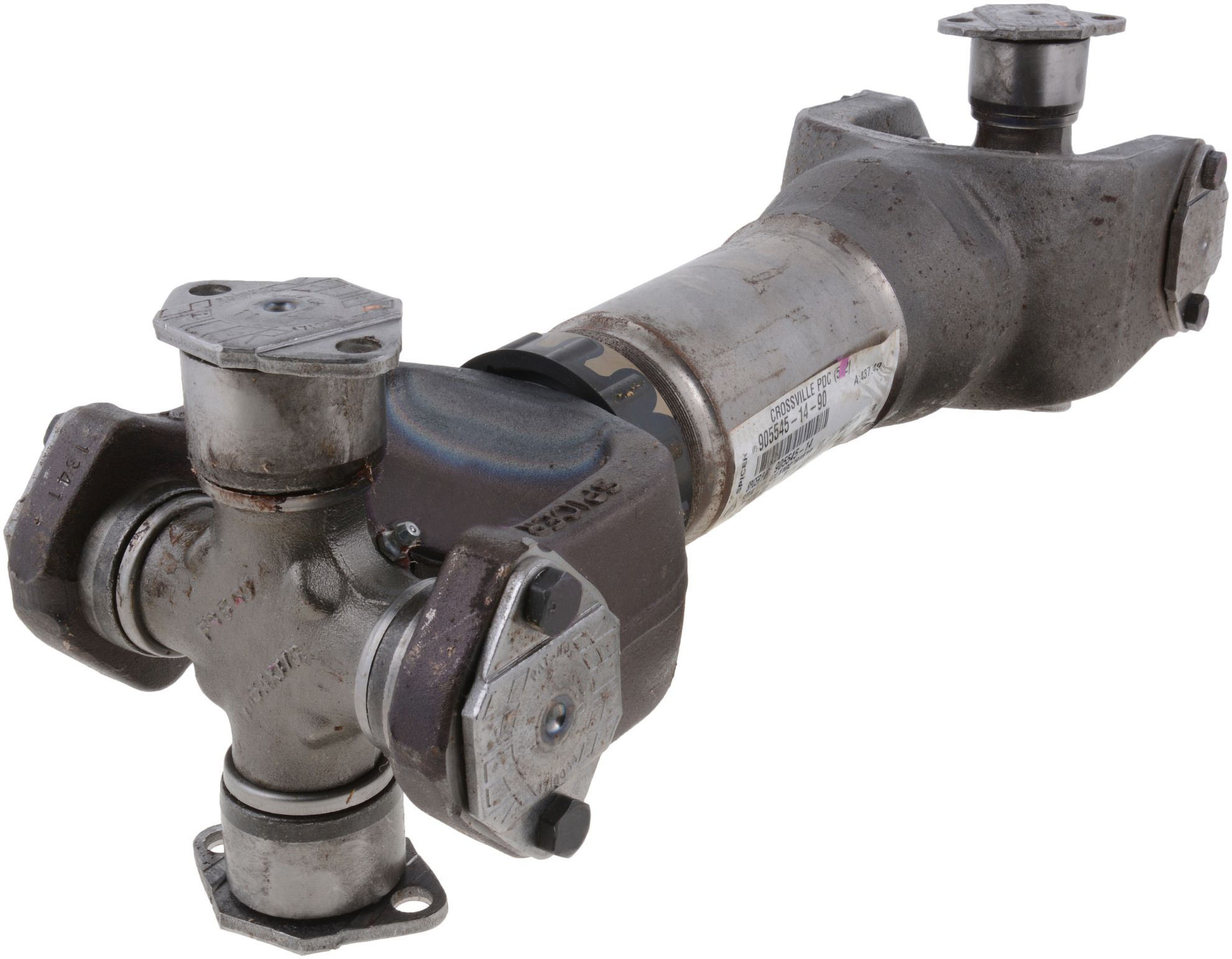

Short Couple Drive Shaft

Manufacturer: Spicer

Manufacturer part number: 907082-3

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1810
Prop 65	NO
Shaft Material	Steel
Max Slip (IN)	3.3819
Max Slip (MM)	85.9000
CL Yoke To CL Yoke (MM) - COLL	332.8000
Mid Slip (MM)	42.9500
Mid Slip (IN)	1.6909
FF(Flange Face) To FF (MM)-COLL	501.6000
Slip Assembly	No
FF(Flange Face) To FF (IN)-COLL	19.7480
Phased (Yes/No)	No
FF(Flange Face) To FF (IN)-INST	21.4390
FF(Flange Face) To FF (MM)-INST	544.5500
1/2 Max Slip (IN)	1.6909
1/2 Max Slip (MM)	42.9500
CL Yoke To Flange Face (MM)-INST	458.6500
CL Yoke To Flange Fac e(IN)-COLL	16.3661
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Unwelded
Notes	Short Couple
CL Yoke To CL Yoke (IN) - COLL	13.1024
End 1 Type SJ Side	6.5 - 2 - 329
CV Joints Included	No
End 2 TJ Side	6.5-2-329
CL Yoke To Flange Face (MM)-COLL	415.7000
Country of Origin	US
Condition	New
