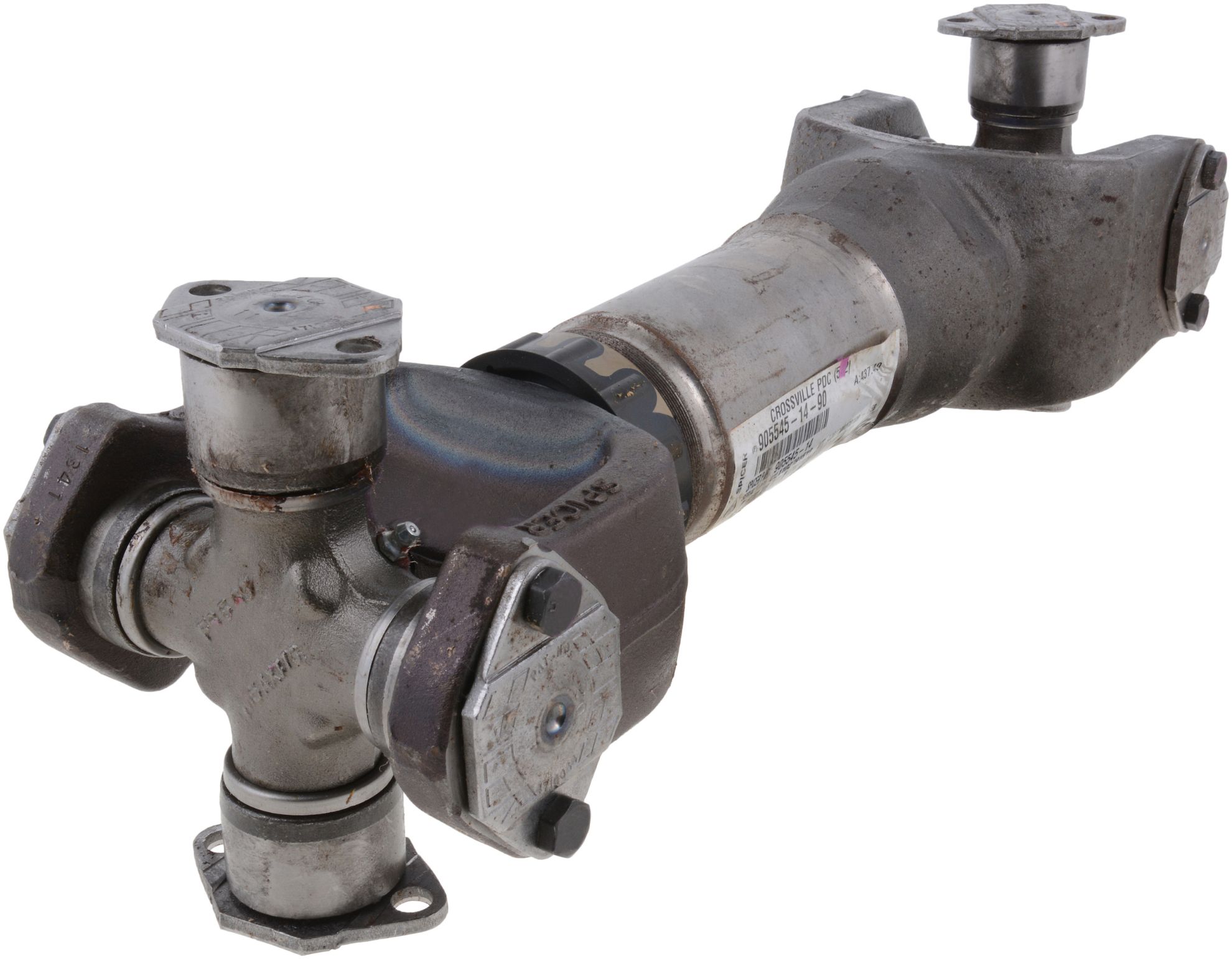

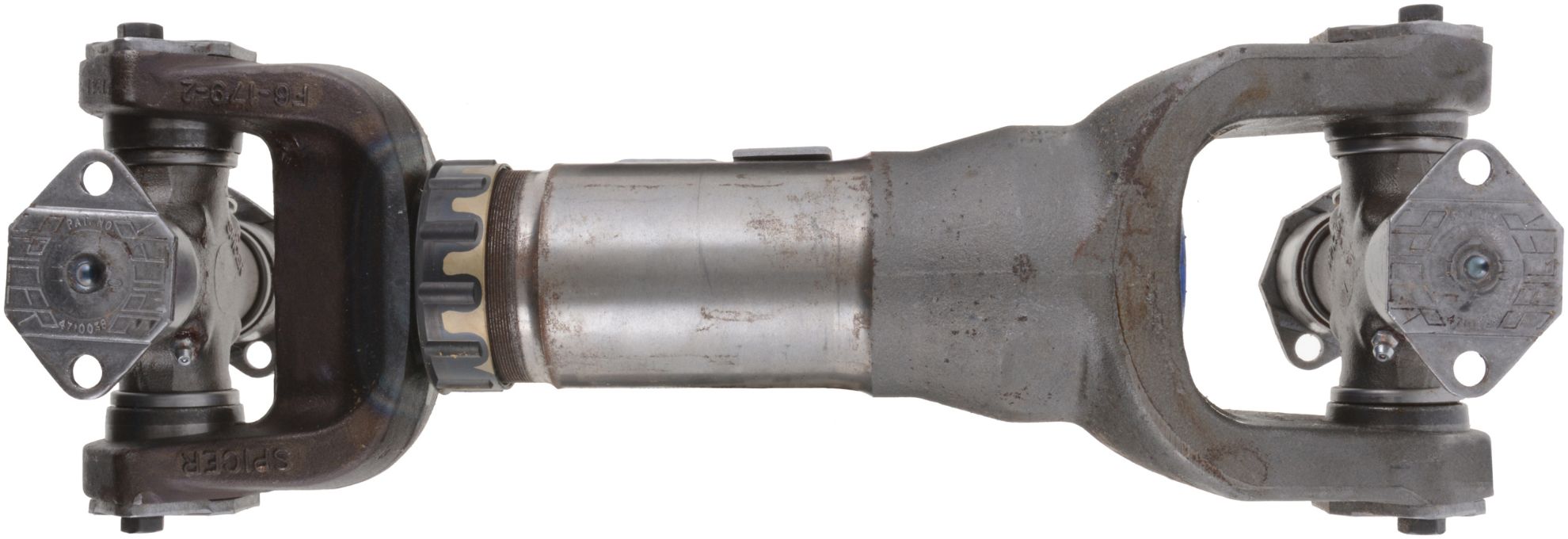

Spicer Drive Shaft - 912766-1

Name: Spicer Drive Shaft - 912766-1
SKU: 912766-1
Availability: OutOfStock

Short Couple Drive Shaft

Manufacturer: Spicer

Manufacturer part number: 912766-1

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1710
Slip Assembly	No
Phased (Yes/No)	No
1/2 Max Slip (IN)	1.1260
1/2 Max Slip (MM)	28.6000
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Unwelded
Notes	Short Couple
CL Yoke To CL Yoke (IN) - COLL	11.8819
End 1 Type SJ Side	6 - 2 - 749
CV Joints Included	No
End 2 TJ Side	6 - 2 - 749
CL Yoke To Flange Face (MM)-COLL	378.0000
CL Yoke To Flange Face (MM)-INST	406.6000
CL Yoke To Flange Fac e(IN)-COLL	14.8819
Mid Slip (IN)	1.1260
Prop 65	NO
Shaft Material	Steel
Max Slip (IN)	2.2520
Max Slip (MM)	57.2000
CL Yoke To CL Yoke (MM) - COLL	301.8000
Mid Slip (MM)	28.6000
Country of Origin	US
Condition	New
