Spicer Drive Shaft - 917603-1

Name: Spicer Drive Shaft - 917603-1
SKU: 917603-1
Availability: InStock

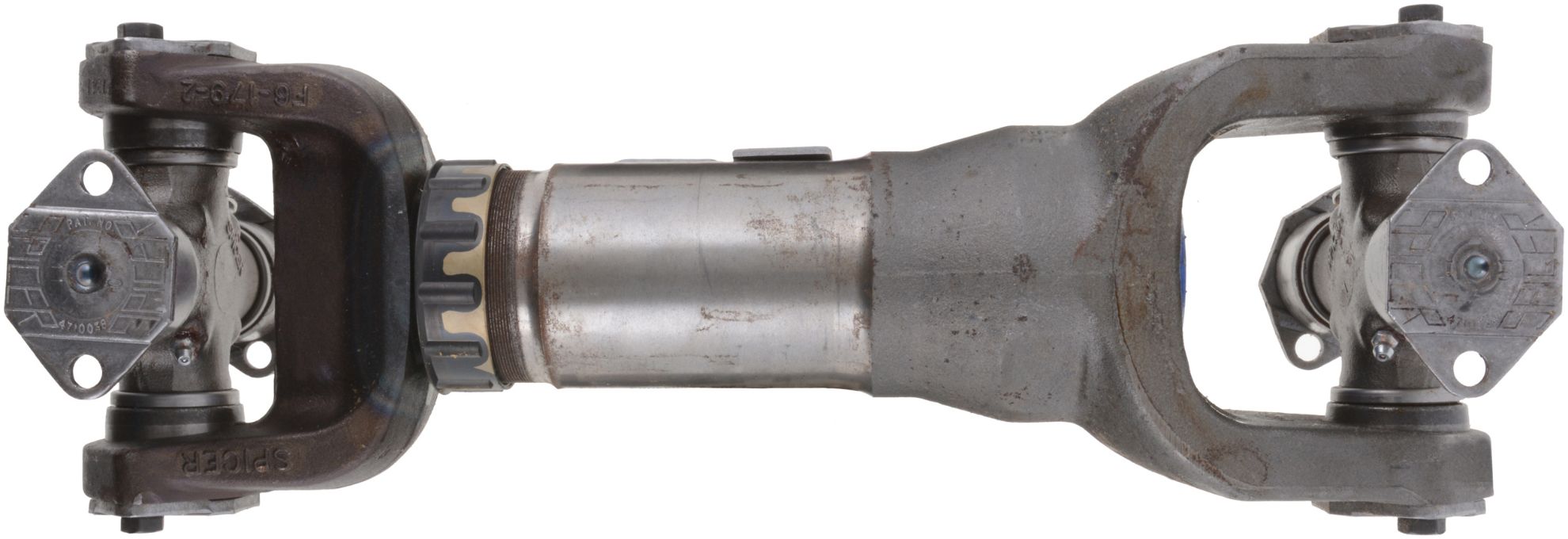

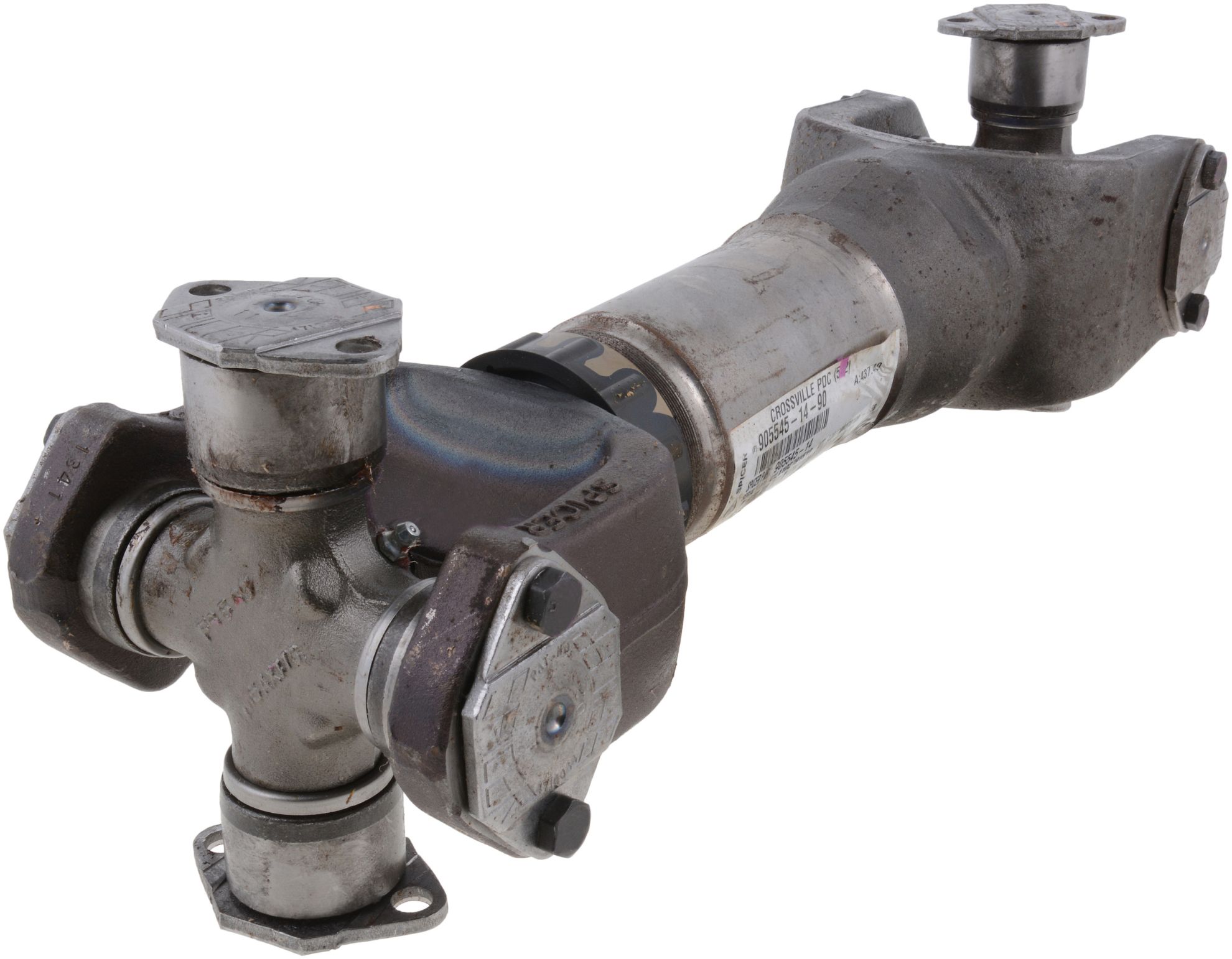

Short Couple Drive Shaft

Manufacturer: Spicer

Manufacturer part number: 917603-1

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Made in the USA and complete with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1710
Prop 65	NO
Shaft Material	Steel
Max Slip (IN)	2.3819
Max Slip (MM)	60.5000
CL Yoke To CL Yoke (MM) - COLL	273.1000
Mid Slip (MM)	30.2500
Mid Slip (IN)	1.1909
FF(Flange Face) To FF (MM)-COLL	425.5000
FF(Flange Face) To FF (IN)-INST	17.9429
FF(Flange Face) To FF (MM)-INST	455.7500
1/2 Max Slip (IN)	1.1909
Slip Assembly	No
FF(Flange Face) To FF (IN)-COLL	16.7520
Phased (Yes/No)	No
1/2 Max Slip (MM)	30.2500
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Unwelded
Notes	Short Couple
CL Yoke To CL Yoke (IN) - COLL	10.7520
End 1 Type SJ Side	6 - 2 - 749
CV Joints Included	No
End 2 TJ Side	6 - 2 - 749
CL Yoke To Flange Face (MM)-COLL	349.3000
CL Yoke To Flange Face (MM)-INST	379.5500
CL Yoke To Flange Fac e(IN)-COLL	13.7520
Country of Origin	US
Condition	New
