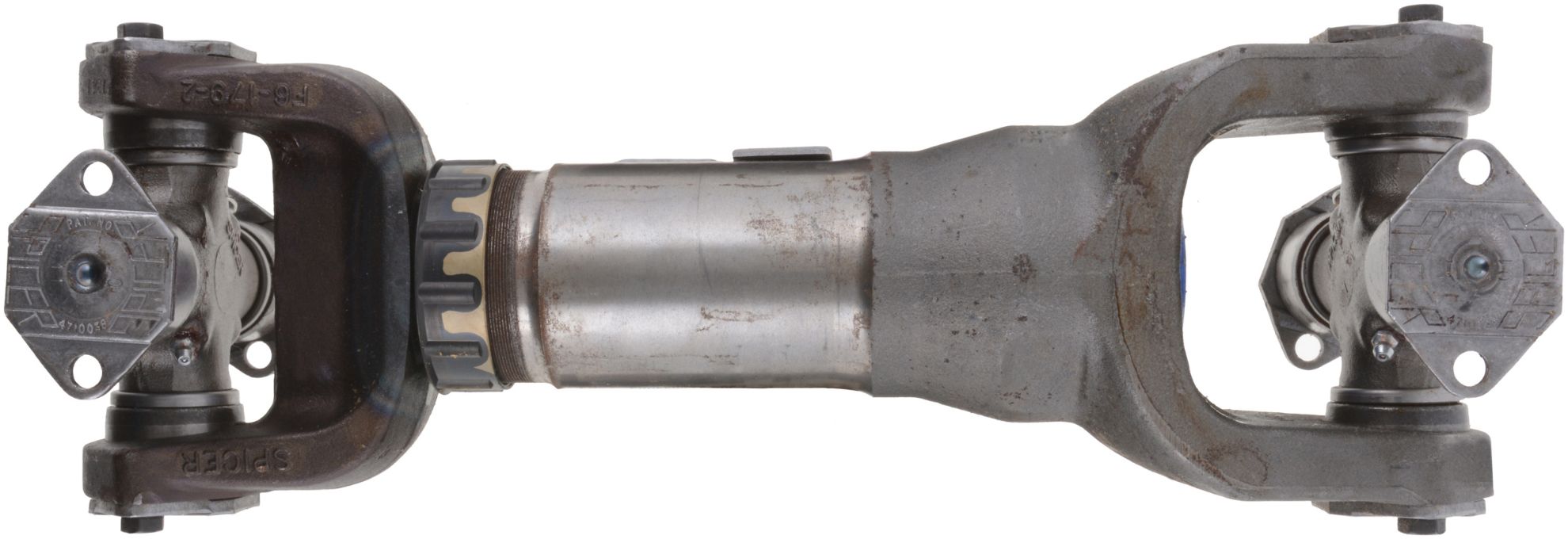

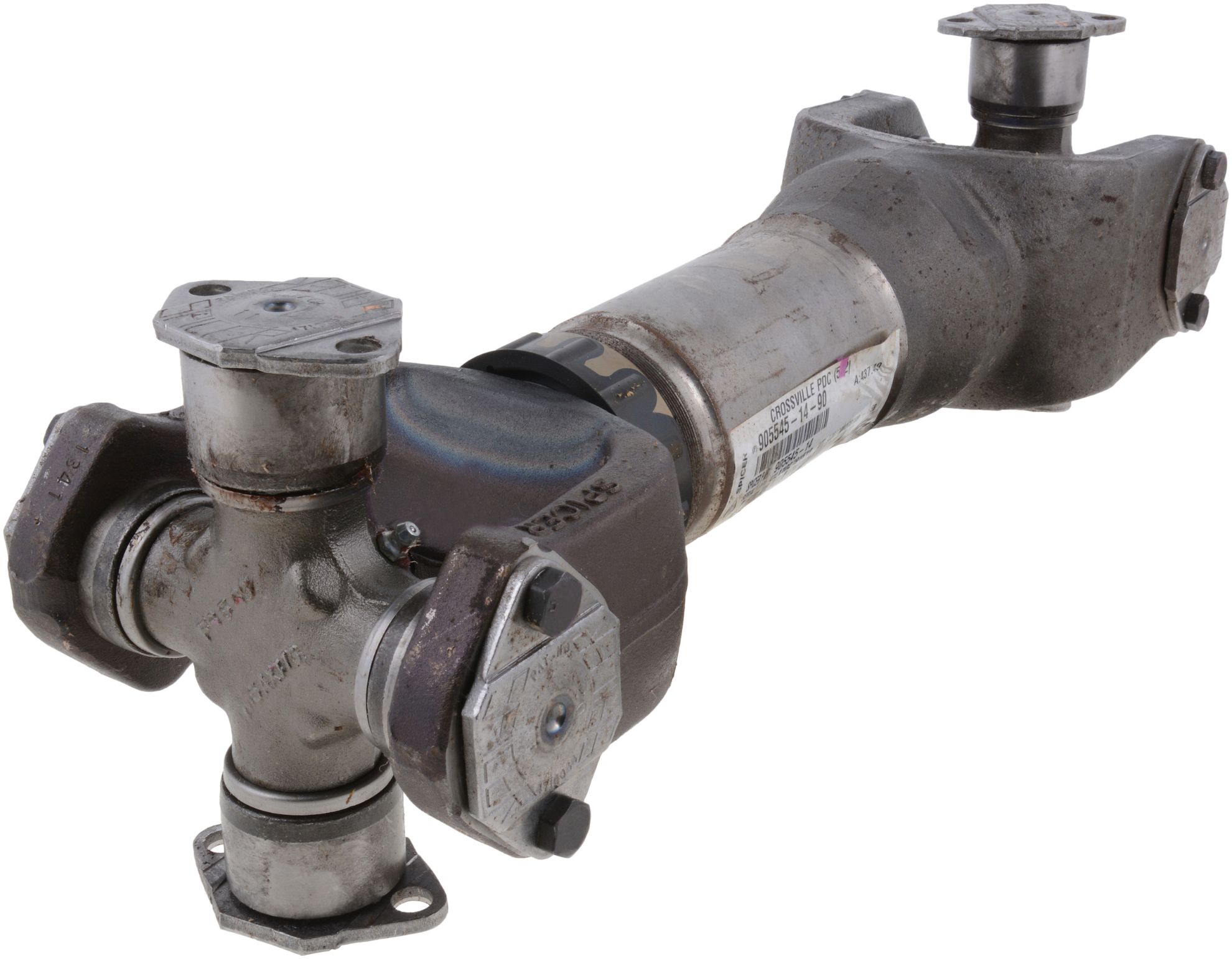

Spicer Drive Shaft - 921608-1

Name: Spicer Drive Shaft - 921608-1
SKU: 921608-1
Availability: InStock

Short Couple Drive Shaft

Manufacturer: Spicer

Manufacturer part number: 921608-1

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1550
Prop 65	NO
Shaft Material	Steel
Max Slip (IN)	1.5000
Max Slip (MM)	38.1000
CL Yoke To CL Yoke (MM) - COLL	177.8000
Mid Slip (MM)	19.0500
Mid Slip (IN)	0.7500
FF(Flange Face) To FF (MM)-COLL	265.1000
Slip Assembly	No
FF(Flange Face) To FF (IN)-COLL	10.4370
Phased (Yes/No)	No
FF(Flange Face) To FF (IN)-INST	11.1870
FF(Flange Face) To FF (MM)-INST	284.1500
1/2 Max Slip (IN)	0.7500
1/2 Max Slip (MM)	19.0500
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Welded
Notes	Short Couple
CL Yoke To CL Yoke (IN) - COLL	7.0000
End 1 Type SJ Side	4-2-1149
CV Joints Included	No
End 2 TJ Side	4-2-1109
CL Yoke To Flange Face (MM)-COLL	227.0000
CL Yoke To Flange Face (MM)-INST	246.0500
CL Yoke To Flange Fac e(IN)-COLL	8.9370
Country of Origin	US
Condition	New
