Spicer Drive Shaft Companion Flange - 2-1-933

Name: Spicer Drive Shaft Companion Flange - 2-1-933
SKU: 2-1-933
Availability: InStock

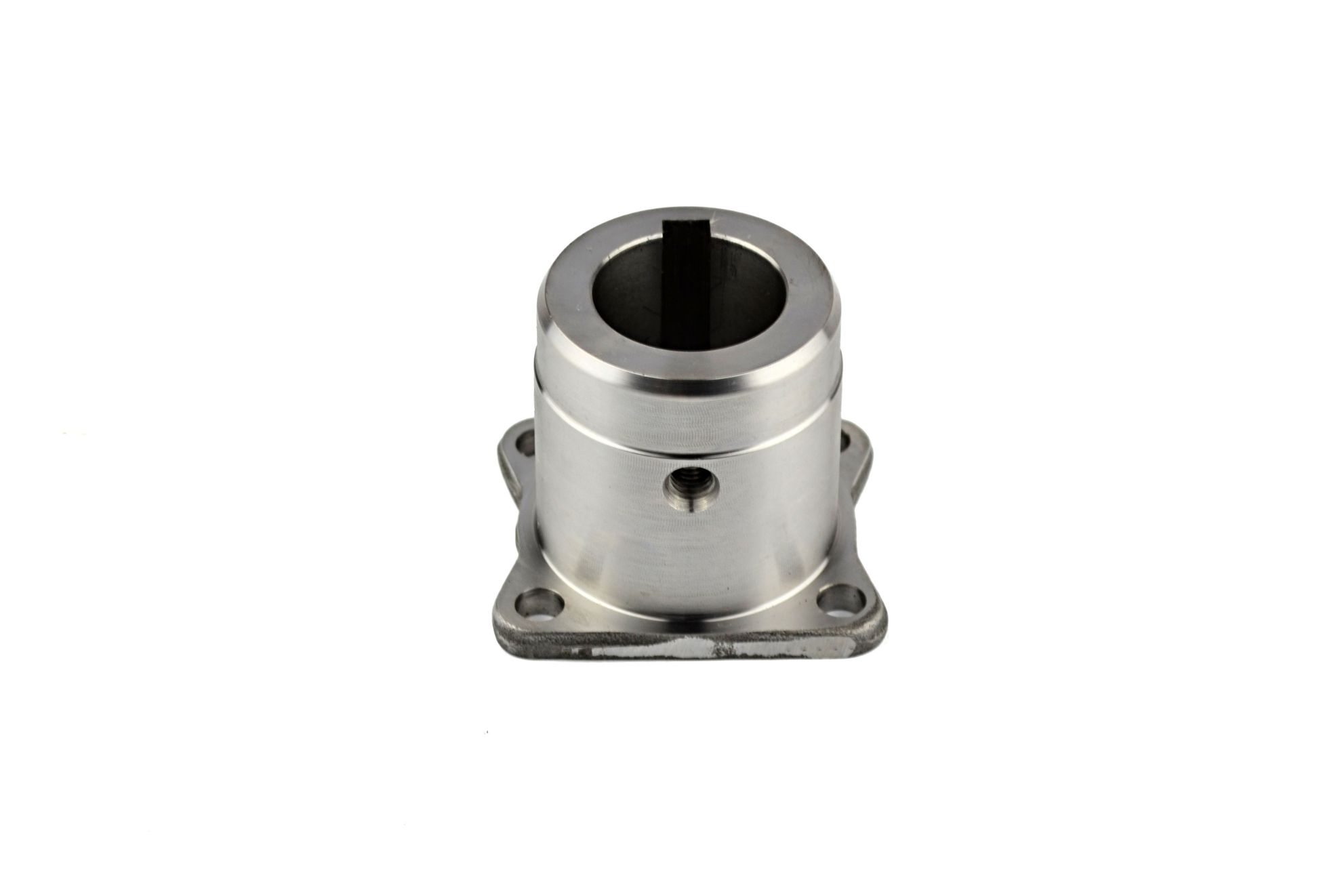

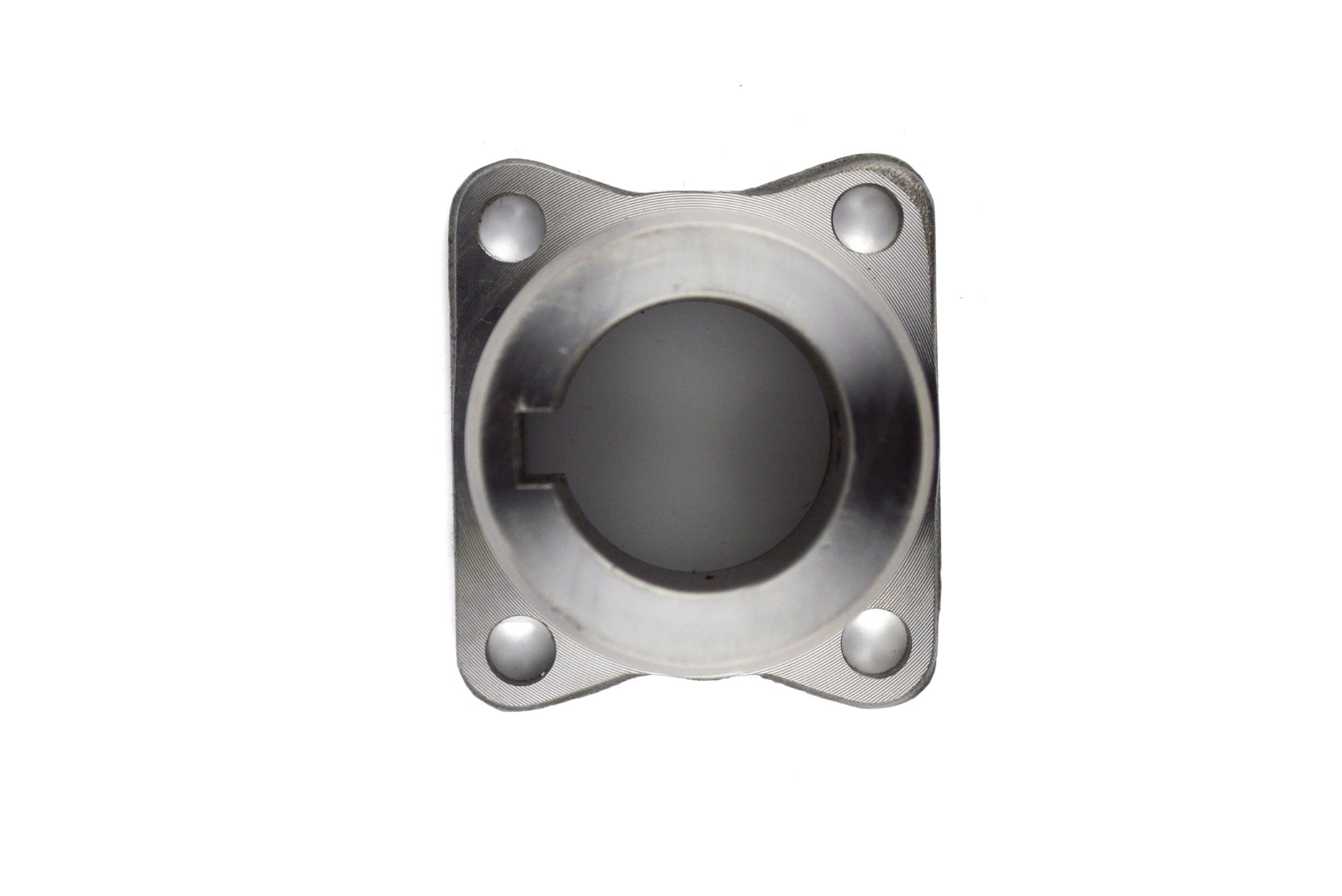

Drive Shaft Companion Flange

Manufacturer: Spicer

Manufacturer part number: 2-1-933

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1310
Material	Steel
Flange Type	Rectangular
Prop 65	NO
Number Of Holes	4
Pilot Diameter (C) In.	2.375 - FEMALE
Bolt Circle Diameter (B) In.	3.125
Actual Hole Diameter (Max)	1.5005
Actual Hole Diameter (Min)	1.4995
Actual Keyway Width (Max)	0.378
Actual Keyway Width (Min)	0.376
Bore Diameter (D) In.	1.500
Circ Flnge Face To End Of Hub	2.625
Flange Width Diameter (A) In.	3.8
Hub Diameter (E) In.	2.438
Key Width (K) In.	0.375
Rect Flnge Face End Of Hub (G)	2.625
Rect Lngth Thru Hole (F)	2.000
Set Loc. ( Hub & Keyway At 12)	6
Set Screw Hole Diameter (In)	0.375
Country of Origin	US
Condition	New
